3 - CONTROLS AND INSTRUMENTS
Hydraulic hose connection
WARNING
Crushing hazard!
Before disconnecting the cylinders or equipment, make sure you adequately support and secure the
equipment or implement.
Failure to comply could result in death or serious injury.
W0243A
WARNING
Escaping uid!
Remote couplers must be properly mounted and securely fastened to the machine mounting bracket
for proper functioning of the safety disconnect feature.
Failure to comply could result in death or serious injury.
W0131A
When connecting hydraulic hoses, follow the instructions
listed below.
•
Loader down/retract cylinder, yellow coupler (1).
•
Loader up/extend cylinder, green coupler (2).
•
Bucket curl/retract cylinder, red coupler (3).
•
Bucket dump/extend cylinder, blue coupler (4).

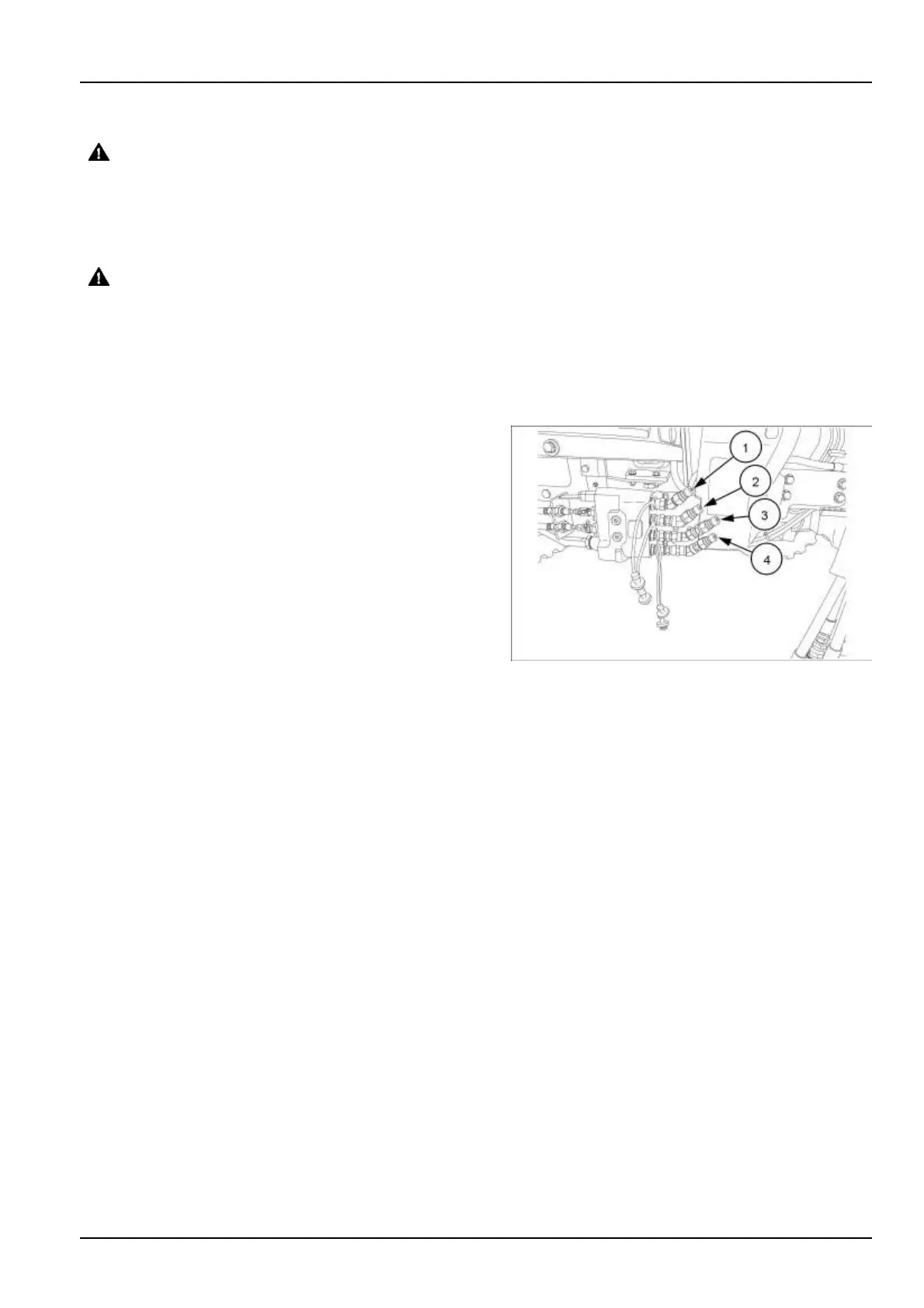

NOTE: Figure 3 shows the dealer installed coupler kit with
front end loader.
NHIL16CT01475FA 3
3-65
