4 - OPERATING INSTRUCTIONS
Park brake
WARNING
Equipment rolling hazard!
Firmly apply the handbrake. Stop the engine before leaving the machine. The transmission will not
prevent the machine from rolling when the engine is shut off.
Failure to comply could result in death or serious injury.
W1144A
NOTICE: Ensure the park brake is fully disengaged before driving the tractor.

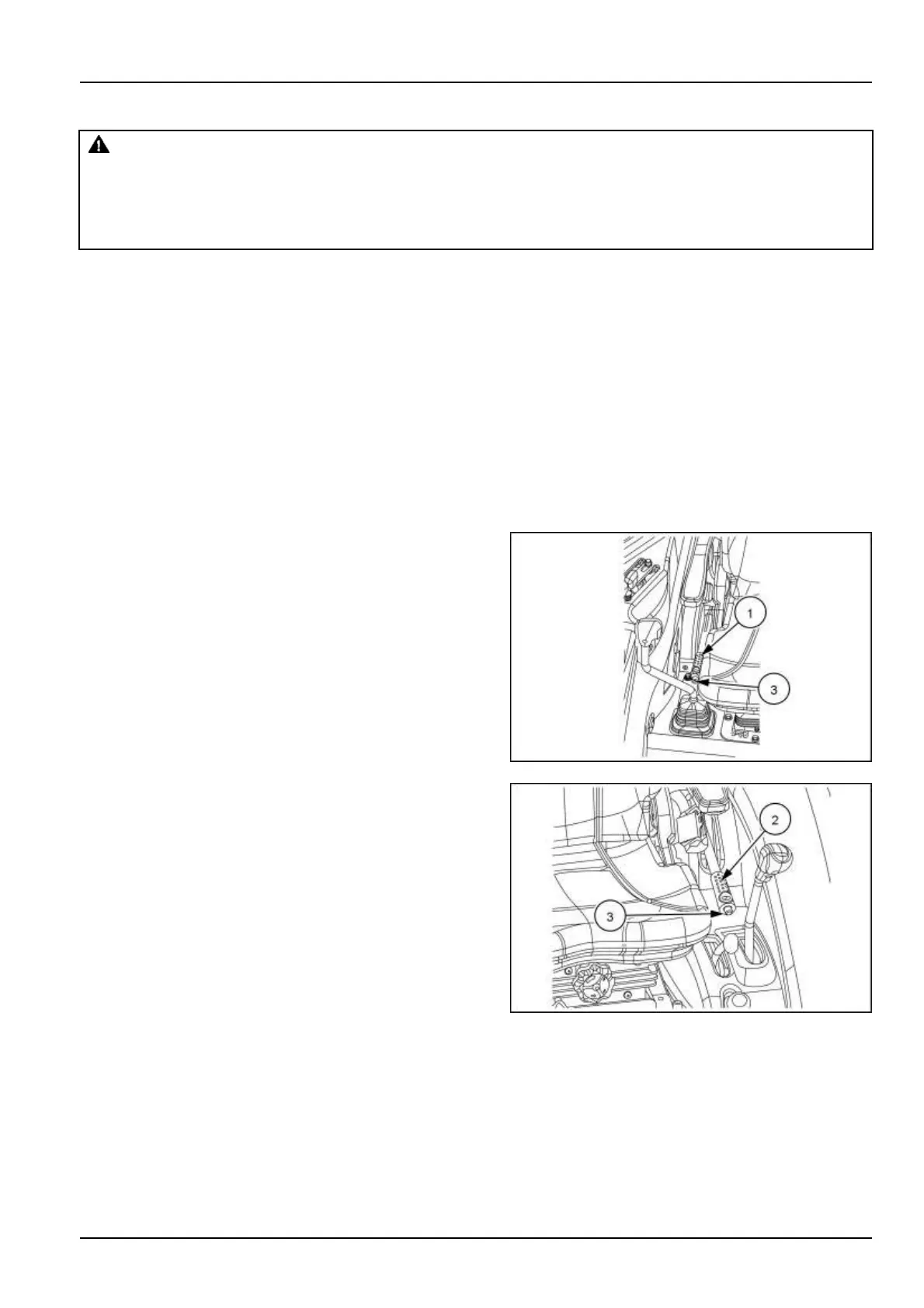

The park brake lever in tractors with a cab, (1) (See gure 3) is located on the right-hand side of the operator’s platform.
On tractors without cabs, the park brake lever is located on the left-hand side of the operator’s platform, (see gure
4). Use the park brake to secure the brake pedals to prevent the tractor from moving while parked.
To engage the park brake, lock the pedals together and pull the park brake lever up while pressing the brake pedals
down.
NOTE: Always engage the park brake when getting off the tractor. If the operator does not engage the park brake, or
the operator leaves the seat without engaging the park brake, an alarm will sound. The alarm will continue to sound
for approximately ten seconds or until the operator engages the park brake.
To disengage the park brake, press the brake pedals down and release the park brake lever by pushing button (3)
inwards and push the lever (1),(with cab) or (2) (without cab) down.
NHIL16CT00419AA 3
NHIL16CT00420AA 4
4-43
