SECTION 2 – CONTROLS, INSTRUMENTS AND OPERATION
2–60

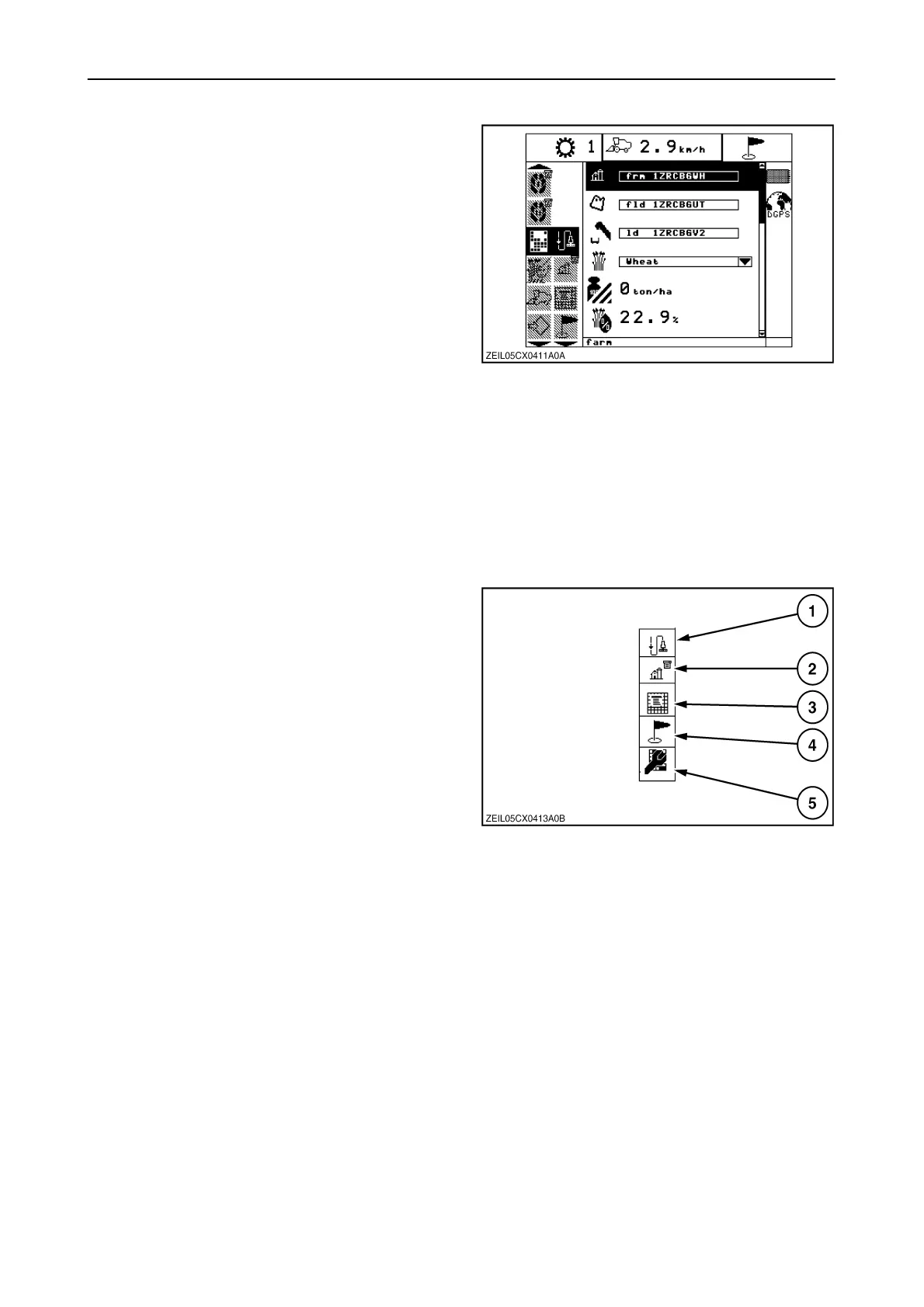

Enter the sub-menu bar by pressing the ”right”
navigation key. The cursor will jump to the sub menu
that was last selected when escaping the sub menu
bar.
The selected sub menu will blink and in the text bar
a description of the selected sub menu is shown.
To select another sub menu, use the ”up” and ”down”
navigation keys. When the navigation keys are not
used for approximately 8 seconds, the selected
symbol will stop blinking and will be inverted until the
navigation keys are used again.
NOTE: Upon system startup, harvest records may be
present on two separate components, the InfoView
flash or the PC data card. The PC card is the primary
data medium. If a PC data card is not detected, the
InfoView flash will allow creation and usage of a
maximum of 10 Farm/Fields and a maximum of 16
Loads.
88
NOTE: While multiple Farms, Fields, and Loads can
be created and used without a PC card inserted, only
the active Farm/Field/Load will be retained on a
power cycle unless a PC card is inserted and allowed
to merge before power down.
The different sub-menus in the harvest information
menu are listed and will always appear in that
sequence.
1. Instantaneous values
2. Select active load (Farm/ Field/ Load)
3. Harvest summary
4. Markers setup
(Only with data logger and (D)GPS installed)
5. Calibration
The Instantaneous values screen displays
information which is specific to the current load
(current data set). It is used for real time feedback
during harvest. The Harvest summary screen
displays information spanning across data sets
(possible multiple loads).
See parameter list below:
89
