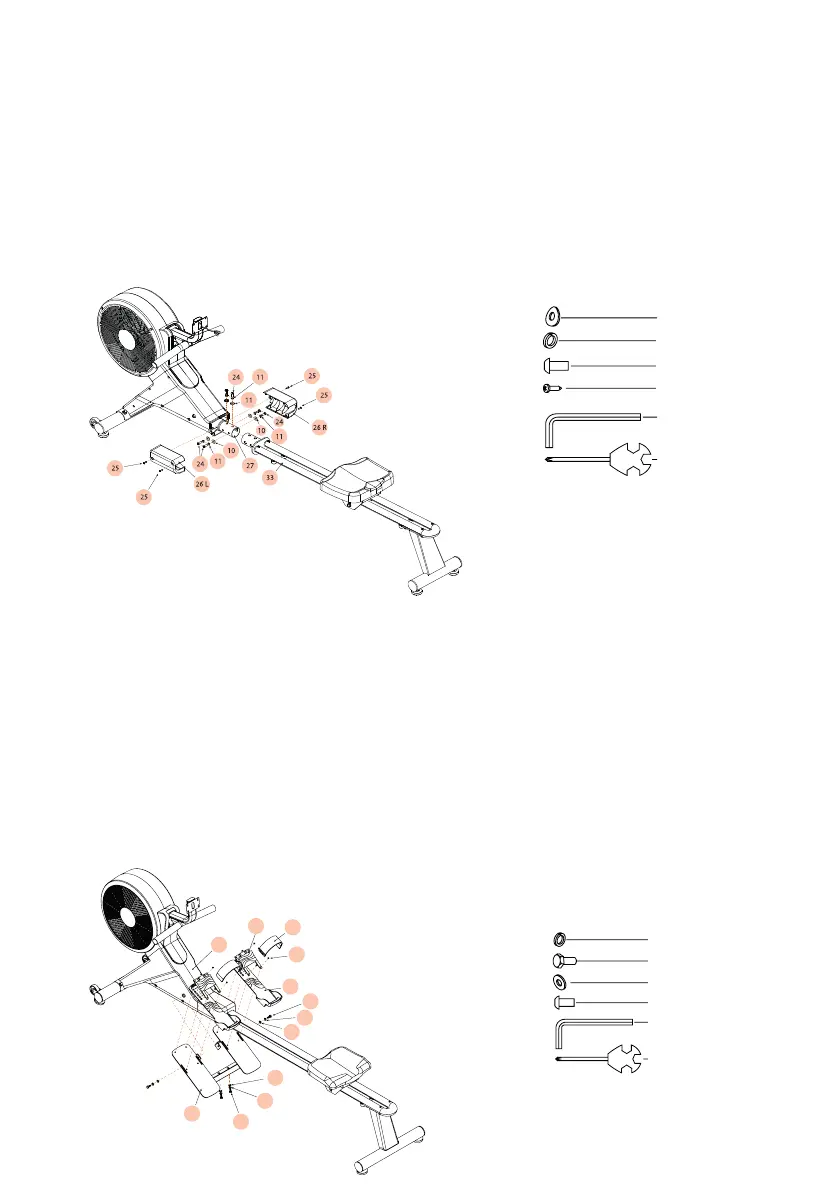

New Image FITT ROW - Assembly: Steps 4 and 5; Attaching Runner Rail and Covers; Mounting Pedal Bracket and Foot Holders

1. Remove arc washers (10), spring washers (11) and M8 screw (24) from main frame (27)
using the supplied Allen Key (A). Then remove the M4 screw (25) from the decoration
cover (26L & 26R) using the Multi Wrench (B)
2. Attach runner rail (33) onto the main frame (27), then fasten them with arc washers
(10), spring washers (11) and M8 screw (24) by Allen Key (A);
3. Fix the decoration cover (26L/R) to the main frame (27) M4 screw (25) by wrench (B).
Step 4
1. Remove the M8 spring washers (11), M8 (22) and M8 washer (23) from main frame
(27) using the Multi wrench (B)
2. Fix the pedal bracket (30) to main frame (27) with spring washers (11), M8 Bolt (22)
and M8 washers (23) by Multi wrench (B)
3. Fix the foot holders (29A) and Foot holder mounts (29B) on to the pedal bracket (30)
with M8 screws (24) using Allen Key (A)
4. The strap (28) should then be placed in the long slot on the pedal bracket (30) and
looped round and secured. Adjust the tightness to suit foot preference.
Step 5
(10) Arc Washer 6pc
(11) Spring Washer 6pc
(24) M8 Screw 6pc
(25) M4 Screw 4pc
(A) #5 Allen Key
(B) Multi wrench
(11) M8 Spring Washer 4pc
(22)M8 Bolt 4pc
(23)M8 Washer 4pc
(24)M8 screw 4pc
(A) Allen Key 1pc
(B) Multi Wrench 1pc
22
11
23
27
22
11
23
24
30
29A
28
29B
