45
CONNECTION TO FIXED WIRING
A double pole switch must be provided no further than 2 metres from the appliance
to the electrical supply.
The appliance should be connected to a DOUBLE POLE SWITCHED FUSED SPUR
OUTLET, similar to that shown in Fig. 10.4.
We recommend that the appliance is connected by a suitably qualified person who will
comply with the IEE and local regulation.

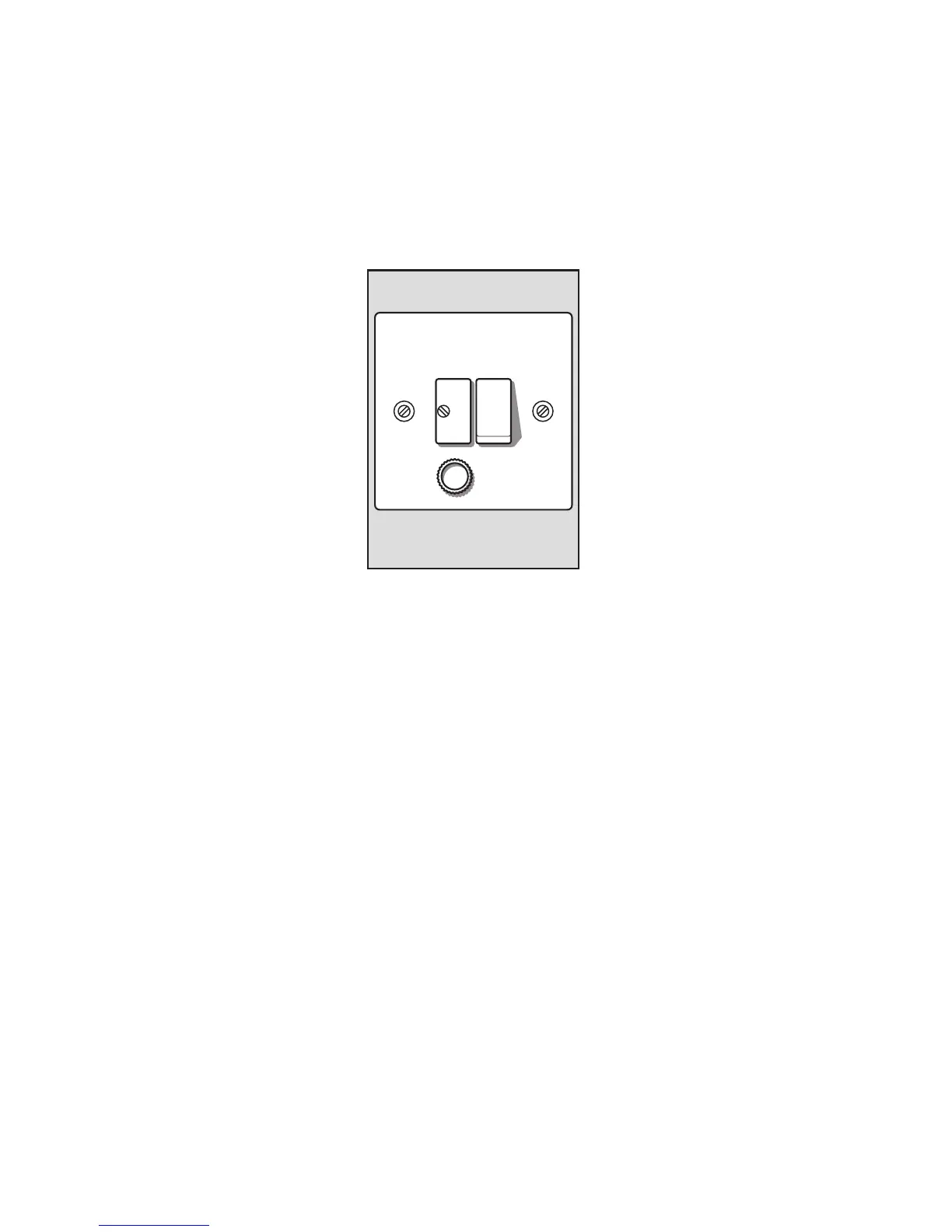

FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
use a SUITABLE FUSE in
accordance with the
appliance power rating.
ON
Fig. 10.4
