16
Mobile Home
Heater
Screened End
Floor Bracket
Stove Board
Floor Joist
Vapour Barrier
Insulation
silicone sealant
non-combustible
Optional seal/caulk with
Outside Air Duct

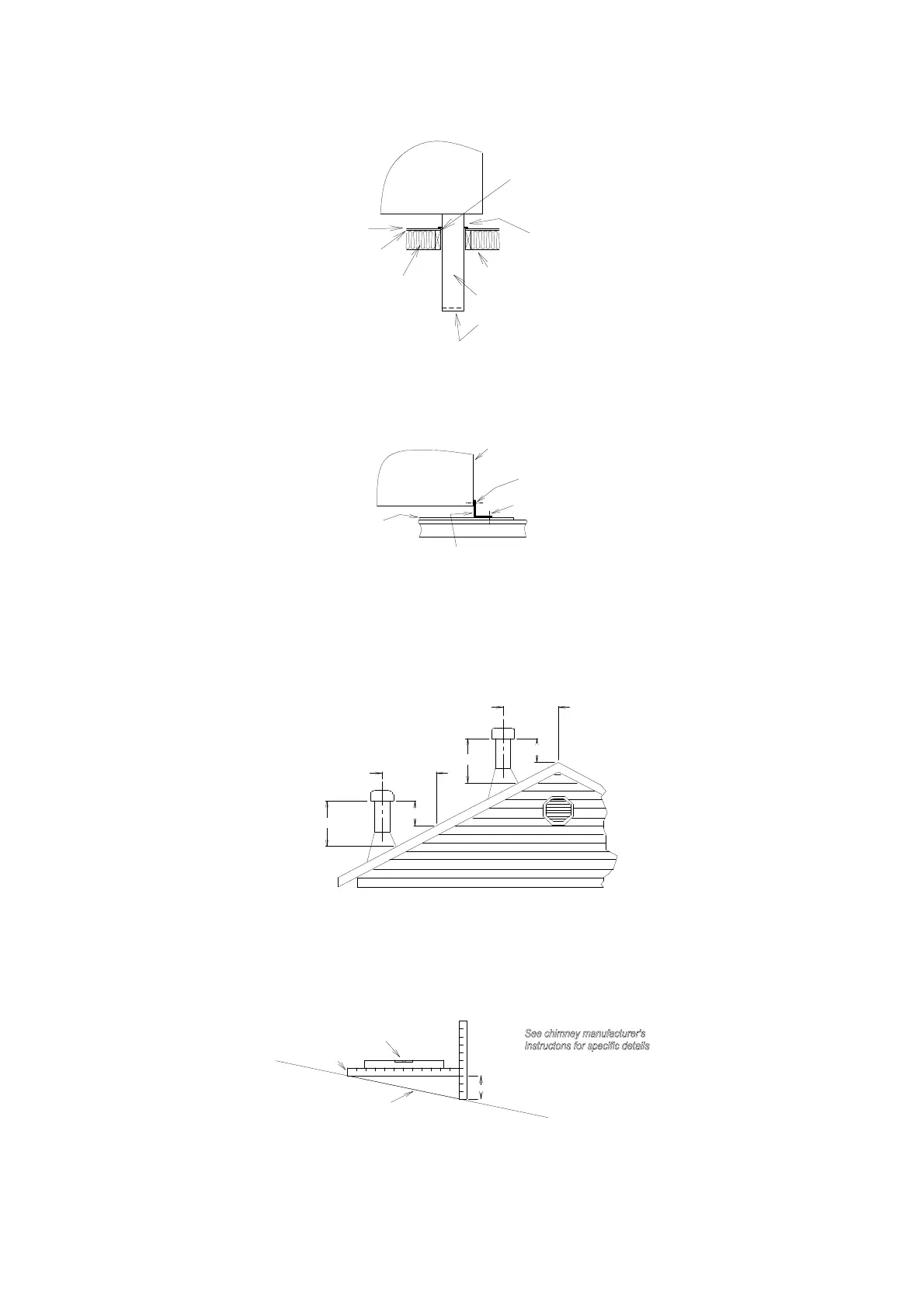

INSTALLATION OF OUTSIDE AIR DUCT AS SEEN FROM SIDE
9. Place heater in position. Be sure to lift heater in front and carefully slide over air duct.
10. Attach floor anchors. Drill 1/8: diameter holes and fasten to rear of heater base and floor with sheet metal screws
(#10 x ¾”).
Mobile Home
Heater
Sheet metal screws
Rear of heater
Wood screws
Steel bracket
Floor
Stoveboard
FLOOR ANCHOR INSTALLATION AS SEEN FROM SIDE
11. Use chimney connector or stovepipe adapter JM586ASE for connecting approved pipe between chimney and cast
flue collar on top of heater.
12. Install chimney length as required.
NOTE: The chimney must be at least 3 feet above the highest point where it passes through the roof of the building
and not less than 2 feet above the highest roof surface or structure within 10 feet horizontally. Not more than 8” of
chimney cap above the top of the flue may be considered in computing this height.
Min 10 ft
Min 3 ft
Min 2 ft
Min 3 ft
0 to 10 ft
Min 2 ft
BASIC RULE FOR CHIMNEY TERMINATION HEIGHTS ABOVE ROOF
13. Install roof flashing (JSC6 ATC, AFA, AF2, or AF3 - USA), (JM6 ATC, F1, or F2 – Canada), storm collar and rain
cap.
a. Ensure that you have the proper roof flashing; check your roof pitch using a level and two rulers.
Level
12" rule
Roof
Pitch 3/12
ROOF PITCH
See the manufacturer’s catalog and instructions for flashing and pitch recommendations.
