Newmac NS220E - Chimney and Fireplace Connection Methods; Masonry Chimney Connection; Masonry Fireplace Connection

7
The crimped end of the chimney connector fits inside the heater flue collar. Additional pipe and elbow should be
installed with CRIMPED END TOWARD THE HEATER. This will let condensation in the flue to run back into the heater.
Chimney connectors must be sealed with furnace cement when installed in a mobile home.
REDUCING EXCESSIVE DRAFT
Where permitted by the regulatory authority a hand operated flue pipe key-damper may be installed.
CONNECTION TO A MASONRY CHIMNEY THROUGH A COMBUSTIBLE WALL
The heater may be connected to a masonry chimney, which conforms to the installation code requirements. Various
methods of connection are shown in these installation codes. Check with your local regulatory authority as to which
methods they will accept. Care must be taken when the chimney connector passes through a combustible wall to
ensure that there is sufficient clearance from the chimney connector to the combustible wall material.

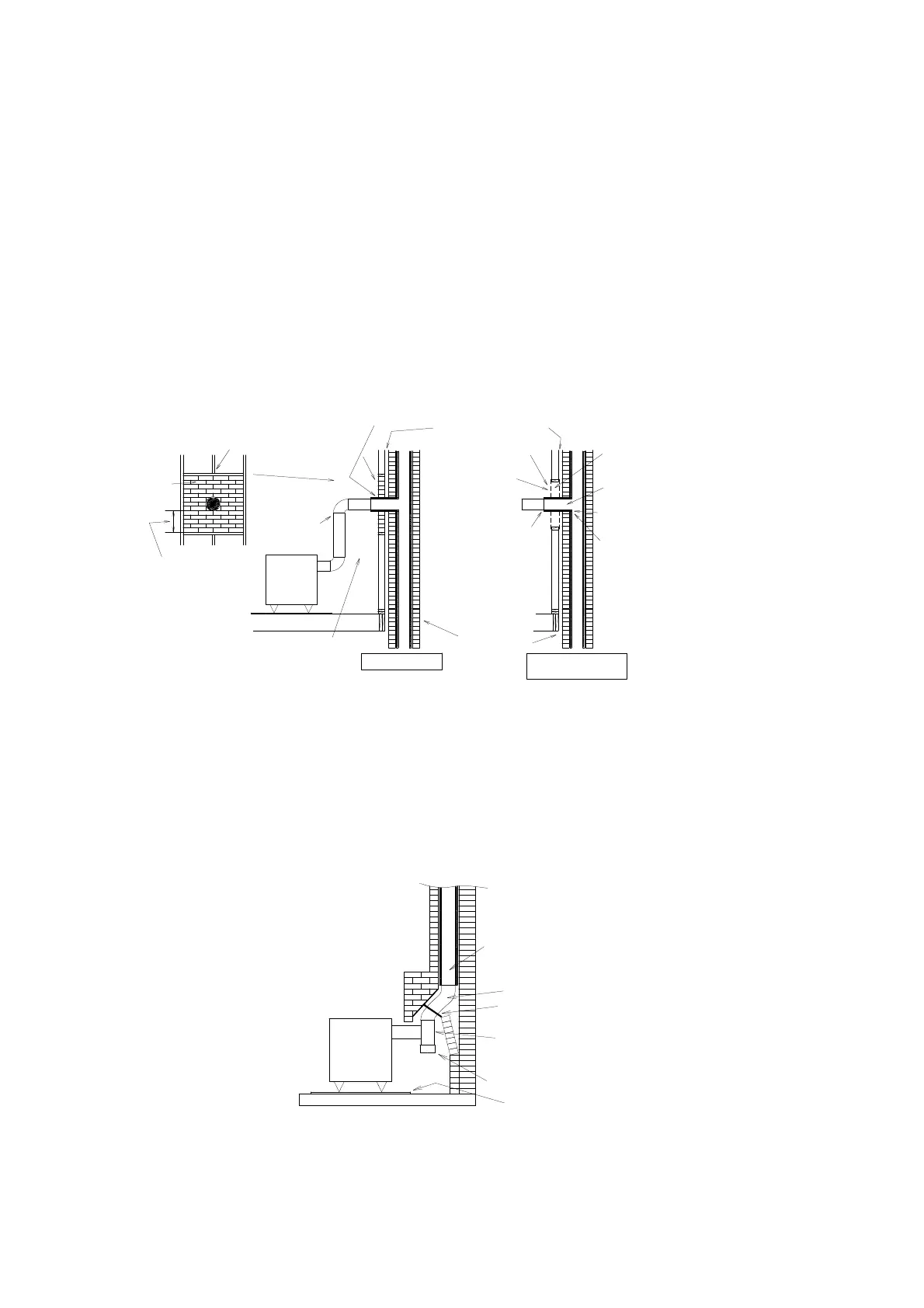

TYPICAL CONNECTION TO A MASONRY CHIMNEY THROUGH A COMBUSTIBLE WALL
CONNECTION THROUGH A MASONRY FIREPLACE
A wood-fired space heater may be connected to a masonry fireplace if:
1. There is a connector that extends from the heater to the flue liner of the fireplace.
2. The cross-sectional area of the flue is no more than three times the cross-sectional area of the flue collar of the
room heater.
3. There is a non-combustible seal below the point of entry of the connector.
4. The installation conforms to the requirements of your local codes (NFPA211 - USA), (B365 – Canada) Check with
your local regulatory authority as to which methods they will accept.
Heater
Connector extends from
appliance to flue-liner
Flow area of flue is not more
than 3x flow area of flue collar
Non-combustible seal
Cleaning and inspection cap
Listed liner section
Stoveboard or pad
TYPICAL FIREPLACE CONNECTION
Heater
Minimum chimney clearance to brick
and combustibles 2in (50mm)
Minimum clearance
12in (305mm) of brick
Chimney connector
Fire clay liner
Masonry chimney
constructed to NFPA 211
Minimum 12in (305mm)
to combustibles
Refractory cement
Stud work
Brickwork
Minimum clearance
9in (230mm)
Chimney connector
Use chimney mfr's parts
to attach connector securely
Sheet steel
supports
Chimney length flush
with inside of flue
Air space
18"
Chimney flue Chimney flue
Refractory cement
Solid-insulated
listed factory-built
chimney length
Using Fire clay liner Using listed factory-built
chimney length
Clearance to combustibles
Single wall vent connector
