8
CONNECTION TO A FACTORY BUILT CHIMNEY
The room heater may be connected to a listed factory–built chimney which complies with the requirements of UL 103HT
(USA) or CAN/ULC S629 (Canada). Check with your local regulatory authority for specific requirements. Follow the
chimney manufacturer’s instructions when installing a factory-built chimney.
Heater
Rain Cap
Chimney section
Storm collar
Roof flashing
Single wall shown
Stove pipe adaptor
Chimney connector
Attic insulation shield
Chimney section
Locking band
Chimney must be enclosed
in living space
Decorator ceiling support
Heater
18"
Rain Cap
Chimney section
Storm collar
Roof flashing
Wall band
Wall Thimble
Adjustable Support
Single wall shown
Stove pipe adaptor
Chimney connector
Clearance to combustibles
Stainless Tee
Firestop
Firestop
Spark ArrestorSpark Arrestor
Spark Arrestor

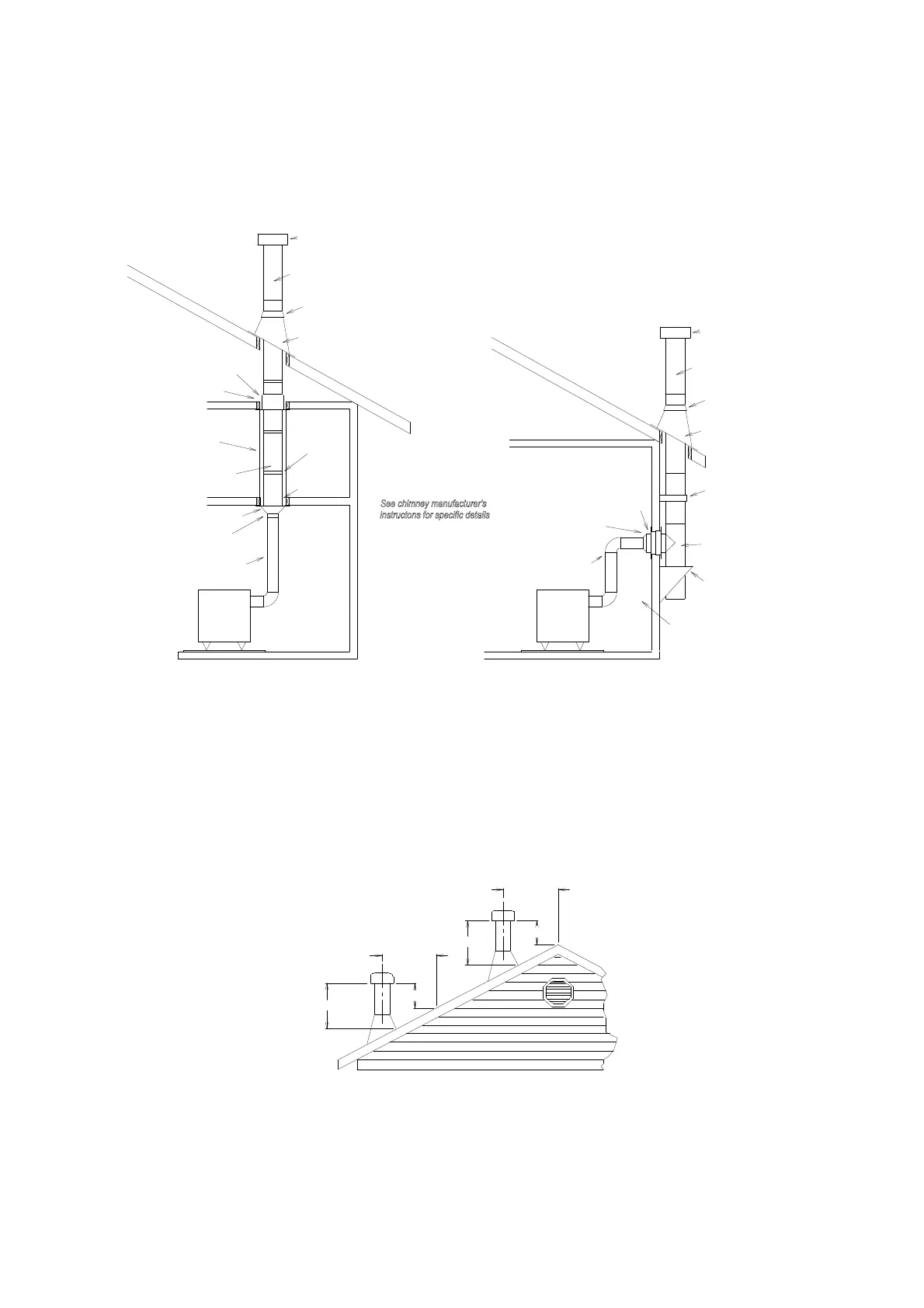

TYPICAL FACTORY BUILT CHIMNEY INSTALLATION
FLUES AND CHIMNEYS – SOME BASIC PRINCIPLES
1. The chimney top should be higher than any other part of the house or any nearby surrounding objects – see
installation code.
NOTE: The chimney must be at least 3 feet above the highest point where it passes through the roof of the building
and not less than 2 feet above the highest roof surface or structure within 10 feet horizontally. Not more than 8” of
chimney cap above the top of the flue may be considered in computing this height.
Min 10 ft
Min 3 ft
Min 2 ft
Min 3 ft
0 to 10 ft
Min 2 ft
BASIC RULE FOR CHIMNEY TERMINATION HEIGHTS ABOVE ROOF
2. A straight chimney is best.
3. A chimney should be smooth on the inside.
4. The flue pipe and chimney should be inspected periodically and cleaned if necessary.
