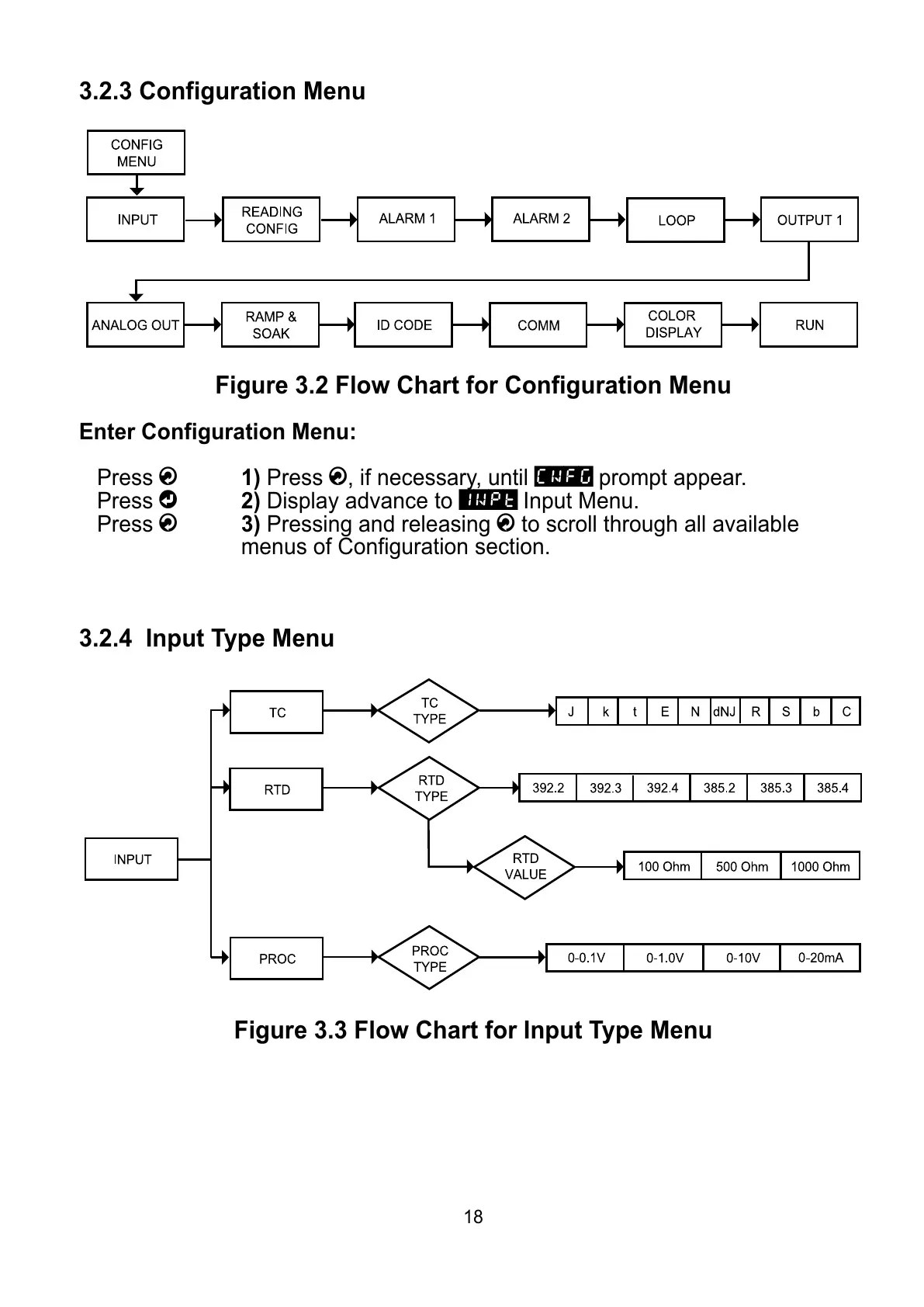

3.2.3 Configuration Menu

Figure 3.2 Flow Chart for Configuration Menu

Enter Configuration Menu:

Press a 1) Press a, if necessary, until

CNFG

prompt appear.

Press d 2) Display advance to

INPT

Input Menu.

Press a 3) Pressing and releasing a to scroll through all available

menus of Configuration section.

3.2.4 Input Type Menu

Figure 3.3 Flow Chart for Input Type Menu

All manuals and user guides at all-guides.com

Table of Contents3
Part 1: Introduction6
Description6
Safety Considerations7
Before You Begin8
Part 2: Setup9
Optional Remote Programmer Front Panel9
Figure 2.1 Optional Remote Programmer Front Panel9
Table 2.1 Optional Remote Programmer Front Panel Annunciators9
Front Panel Connections10
Figure 2.2 Input and Output Connections10
Table 2.2 Connectors10
Electrical Installation11
Power Connections11
Figure 2.3 Main Power Connections11
Table 2.3 Fuse Requirement11
Thermocouple - Input Connection12
Figure 2.4 Thermocouple Wiring Hookup12
Table 2.4 TC Wire Color Chart12
Two / Three / Four Wire RTD-Hookup13
Figure 2.5 Two/Three/Four-Wire RTD A) RTD-1000 Ohm and 500 Ohm Wiring Hookup13
B) RTD-100 Ohm Wiring Hookup13
Process Current - Wiring Hookup14
Process Voltage - Wiring Hookup14
Figure 2.6 Process Current Wiring Hookup (Internal and External Excitation)14
Figure 2.7 Process Voltage Wiring Hookup14
A) with Sensor Excitation14
B) Without Sensor Excitation14
Wiring Outputs - Wiring Hookup15
Figure 2.8 Output Connections: A) Mechanical Relay and SSR Outputs - Wiring Hookup15
B) Pulse Outputs - Wiring Hookup15
Figure 2.9 Isolated Analog Output Wiring Hookup15
Figure 2.10 Snubber Circuits Wiring Hookup16
Figure 2.11 Typical Application16
Figure 2.12 Communication Outputs: A) RS-232 Output - Wiring Hookup17
B) RS-485 Output - Wiring Hookup17
Figure 2.13 Excitation Output17
Part 3: Operation: Configuration Mode18
Introduction18
Table 3.1 Button Function in Configuration Mode18
Menu Configuration19
Figure 3.1 Flow Chart for ID and Set Points Menu19
ID Number20
Set Points21
Configuration Menu22
Input Type Menu22
Figure 3.2 Flow Chart for Configuration Menu22
Figure 3.3 Flow Chart for Input Type Menu22
Input Type (Thermocouple)23
Input Type (RTD)24
Input Type (Process)25
Reading Configuration Menu25
Figure 3.4 Flow Chart for Reading Configuration Menu25
Table 3.2 Conversion Table28
Alarm 1 Menu29
Figure 3.5 Flow Chart for Alarm 1 Menu29
Alarm 2 Menu33
Figure 3.6 Flow Chart for Alarm 2 Menu33
Loop Break Time Menu/Field Calibration34
Figure 3.7 Flow Chart for Loop Break Time/Field Calibration34
Figure 3.8 Flow Chart for Output 1 Menu36
Output 1 Menu37
Analog Output (Retransmission)43
Figure 3.9 Flow Chart for Analog Output Menu43
Ramp and Soak Menu45
Figure 3.10 Flow Chart for Ramp and Soak Menu45
ID Code Menu47
Figure 3.11 Flow Chart for ID Code Menu47
Figure 3.12 Flow Chart for Communication Option Menu49
Communication Options Menu50
Display Color Selection Menu55
Figure 3.13 Flow Chart for Display Color Selection Menu55
Part 4: Specifications58
Part 5: Factory Preset Values63
Table 5.1 Factory Preset Values63
