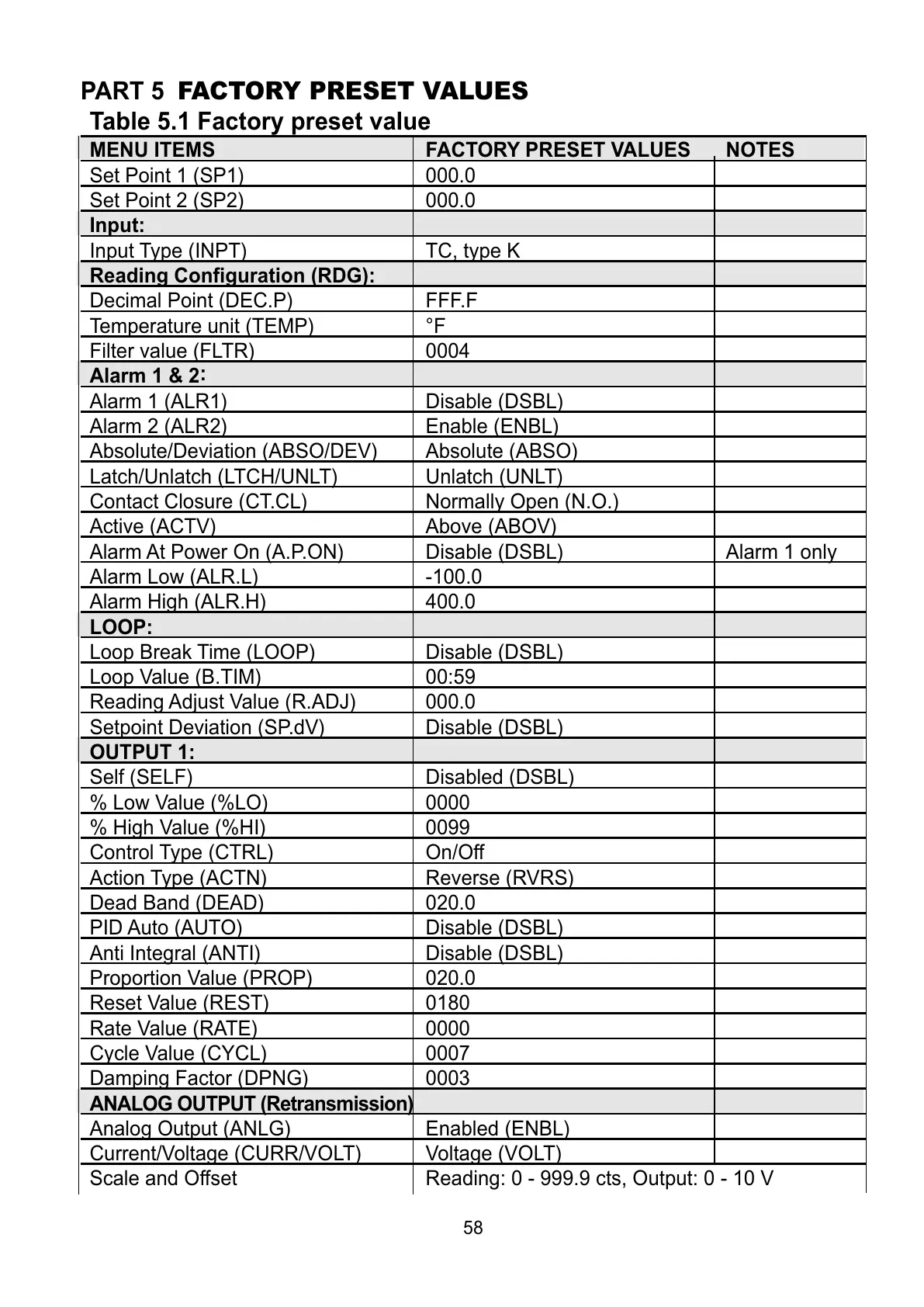

PART 5 FACTORY PRESET VALUES
Table 5.1 Factory preset value
MENU ITEMS FACTORY PRESET VALUES NOTES
Set Point 1 (SP1) 000.0
Set Point 2 (SP2) 000.0
Input:
Input Type (INPT) TC, type K
Reading Configuration (RDG):
Decimal Point (DEC.P) FFF.F
Temperature unit (TEMP) °F
Filter value (FLTR) 0004
Alarm 1 & 2
:
Alarm 1 (ALR1) Disable (DSBL)
Alarm 2 (ALR2) Enable (ENBL)
Absolute/Deviation (ABSO/DEV) Absolute (ABSO)
Latch/Unlatch (LTCH/UNLT) Unlatch (UNLT)
Contact Closure (CT.CL) Normally Open (N.O.)
Active (ACTV) Above (ABOV)
Alarm At Power On (A.P.ON) Disable (DSBL) Alarm 1 only
Alarm Low (ALR.L) -100.0
Alarm High (ALR.H) 400.0
LOOP:
Loop Break Time (LOOP) Disable (DSBL)
Loop Value (B.TIM) 00:59
Reading Adjust Value (R.ADJ) 000.0
Setpoint Deviation (SP.dV) Disable (DSBL)
OUTPUT 1
:
Self (SELF) Disabled (DSBL)
% Low Value (%LO) 0000
% High Value (%HI) 0099
Control Type (CTRL) On/Off
Action Type (ACTN) Reverse (RVRS)
Dead Band (DEAD) 020.0
PID Auto (AUTO) Disable (DSBL)
Anti Integral (ANTI) Disable (DSBL)
Proportion Value (PROP) 020.0
Reset Value (REST) 0180
Rate Value (RATE) 0000
Cycle Value (CYCL) 0007
Damping Factor (DPNG) 0003
ANALOG OUTPUT (Retransmission)
Analog Output (ANLG) Enabled (ENBL)
Current/Voltage (CURR/VOLT) Voltage (VOLT)
Scale and Offset Reading: 0 - 999.9 cts, Output: 0 - 10 V
To Next Page
