3.4 CONNECTING MAIN POWER
Connect the ac main power connections as shown in Figure 3-9.
WARNING: Do not connect ac power to your meter until you have complet-
ed all input and output connections. Failure to do so may result in injury!

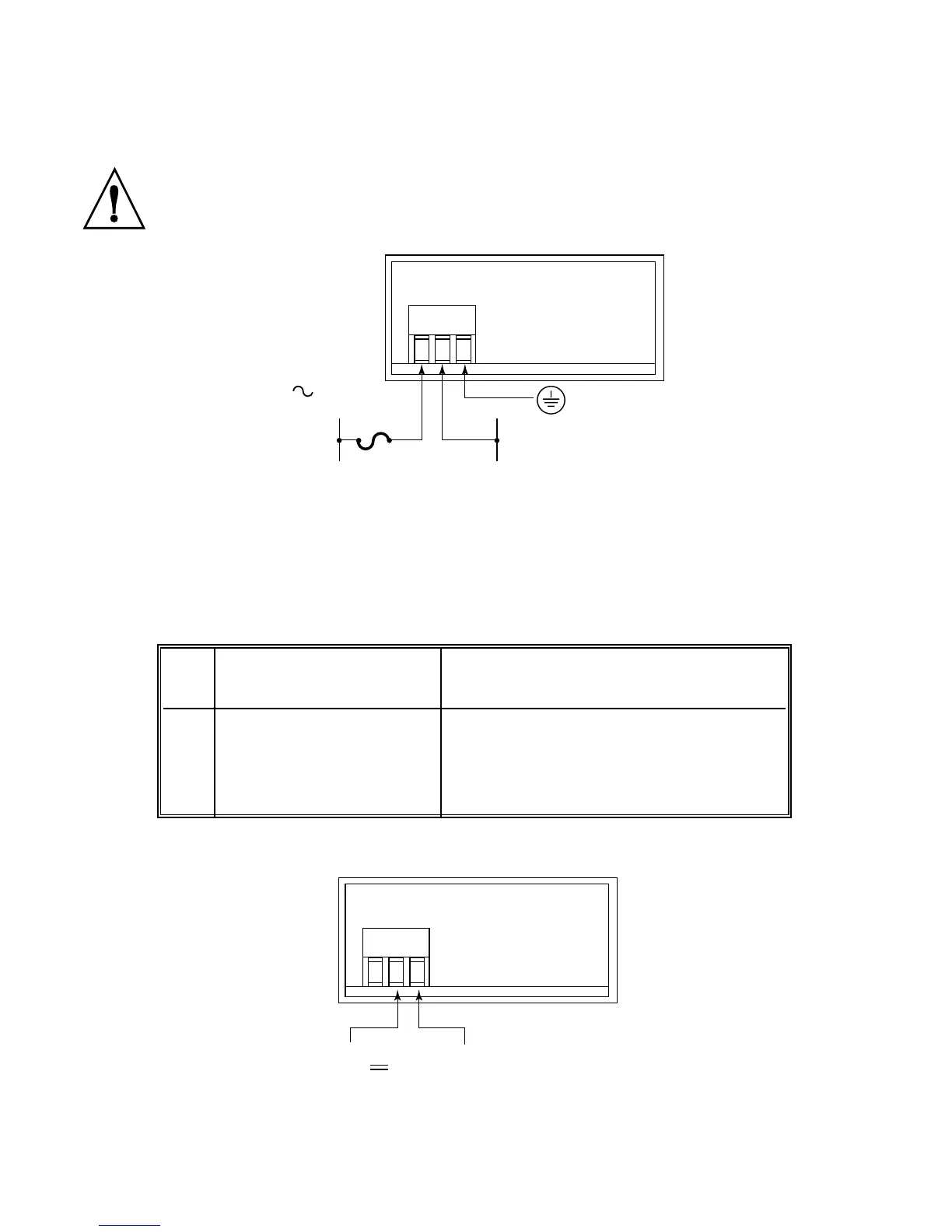

Figure 3-9. Main Power Connections - ac
Table 3-2 shows the wire color and respective terminal connections for both
USA and Europe.
Table 3-2. ac-Power Connections
Connect the dc main power connections as shown in Figure 3-10.
Figure 3-10. Main Power Connections - DC
+ DC
- DC
DC POWER
123
J1
WIRE COLORS
J1 AC POWER EUROPE USA
1 ~ ac Line Brown Black
2 ~ ac Neutral Blue White
3 ~ ac Earth Ground Green/Yellow Green
Line Neutral
AC Power
123
FUSE
Earth
Ground
J1
12
