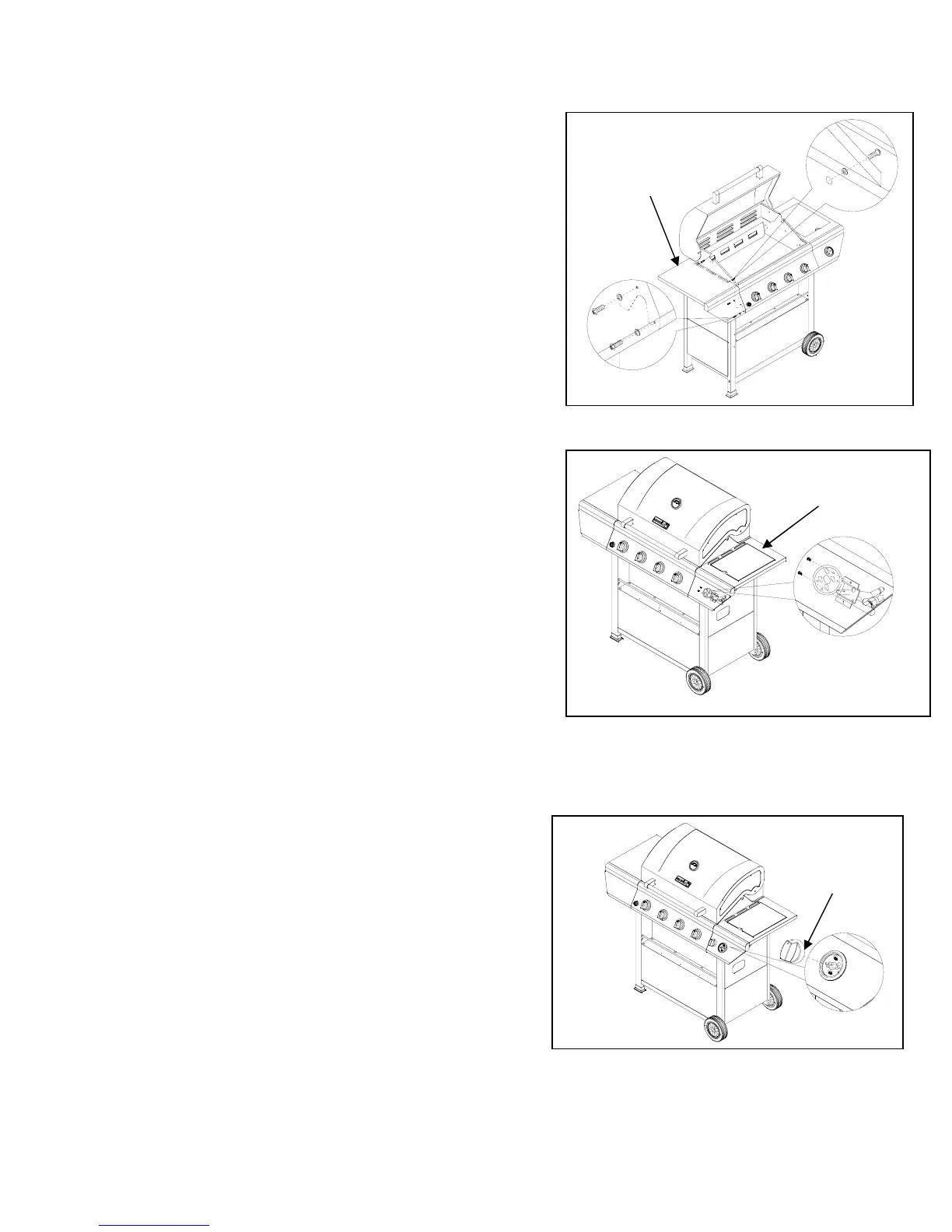

Fig. 15
12. Left Side Shelf Assembly
E
Repeat Step 11 to assemble Left Side Shelf (E). As
shown in Fig. 15.
Fig. 16
13. Side Burner Valve Installation
a) Insert the side burner valve into the Side Burner Shelf
Control Panel (D). Align the screws on the valve with
the large side of the holes on the bezel. Slightly loosen
the screws without removing the screws. Slide the screws
down to the smaller holes and tighten the screws to secure.
D
As shown in Fig. 16.
b) Insert Side Burner Control Knob (M) onto
Fig. 17
the valve stem. As shown in Fig. 17.
M
