Item On display Name Function
9
Motion Sensor Detects motion
10
LED Display Displays the current status of the controller
11
Programmable Port Enables upload of parameters using a dongle
1.3 Overall dimensions

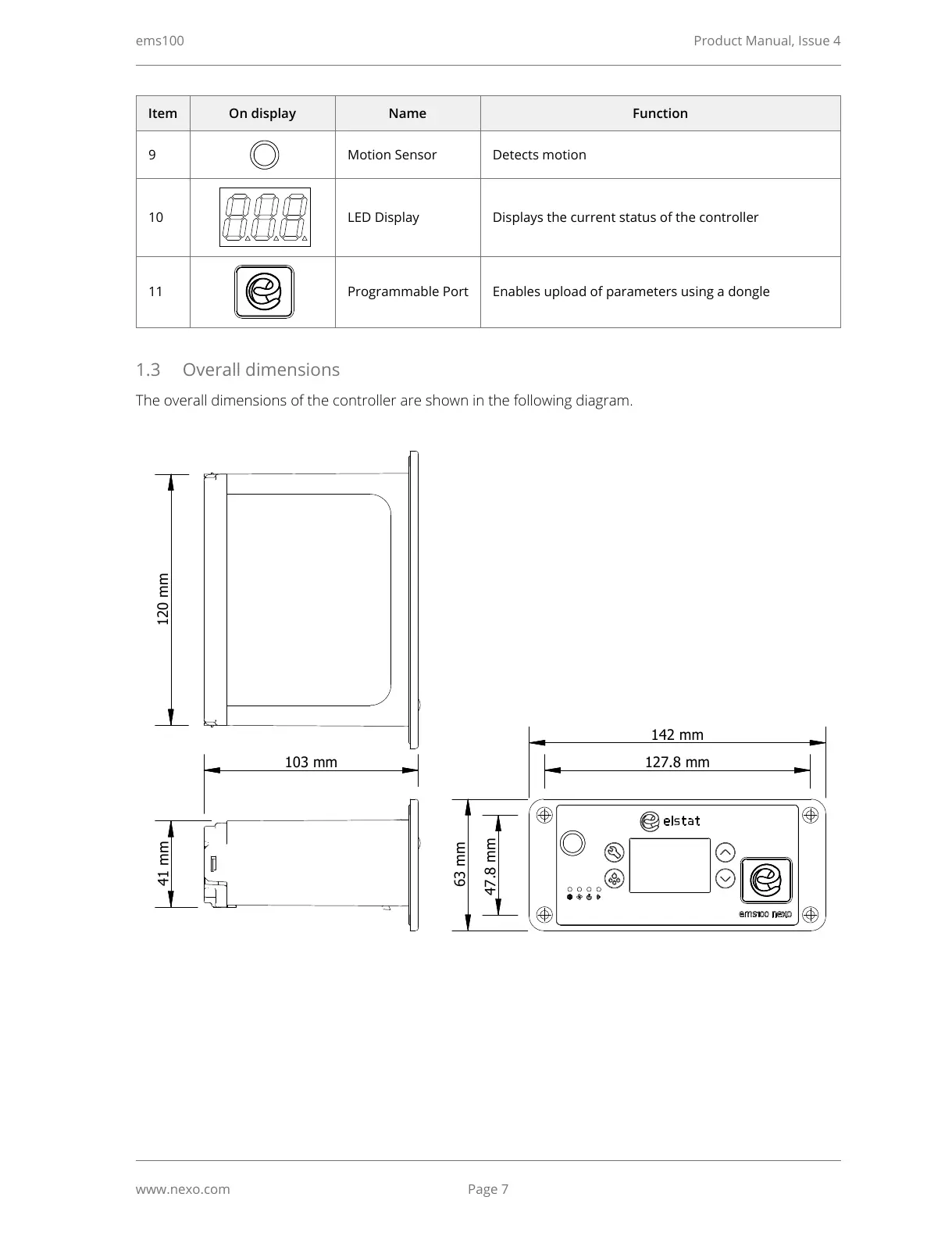

The overall dimensions of the controller are shown in the following diagram.
142 mm
127.8 mm
4
7
.
8
m
m
6
3
m
m
1
2
0
m
m
4
1
m
m
103 mm
