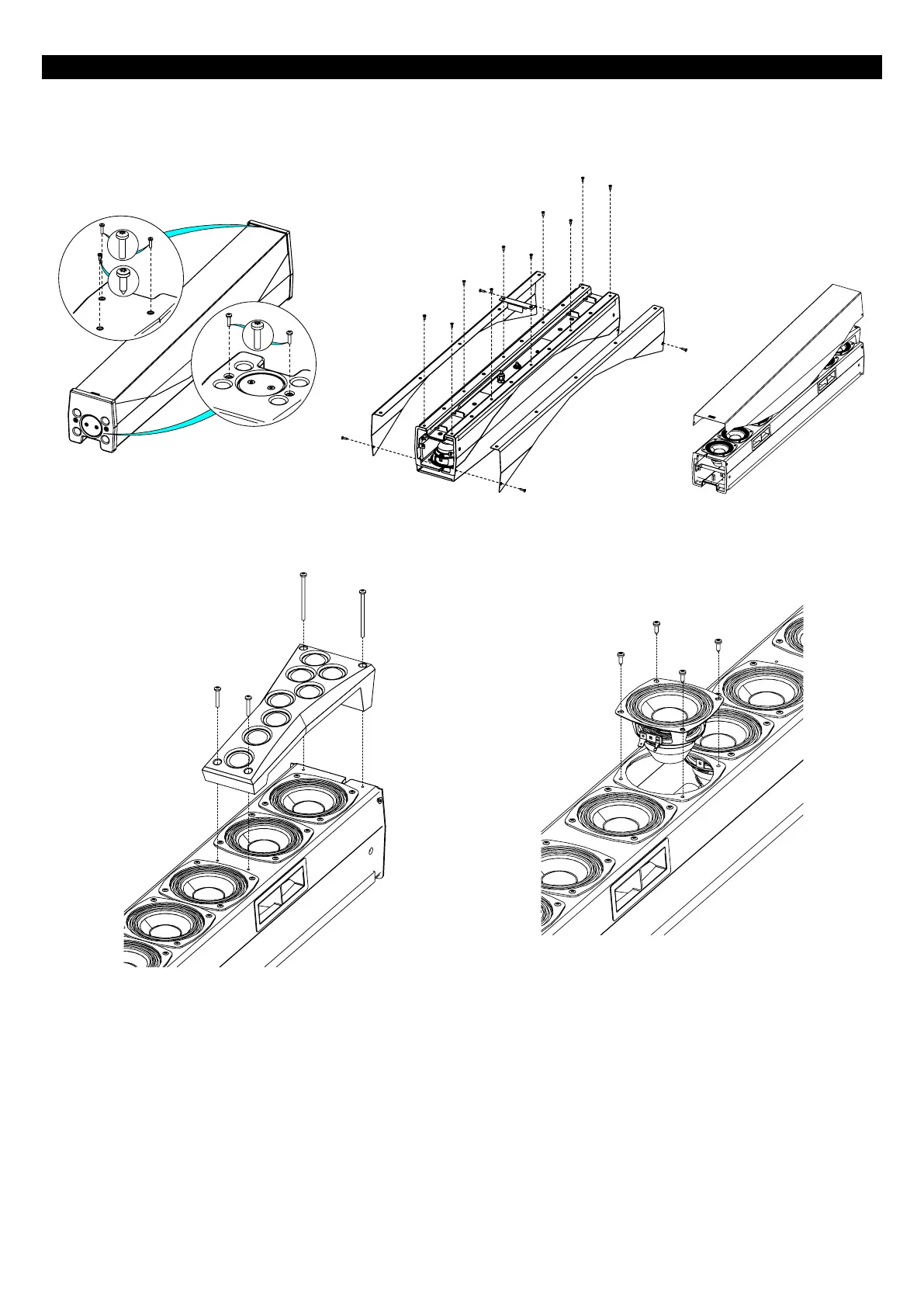

Driver access
Remove the top cover (3 screws) and the
bottom cover (2 screws). Tx 15 – 20
Tightening torque : 1.5Nm
Remove the 14 screws and the both sides plates. Tx 20. Tightening torque : 2.0Nm
Carefully, remove the grille.
Remove the 4 screws and the RJ45 connector.
Remove the HF assembly. Tx20
Tightening torque : 1.2Nm
Remove the 4 screws to access the 4-inch driver. Tx15
Tightening torque : 1.0Nm
