DESCRIPTION
Page 6 / 20 ID84
DESCRIPTION
→ ID84 is a column speaker, 2 ways passive
→ ID84L is a column extension speaker, increase directivity control in LF
→ Versions
• ID84 / ID84L: for Touring Application; black, white
• ID84-TIS / ID84L-TIS: for Touring Application, with Installation grille; black, white
• ID84-I / ID84L-I: for Permanent Installation; black, white
→ ID84 Dispersion:
• Horizontal: 100°
• Vertical: +0°/-10° or +0°/-25°. Switch on the back
→ ID84 can be used alone or with ID84L and/or IDS312 subwoofer

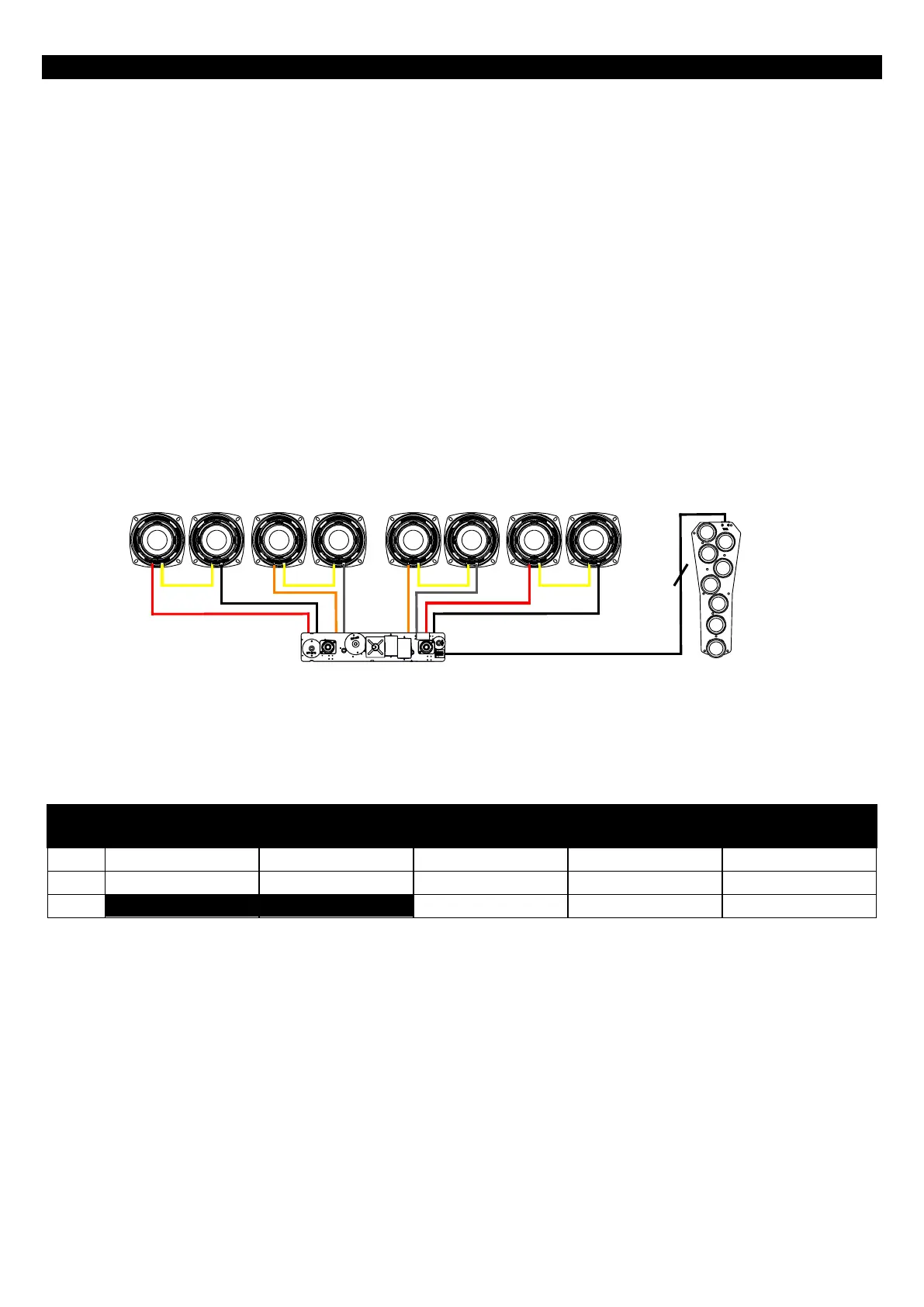

→ ID84 / ID84-TIS / ID84L and ID84L-TIS are equipped with two NL4 connectors with parallel-wired pins. ID84 / ID84-TIS have
a quick connect in the base cover to be connected with IDS312 / IDS312-TIS.
ID84 / ID84-TIS use 2+/2-. The 1+/1- pins are used by the sub.
ID84L and ID84L-TIS use 1+/1-.
ID84-I and ID84L-I are equipped with a cable gland M16 (clamping range, Ø 5 to 12 mm), supplied with a fixed cable 2x 1.5
mm
2
section, length 2m, outside diameter 8mm ±1 mm
→ Amplification
• ID84/ID84L speakers must be used with a NEXO processor to handle EQ, phase alignment, crossover and
excursion/thermal protection for the system loudspeaker.
• The following table shows the number of OD84, ID84L speakers and IDS312 subwoofers usable with each solution.
