Nexo NXAMPmk2 Series Quick Start Guide

Thermal dissipation and current drawn
NXAMP4x1mk2 with 2 Ohms load on each channel
Line Current (A)
Watts
Dissi-
pated
Thermal
Dissipation
120 V 230 V BTU/h kcal/h
Idle 1.5 A 1.0 A 161 W 549 138
1/8 Max
power
8.9 A 4.9 A 397 W 1355 341
1/4 Max
power
16 A 8.5 A 592 W 2020 509
NXAMP4x4mk2 with 2 Ohms load on each channel
Line Current (A)
Watts
Dissi-
pated
Thermal
Dissipation
120 V 230 V BTU/h kcal/h
Idle 2.7 A 1.9 A 270 W 921 232
1/8 Max
power
28.0 A 14.6 A 1037 W 3539 892
1/4 Max
power
53.9 A 26.5 A 1771 W 6044 1523

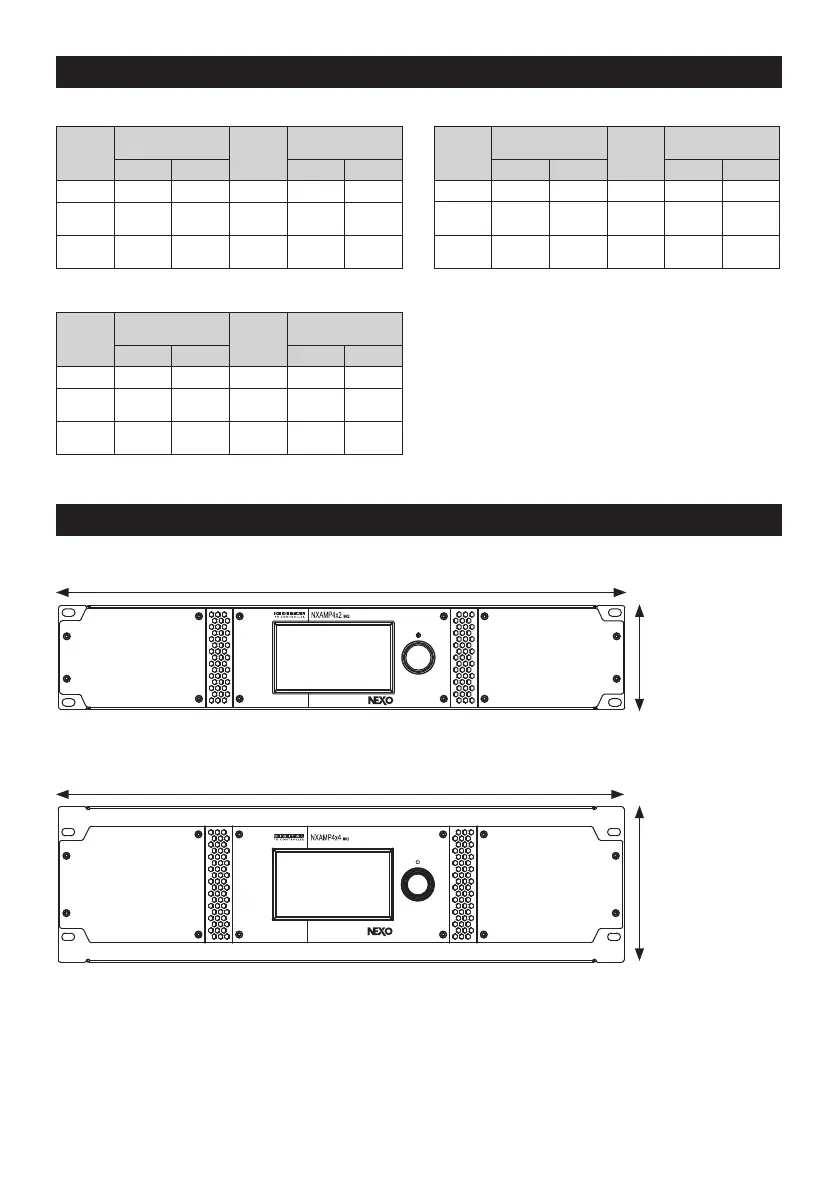

Drawings and dimensions
NXAMP4x1mk2 and NXAMP4x2mk2
480 mm
480 mm
88 mm
132 mm
NXAMP4x2mk2 with 2 Ohms load on each channel
Line Current (A)
Watts
Dissi-
pated
Thermal
Dissipation
120 V 230 V BTU/h kcal/h
Idle 1.8 A 1.1 A 190 W 648 163
1/8 Max
power
15.7 A 8.2 A 607 W 2072 522
1/4 Max
power
29.1 A 14.5 A 980 W 3344 843
NXAMP4x4mk2
nxampmk2_en_um.indb 43 2019/03/01 14:32:40

Nexo NXAMPmk2 Series Specifications

General

Brand	Nexo
Model	NXAMPmk2 Series
Category	Controller
Language	English
