Page 12/58 RS15 GENERAL INSTRUCTIONS
INSTALLING RS15 FLYING PLATES AND HANDLES
2.2.3 RS15 Wheels
• Tools: HEXE #13
• Remove the four screws on RS15 back panel;
• Fill each screw hole with Loctite 243 or equivalent;

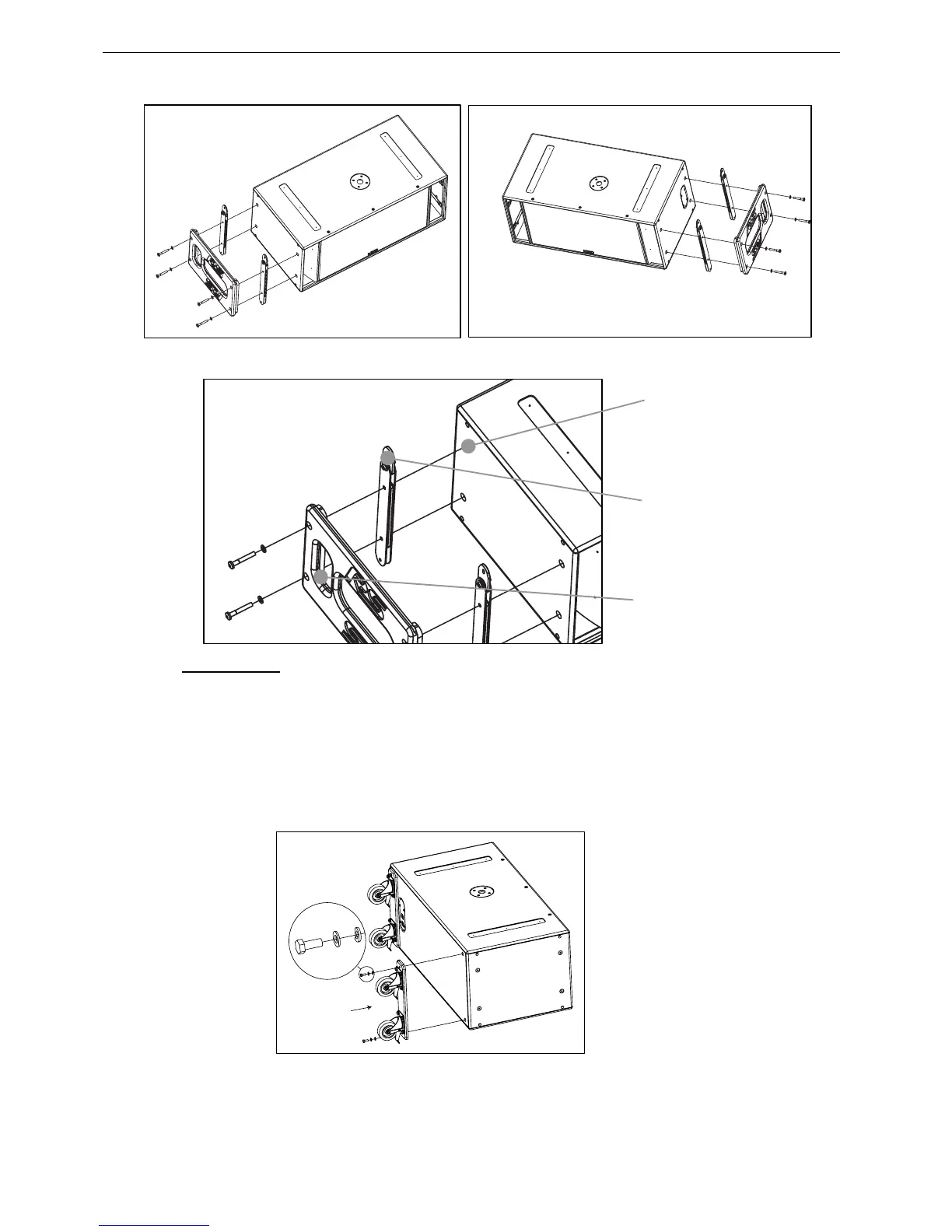

• Position wheels according to below drawing;
• Insert the 8 washers and 4 screws provided with the RS15-WHEEL kit (see detail in below
drawing) and tight them.
Holes to be filled
with Loctite 243
Link Bars going
upwards opposite
to skids
Vertical Openings
opposite to
loudspeakers
