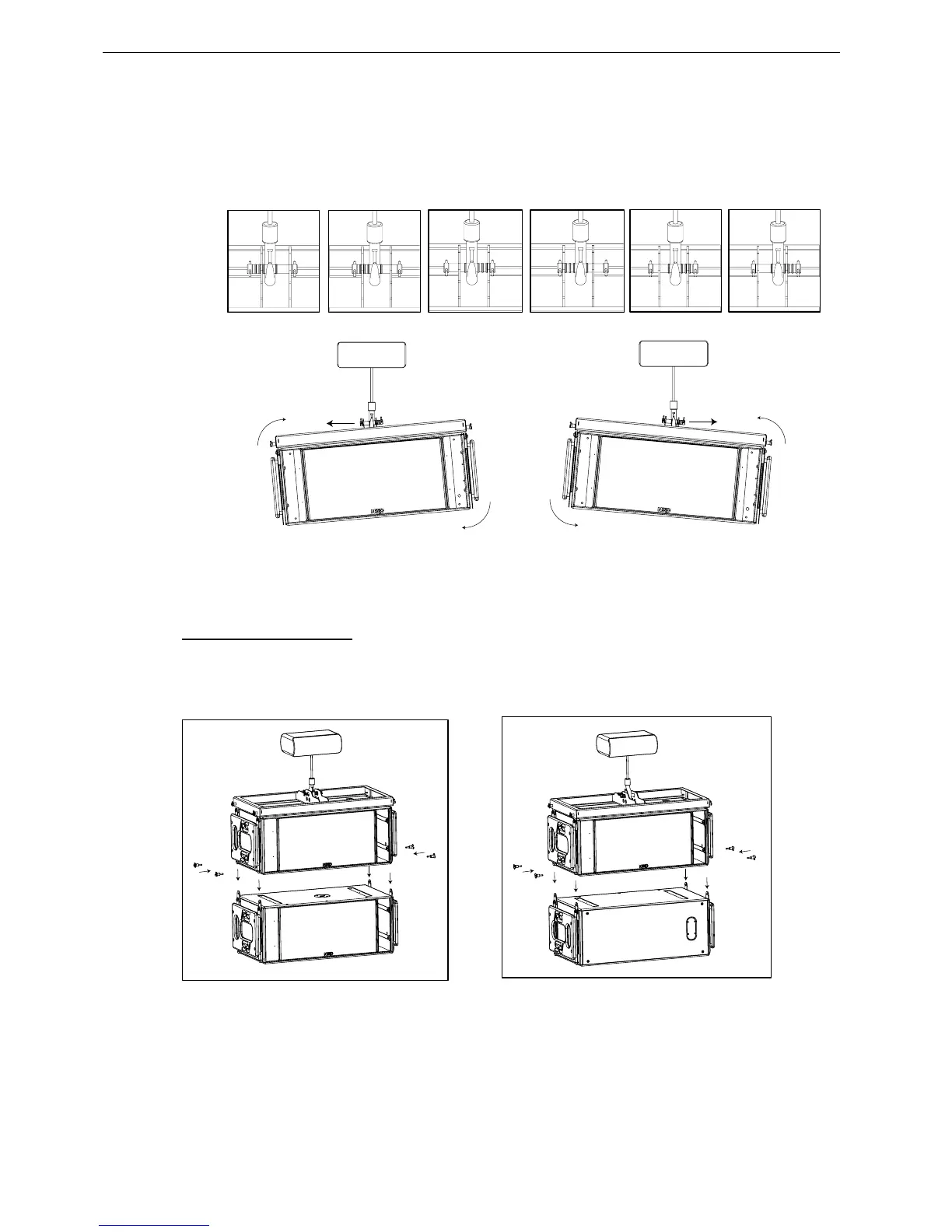

Page 30/58 RS15 RIGGING INSTRUCTIONS
Adjusting 0° along the cabinet width
Adjusting horizontality along cabinet depth is done by properly adjusting the bumper axis as described
in drawings below:
Do not forget to secure the axis with “R” clips once horizontality is achieved. Assembly is now ready for
second RS15 connection.
6.2.4 Flying the second RS15
• Lift assembly to sufficient height in order to connect a second RS15;
• Connect second RS15 to first RS15 flying system link plates; ensure quick release pins are
properly locked;
OMNI MODE DIRECTIONAL MODE / ALTERNATE
DIRECTIONAL MODE / BACK TO BACK /
DIRECTIONAL MODE / FACE TO FACE
