RS HARDWARE SETUP PROCEDURE
System Manual RS Series Page 35 / 76
Adjusting rigging point for horizontality
Before connecting a second cabinet, bumper angle has to be adjusted for perfect horizontality.
This requires that the rigging point is adjusted in the two horizontal directions so that the bumper remains horizontal within +/-
1°. Adding cabinets will improve this tolerance.
• Adjusting 0° along the cabinet depth

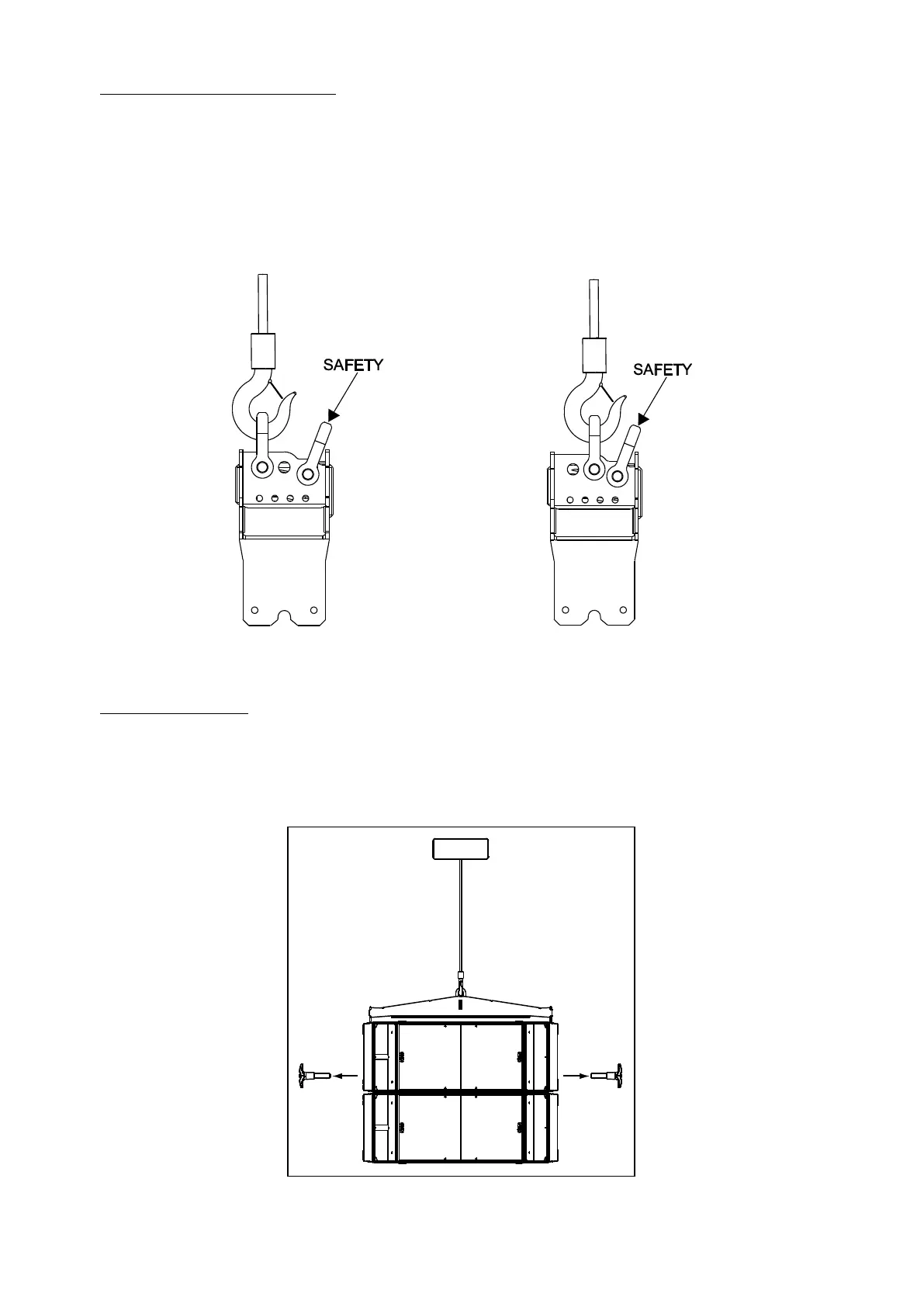

Adjusting horizontality along cabinet depth is done by properly selecting bumper hole:
OMNI MODE - GRIDS SAME SIDE CARDIO MODE – GRIDS ALTERNATED
Flying the second RS18
- Lift assembly to sufficient height in order to connect a second RS18
- Position and align second RS18 below assembly
- Remove the 4 quick release pins from the PARKING position so that sliding connector plate can be moved
