RS HARDWARE SETUP PROCEDURE
System Manual RS Series Page 21 / 76
5.2.5 RS15 Dolly
IMPORTANT
Transporting RS15 on Dolly requires that flying plates are installed on ALL CABINETS so that RS15’s can
be secured together.
RS15 Dolly is designed for up to 3 RS15’s and bumper. Never exceed these quantities.

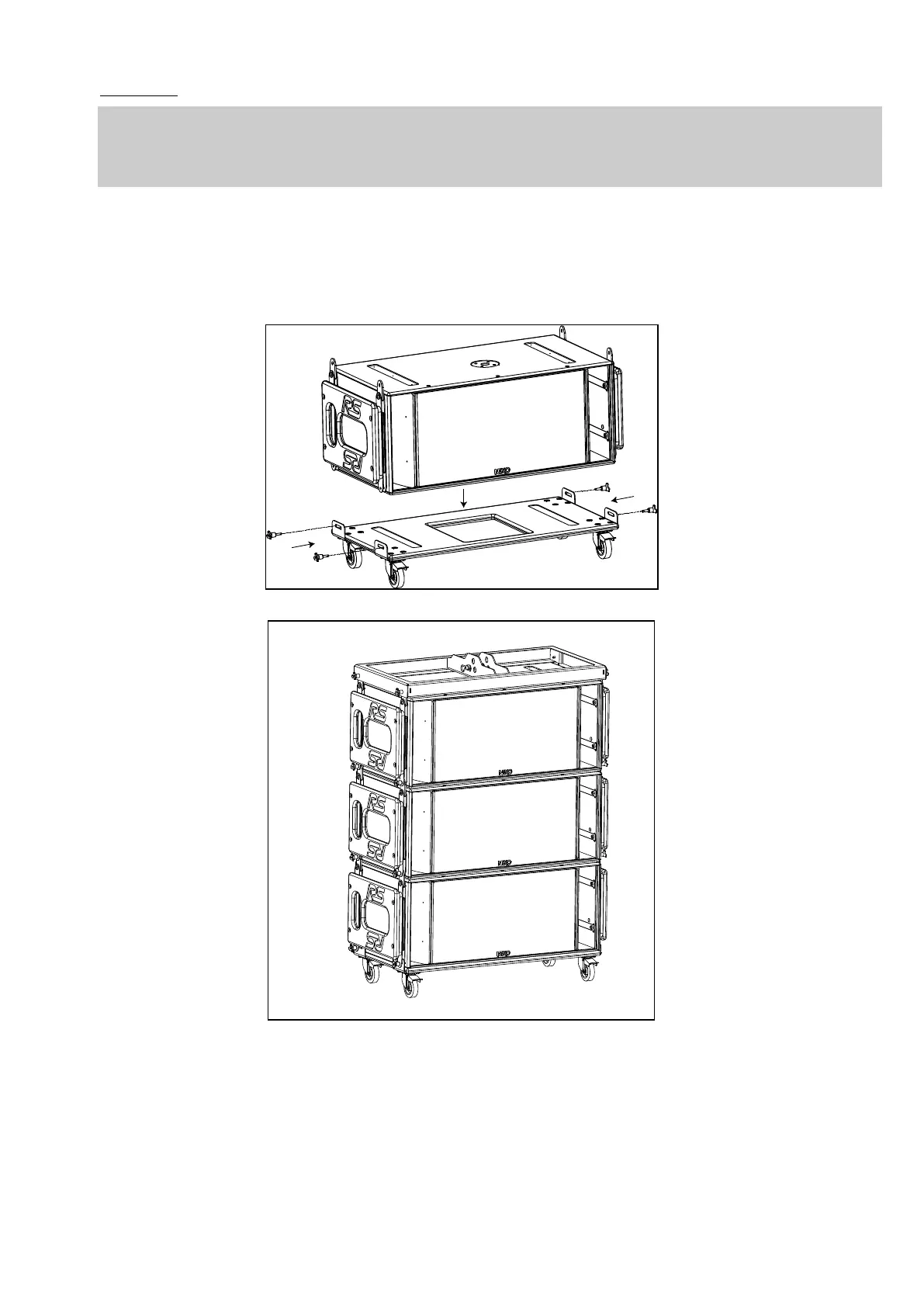

The first RS15 must be locked to the RS15 dolly using four push-pins according to below drawing.
Subsequent RS15s are stacked on top using four push-pins per additional cabinet to secure the assembly.
Bumper is to be attached to the top cabinet.
