RAY SUB IMPLEMENTATION
Page 48 / 76 System Manual RS Series
Table below lists these values for typical angle values:
TILT ANGLE
0°
5°
10°
15°
20°
25°
30°
35°
40°
45°
GROUP
2 RS15s
DELAY  (ms)
0.0
0.2
0.5
0.7
0.9
1.1
1.3
1.5
1.7
1.9
DISTANCE
(cm)
0.0
7.9
15.8
23.6
31.1
38.5
45.5
52.2
58.5
64.3
GROUP
3 RS15s
DELAY  (ms)
0.0
0.3
0.7
1.0
1.4
1.7
2.0
2.3
2.6
2.8
DISTANCE
(cm)
0.0
11.9
23.7
35.3
46.7
57.7
68.3
78.3
87.7
96.5
GROUP
4 RS15s
DELAY  (ms)
0.0
0.5
0.9
1.4
1.8
2.2
2.7
3.0
3.4
3.8
DISTANCE
(cm)
0.0
15.9
31.6
47.1
62.2
76.9
91.0
104.4
117.0
128.7
7.3.3 Coverage result

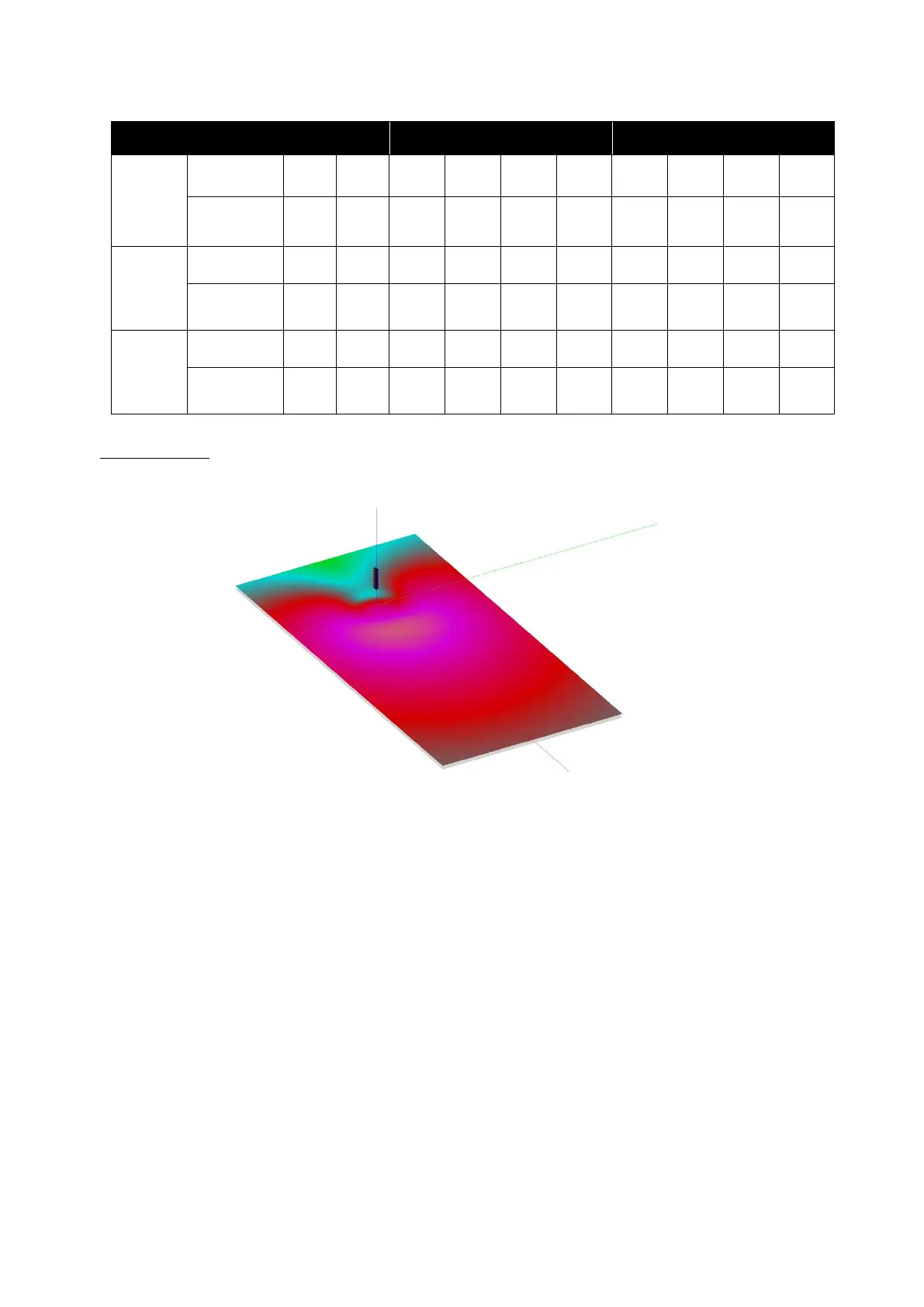

Below figure shows coverage control over distance with a “steering” delay sequence corresponding to a 15° tilt down.
12 RS15 CLUSTER OVER 75M/200FT, STEERED 15° DOWN
