Table below lists these values for typical angle values:
TILT ANGLE
0°
5°
10°
15°
20°
25°
30°
35°
40°
45°
1 RS18
DELAY  (ms)
0.0
0.1
0.3
0.4
0.5
0.6
0.8
0.9
1.0
1.1
DISTANCE
(cm)
0
5
9
13
18
22
26
30
33
37
GROUP
2 RS18s
DELAY  (ms)
0.0
0.3
0.5
0.8
1.0
1.3
1.5
1.7
1.9
2.1
DISTANCE
(cm)
0
9
18
27
36
44
52
60
67
74
GROUP
3 RS18s
DELAY  (ms)
0.0
0.4
0.8
1.2
1.6
1.9
2.3
2.6
2.9
3.2
DISTANCE
(cm)
0
14
27
40
53
66
78
89
100
110
7.4.3 Coverage result

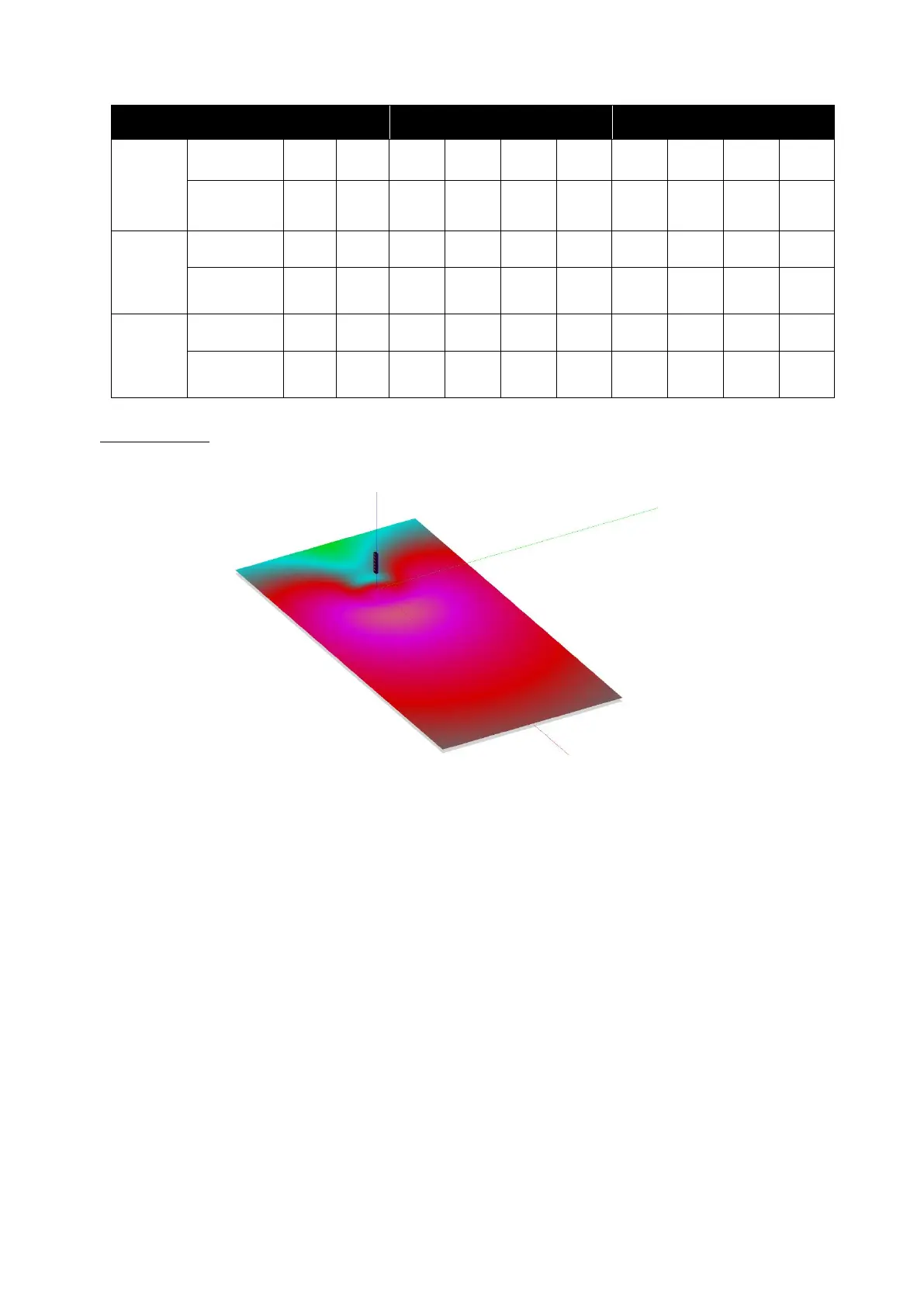

Below figure shows coverage control over distance with a “steering” delay sequence corresponding to a 15° tilt down.
10 RS18 CLUSTER OVER 75M/200FT, STEERED 15° DOWN
