RS HARDWARE SETUP PROCEDURE
Page 26 / 76 System Manual RS Series
5.3.2 RS18 Dolly
IMPORTANT
Transporting RS18 on Dolly requires that flying plates are installed on ALL CABINETS so that RS18’s can
be secured together.
RS18 Dolly is designed for up to 3 RS18’s and bumper. Never exceed these quantities.

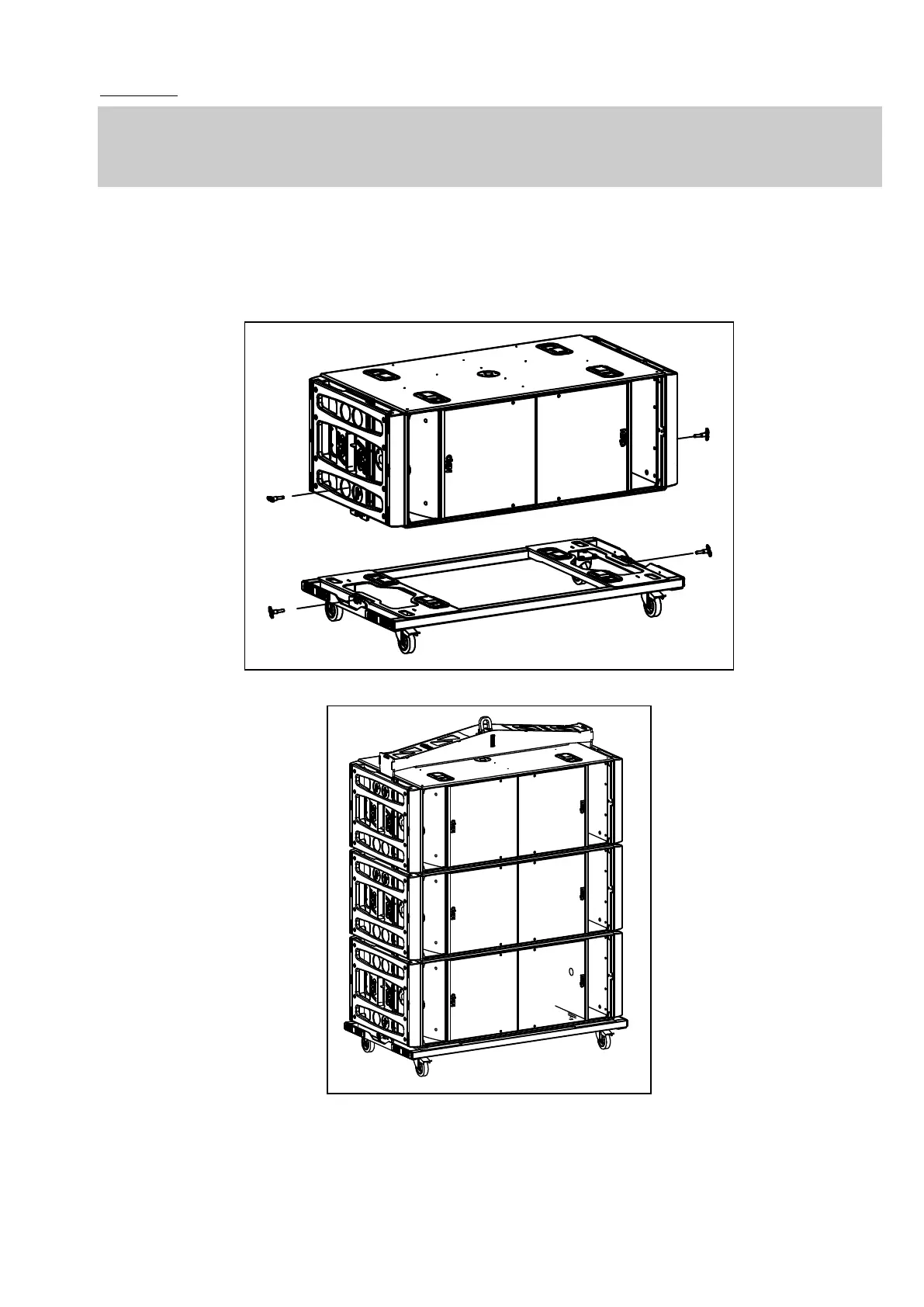

The first RS18 must be locked to the RS18 dolly using 4 push-pins according to below drawing;
Subsequent RS18s are stacked on top using four push-pins per additional cabinet to secure the assembly.
Bumper is to be attached to the top cabinet.
