RAY SUBS IMPLEMENTATION Page 39/58
8.2.3 RS15s arrays
IMPORTANT
RS15s arrays must be installed with bumper set horizontally and all cabinets at 0°.
Flying RS15s columns can significantly improve low frequency coverage in the vertical plane, and
therefore over audience depth provided height is sufficient.
A 12 RS15 cluster flown at 10m/30ft will provide a +/- 3dB pressure level deviation at 100Hz over an
audience area 75m/200ft deep while maintaining 15 to 20dB attenuation on stage (see figure below).

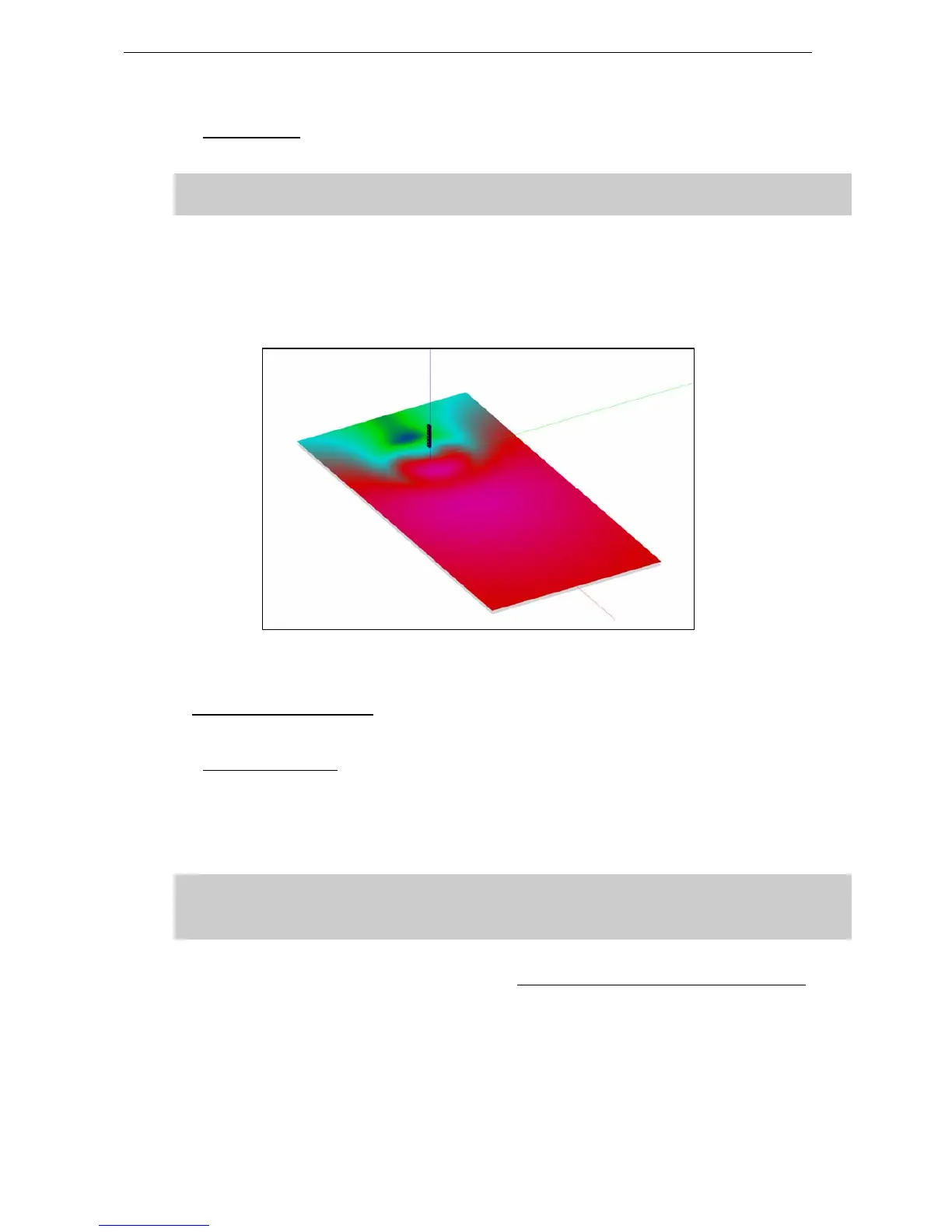

12 RS15 “ALTERNATE” CLUSTER OVER 75M/200FT
8.3 Steered RS15s arrays
8.3.1 Steering technique
RS15s arrays must be flown vertically with bumper set horizontally and all cabinets at 0°.
Coverage adjustments can be efficiently implemented through the “steering” technique, which consists
in implementing delays in cabinets to tilt coverage up or down.
IMPORTANT
- “Steering” techniques should not be applied to clusters of less than 4 RS15;
- Coverage control through steering technique increases with cluster height.
Steering can be applied by group of 2, 3 or 4 RS15s in Omni Mode as well as in Directional Mode
.
To Next Page
