SOM Mounting Hardware
The HDK/SOM combo kit includes spacers and screws securing the SOM on the HDK. These are to ensure the
SOM does not become disengaged from the HDK and damaged during shipping. This hardware is not required
for operation and can be left in place or discarded.

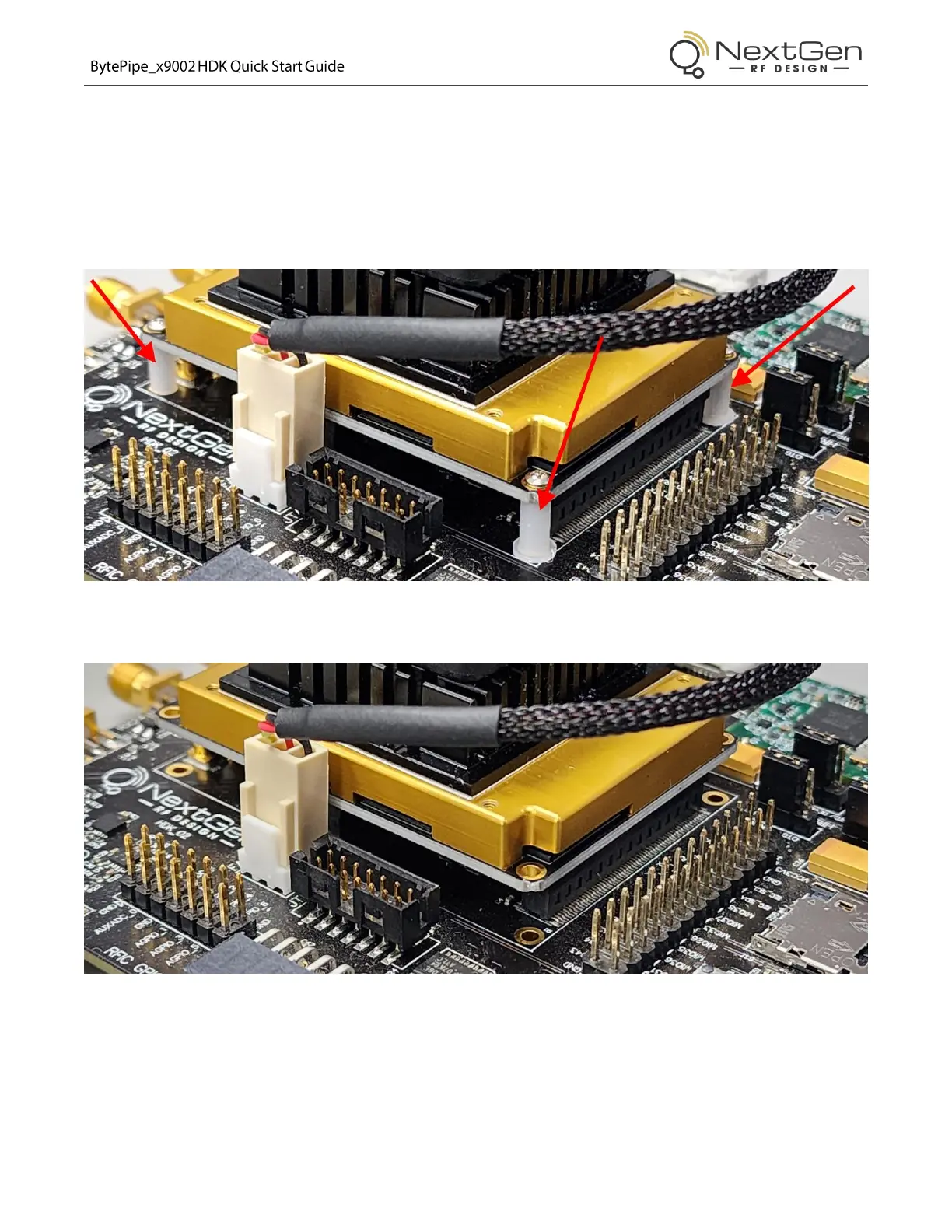

Figure 2: SOM Mounting Hardware Installed
Figure 3: SOM Mounting Hardware Removed
