The BytePipe x9002 HDK (Hardware Development Kit) is a comprehensive platform designed for the development and testing of Software Defined Radio (SDR) systems. It combines a main board with a System on a Module (SOM) and supporting cables, power supply, and software to enable testing and development with the NextGen RF BytePipe SOM. The HDK is intended for use as an evaluation tool and prototyping platform to aid in the integration of the SOM into a full-scale product, or as a starting point to explore custom development of an SDR transceiver.

Function Description:

The BytePipe x9002 HDK serves as a versatile development and prototyping platform for SDR applications. At its core, it integrates the BytePipe SDR SOM Module, which is the central processing unit for RF signal processing. The main board provides the necessary interfaces and peripherals to support the SOM's functionality, including RF input/output, digital interfaces, power management, and communication ports. This allows developers to evaluate the SOM's performance, develop custom software, and integrate the SOM into larger systems. The kit facilitates the development of SDR systems that can be configured for various applications, from basic signal reception and transmission to more complex waveform generation and analysis. The inclusion of pre-installed software (RFLAN) on a micro-SD card ensures that users can quickly get the system up and running for initial evaluation and development.

Important Technical Specifications:

The BytePipe x9002 HDK offers a robust set of technical specifications, making it suitable for a wide range of SDR development tasks.

Connectivity and Interfaces:

USB 2.0/3.0 Host/Device/OTG Connector: Provides flexible USB connectivity for data transfer and device control, supporting both host and device modes, as well as On-The-Go (OTG) functionality.
10/100/1000 Ethernet Connector: Enables high-speed wired network connectivity for data streaming, remote control, and system integration.
Mini DisplayPort: Offers a digital video output for connecting to displays, useful for debugging or visualizing system status.
JTAG/UART Interface: Essential for debugging, programming, and serial communication with the SOM's underlying hardware and software.
RF Device Clock & MCS (Multi-chip Synchronization): Supports precise timing and synchronization across multiple RF devices, crucial for coherent multi-channel or phased-array applications.
Micro-SD Card Slot: For booting the system and storing software, firmware, and user data.
PMOD Connectors (16x Programmable Logic I/O): Provides flexible expansion capabilities for connecting various peripheral modules, allowing for customization and integration of additional hardware.
DC Power Regulators: Ensures stable and regulated power delivery to all components of the HDK and SOM.
Square Form Factor (4.25" x 4.25" PCB Only): A compact and manageable size for integration into various enclosures or test setups.

RF Specifics:

RX2A & RX1A LNA: Low Noise Amplifiers for improved reception sensitivity on specific receive paths.
SMPM - SOM RF Interface: High-frequency RF connectors for connecting to external RF test equipment or antennas. The kit includes six SMPM RF interconnects.
External RF Clock: Allows for synchronization with an external, high-precision clock source for enhanced RF performance.
ADRV900X GPIO/ADC/DAC: General Purpose Input/Output, Analog-to-Digital Converter, and Digital-to-Analog Converter interfaces for direct control and data acquisition from the Analog Devices ADRV900X transceiver integrated within the SOM.
TX1, TX2, RX1A, RX1B, RX2A, RX2B: Clearly labeled transmit and receive paths for easy identification and connection of RF signals.

Power and Control:

12V 2A / 12V 24W Power Input: Specifies the power requirements for the HDK, ensuring stable operation.
Power Switch (ON/OFF): A physical switch for easy power control of the entire HDK.
Reset Push Button: Allows for a hardware reset of the system, useful for debugging or recovering from software issues.

Usage Features:

The BytePipe x9002 HDK is designed for ease of use, with several features that streamline the development process:

Pre-installed Software: If purchased with a SOM, the kit comes with the SOM pre-installed and ready to use, including RFLAN software on a micro-SD card. This allows for immediate power-up and basic functionality testing.
Modular Design: The SOM can be purchased separately and installed by the user, providing flexibility for those who already have a SOM or wish to upgrade.
Clear Labeling: All connectors and components on the HDK main board are clearly labeled (e.g., TX1, RX2A, JTAG, USB, Ethernet), simplifying setup and connection.
Comprehensive Documentation: The Quick Start Guide provides step-by-step instructions for initial setup, including SOM installation, heatsink and fan installation, micro-SD card preparation, and connecting RF test equipment. Additional detailed instructions are available on NextGen RF Design's website and GitHub page.
Serial Command Line Interface (CLI): The HDK supports serial communication for interacting with the system via a command-line interface, enabling configuration, control, and debugging.
RF Test Equipment Connections: The guide provides clear diagrams for connecting signal generators and signal analyzers to the HDK's RF ports, facilitating RF performance testing.
USB Configuration (Host/Device/OTG): A jumper (JPS) allows users to select the desired USB mode, providing flexibility for different application scenarios.

Maintenance Features:

While the BytePipe x9002 HDK is primarily a development kit, it incorporates several features and considerations for maintenance and longevity:

SOM Heatsink and Fan: The kit includes a heatsink and fan for the SOM, which is crucial for thermal management. Proper installation of these components (as detailed in the guide) prevents overheating and potential damage to the SOM, especially during prolonged operation or high-load scenarios. The guide explicitly warns against operating the SOM without adequate thermal dissipation.
ESD Warning: The manual emphasizes the importance of observing precautions for handling electrostatic sensitive devices. This is a critical maintenance practice to prevent damage to the sensitive electronic components on the HDK and SOM.
Software Updates: Users are encouraged to check the NextGen RF Design GitHub page for the latest RFLAN software releases. Keeping the software updated ensures access to bug fixes, performance improvements, and new features, contributing to the long-term usability and stability of the kit.
Micro-SD Card Management: Instructions are provided for preparing the micro-SD card, including downloading the correct software version that matches the SOM's logic size and processing system. This ensures proper booting and functionality. The guide also details the correct procedure for installing and securing the micro-SD card in its holder.
SMPM RF Adapter Management: The guide provides instructions for installing SMPM adapters and warns against damaging them if tools are used. It also notes that additional or replacement SMPM adapters can be ordered using specified manufacturer part numbers, ensuring that users can maintain RF connectivity if adapters are lost or damaged.
Fan Power Connector: The fan power connector (J1) is keyed to ensure correct polarity, preventing damage to the fan or the HDK due to incorrect wiring. If using a different fan, users are advised to verify the pinout.
Mounting Hardware: The HDK/SOM combo kit includes spacers and screws to secure the SOM during shipping. While not required for operation, these components protect the SOM from disengagement and damage during transit, highlighting a design consideration for product integrity.

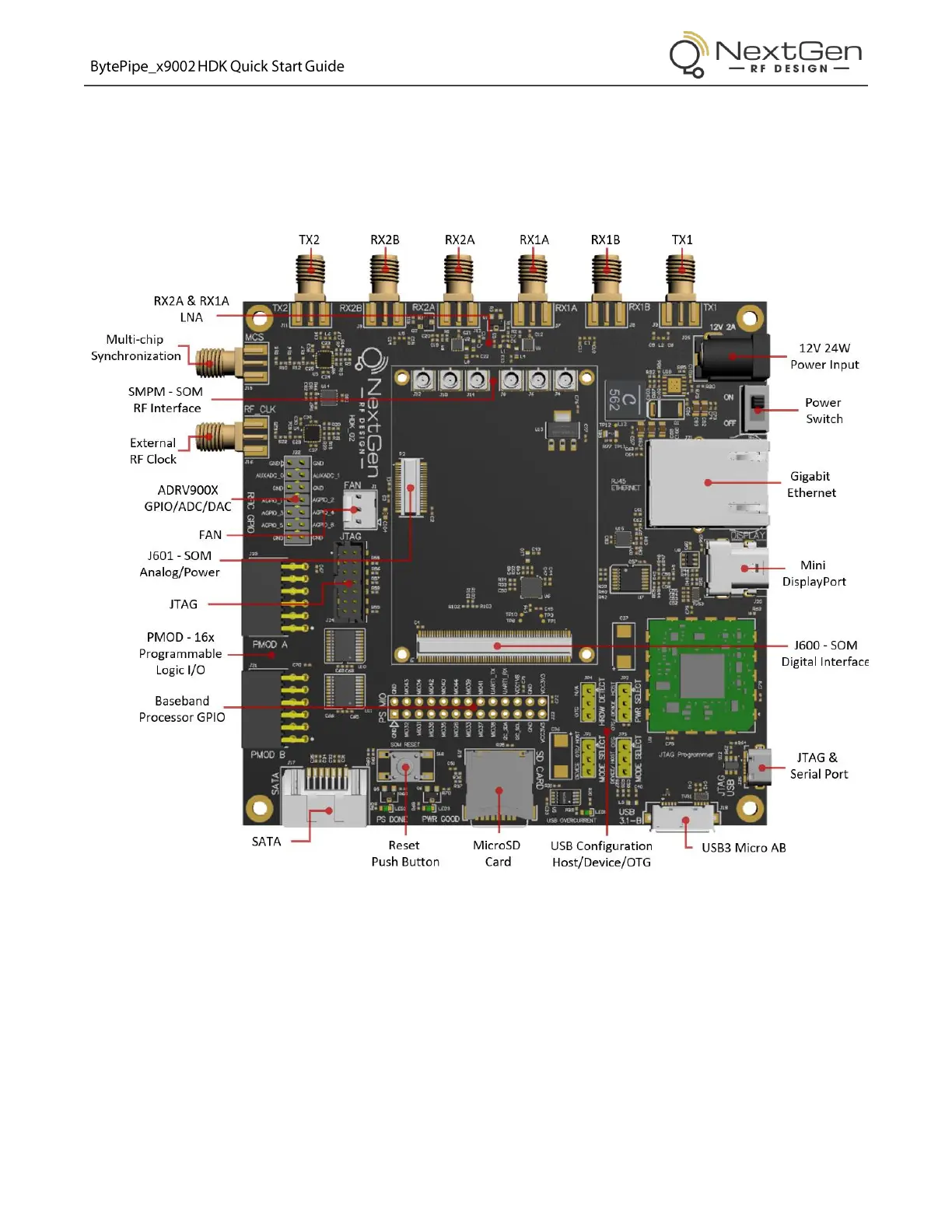

NextGen BytePipe x9002 - HDK Overview; Figure 4: HDK Overview
