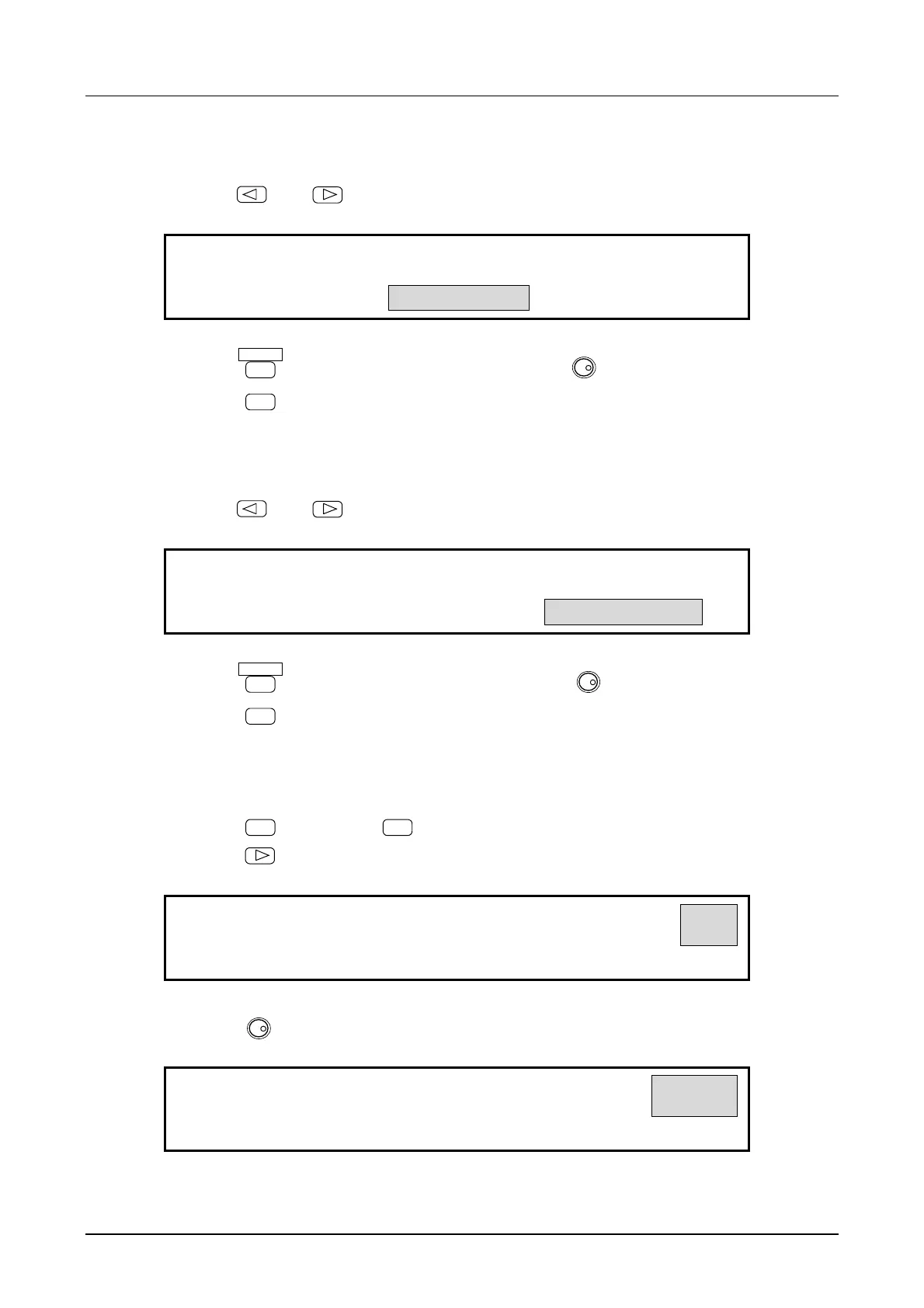

(4) Set the coefficient [SCALE (m)], e.g., to 60
① Use the
and keys to produce the following display (SCALE (m) flashes).
＋１．００００００００００００００Ｅ＋０
ＵＳＥＲ ＵＮＩＴ：
3
ＳＣＡＬＥ（ｍ） ＯＦＦＳＥＴ（ｎ）
② Press the
ENTER
key, then set the scale with the keypad or
MODIFY
dial.
③ Press the
EXIT
key to release the scale setting mode.
(5) Set the offset [OFFSET (n)], for example, to 0
① Use the
and keys to produce the following display [OFFSET (n) flashes].
＋０．００００００００００００００Ｅ＋０
ＵＳＥＲ ＵＮＩＴ：
3
ＳＣＡＬＥ（ｍ） ＯＦＦＳＥＴ（ｎ）
② Press the
ENTER
key, then set the offset with the keypad or
MODIFY
dial.
③ Press the
EXIT
key to release the offset setting mode.
(6) Display the above settings
① Press the
ENTRY
key, then the
FREQ
key.
② Press the
key to produce the following display (Hz flashes).
１０００．００００００００ Ｈｚ
Ａ０．１０００Ｖｐ－ｐ Ｏ＋０．００００Ｖ ／ＯＰＥＮ
③ Turn the
MODIFY
dial to produce the following display.
６００００．０００００００ ｒｐｍ
Ａ０．１０００Ｖｐ－ｐ Ｏ＋０．００００Ｖ ／ＯＰＥＮ
