NF WF1943B - 4.2 Sweep

WF1943B 4-15
4.2 Sweep
 Sweep (Mode: Single) (
MODE
→
SWEEP
→ MODE : SINGLE)
In a Sweep (Mode: Single), oscillation occurs by varying parameters such as the frequency and amplitude
one time between the start and stop settings. Oscillation continues after the sweep is completed.

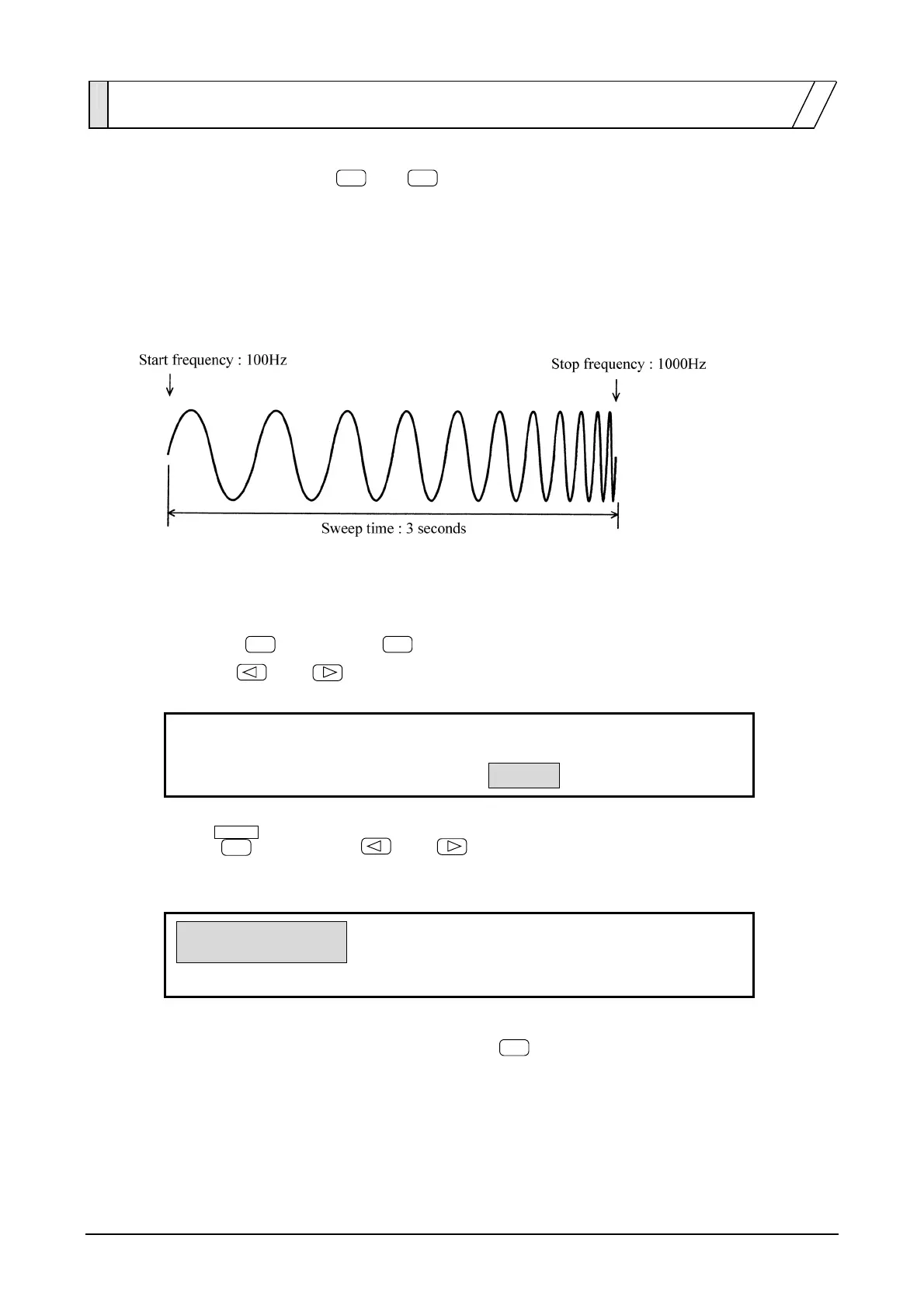

Operation to produce a waveform output with frequency that varies linearly and continuously is described.
The setting example is a sinewave with arbitrary amplitude and DC offset.
Operation:
(1) Set sweep MODE to SINGLE
① Press the
MODE
key, then the
SWEEP
key.
② Use the
and keys to produce the following display (MODE flashes).
ＳＩＮＧＬＥ ＣＯＮＴ ＧＡＴＥＤ
Ｆ－ＳＷＰ：ＴＹＰＥ ＳＯＵＲＣＥ ＭＯＤＥ
4
③ Press
ENTER
, then use the and keys to produce the following display
(SINGLE flashes).
ＳＩＮＧＬＥ ＣＯＮＴ ＧＡＴＥＤ
Ｆ－ＳＷＰ：ＴＹＰＥ ＳＯＵＲＣＥ ＭＯＤＥ
4
④ This sets the sweep mode for single. Press the
EXIT
key once to release mode select.
