17
Maintenance
Target Covers
To access the target motors you will need to remove the display housing. You also will
need to ensure the targets are protruding out as shown below. Unlatch the harness
clamps located in the back side of the game first. Remove the four mounting screws at
the bottom back of the game in order to gain access to remove the back door. This will
allow you enough slack in the wires to lift the covers off and lay them on their side. It is
not necessary to fully remove the target covers to access the target motors. Only re-
move the four lower bolts and loosen the two top bolts. Slide the cover up until the top

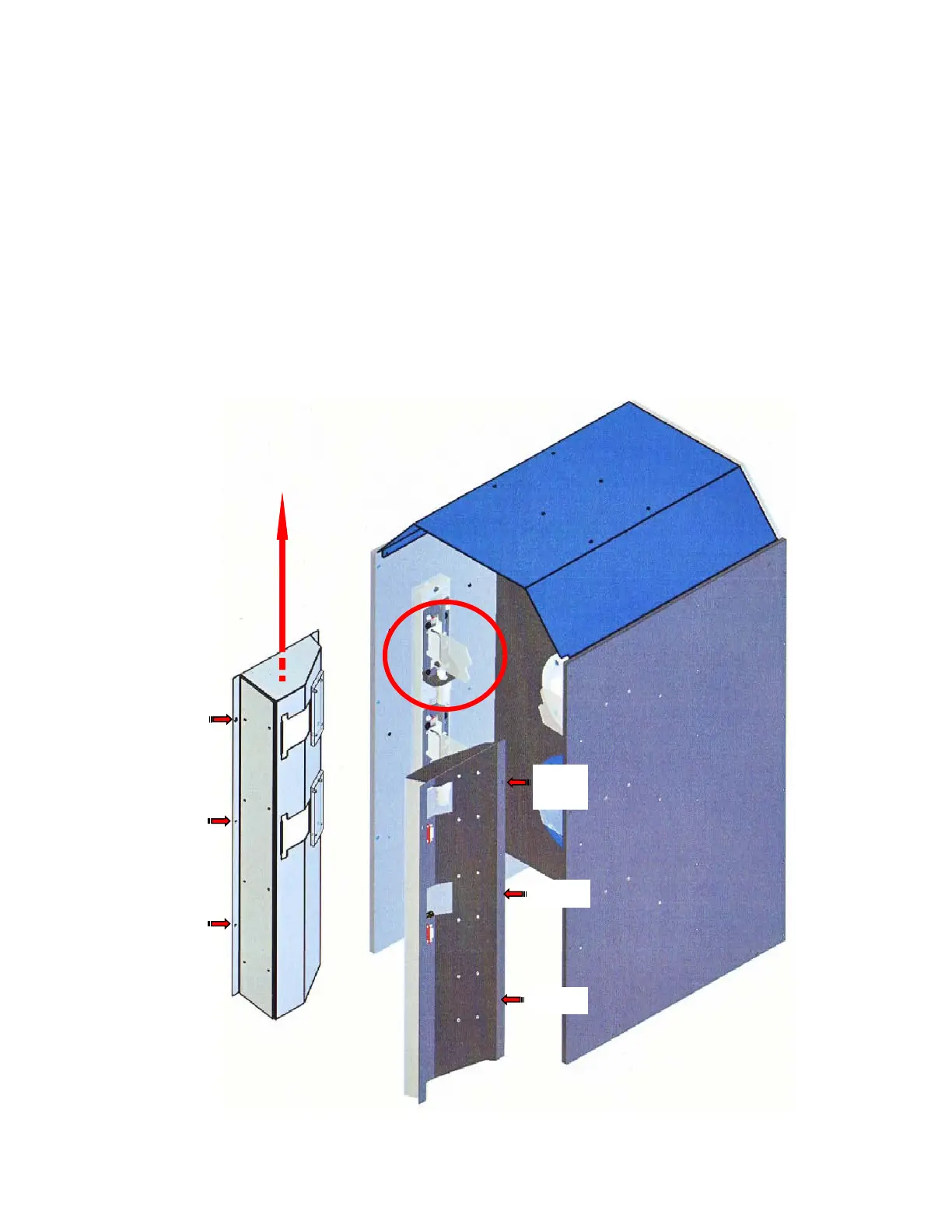

bolts heads can slide out the slotted holes. The diagram shows the location of the
bolts. Bolt locations are shown on two different covers but exists on both sides of the
cover.
Remove
Remove
Loosen
only
Loosen
only
Remove
Remove
