Maintenance
Power Supply & Transformer
The power supply and transformer are located in the back of the game. To access
them, you must open the bottom back access door and located on the left is the power

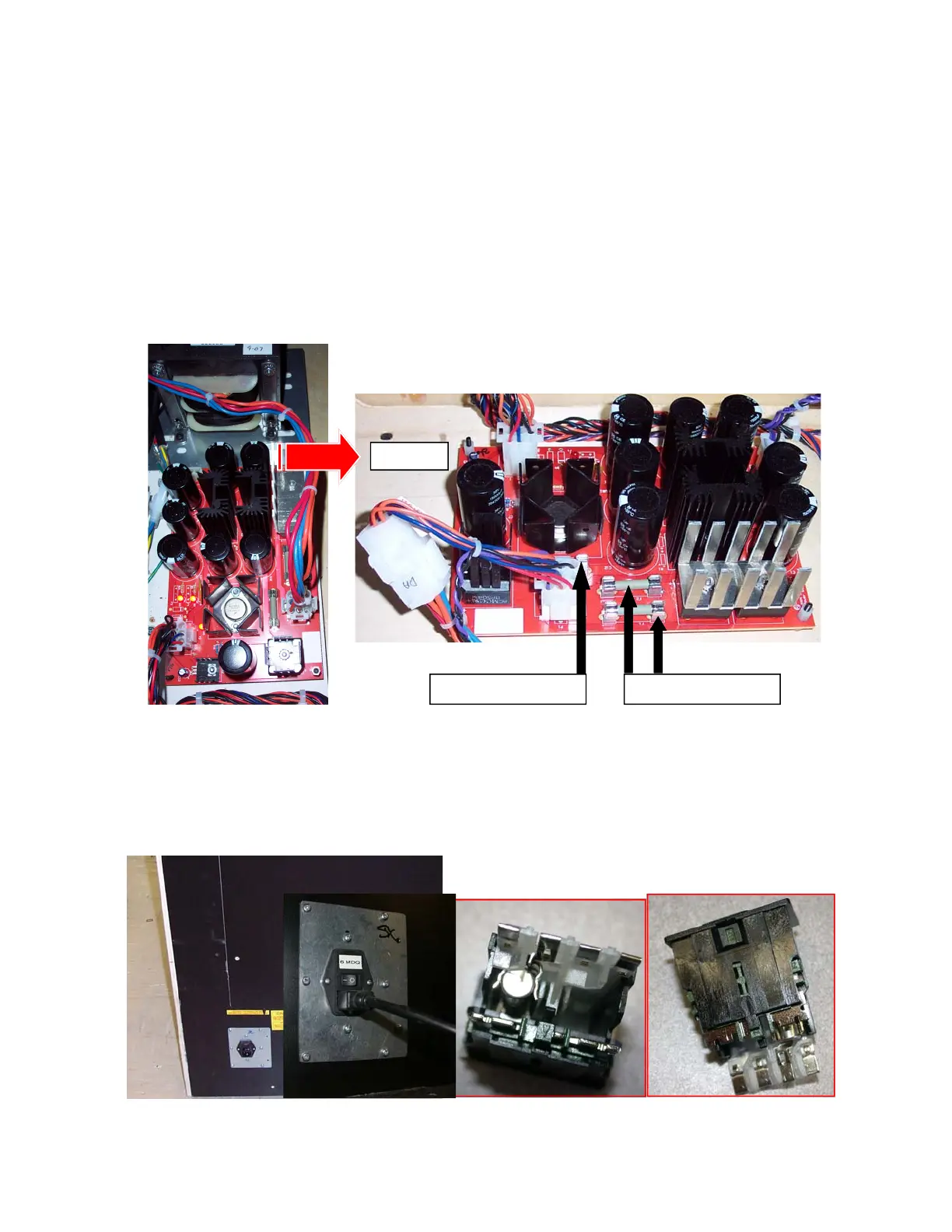

assembly. See pictures below
F1 & F2 = 8 amp slow
F3 = 4 amp slow
DA2001X
AC Main Power Fuse
Located in the power module is a 3 amp slow blow fuse. To check or replace the fuse
pull the tab with the label out. There is only one fuse installed. See diagram below.
