6
Maintenance
General illumination

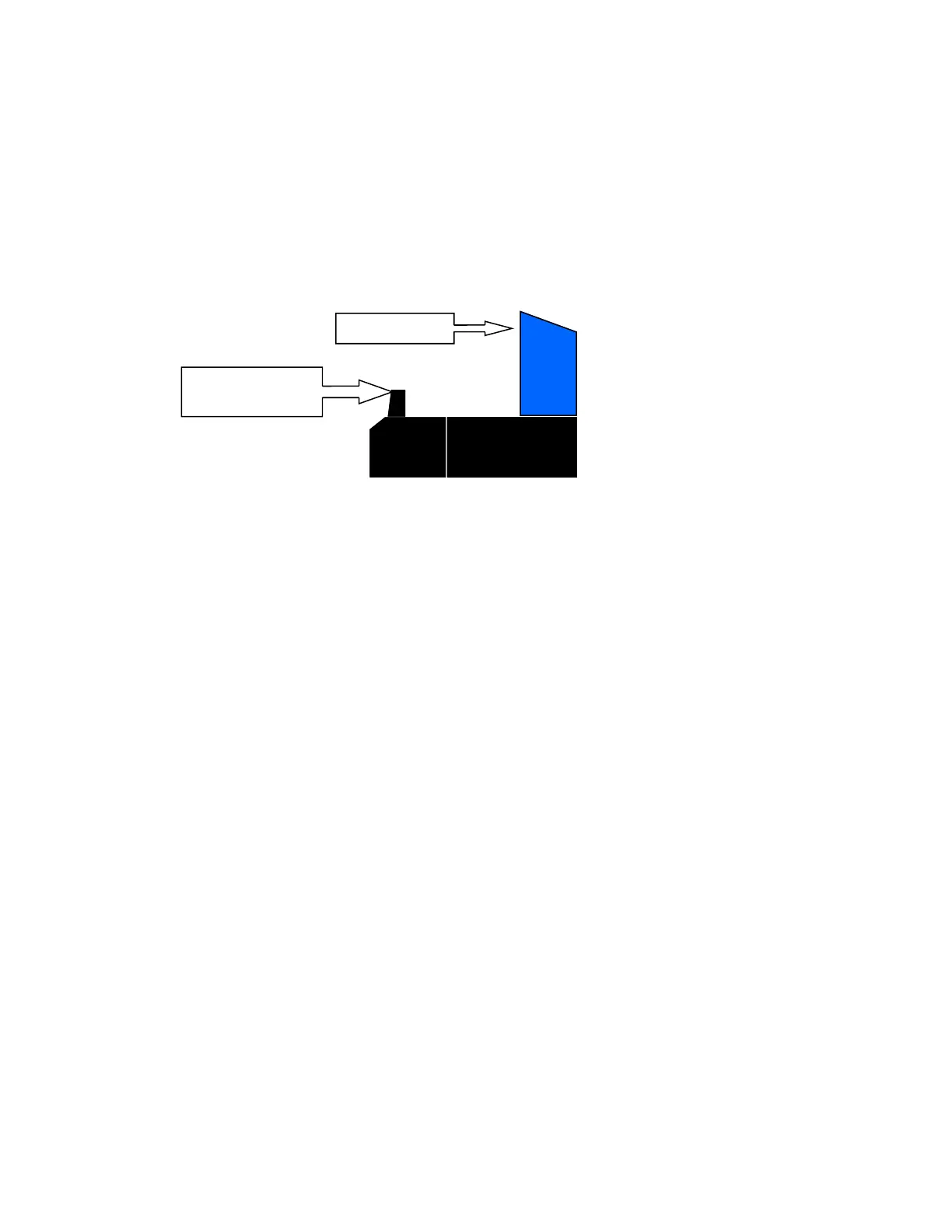

Location of bulbs
There are two 8545’s (Compact fluorescent bulbs) located in the control panel, one
E00377 (Flood Bulb) and located above the Playfield area is one 8312 (PLL 18 bulb).
(1) 8312 (PLL)
(1) E00377 (Flood)
(2) 8545 (Curly)
Control panel bulbs
To access the three bulbs located in the control panel you will need to remove the
bracket holding the control panel. Use a 5/32 Allen and 7/16 wrench to remove the 3
bolts holding the top bracket of the control panel. See page 13 for bracket diagram
and see pages 8 through 12 for assembly diagrams of the control panel.
Playfield bulb
Open the top back door and remove the #2 square head screws that hold the upper
cover plate. You can now access the top PLL bulb. It is also possible to access the
bulb from the front if access to the back is limited. See diagram on page 14.
LED Lights
There are two LED strips to illuminate the word GAME CLOCK located at the top of the
playfield in the marquee. You will need to remove the front marquee to replacement
the LED strips. See the assembly diagram on page 14 for removal. There are also
four strips located in the control panel to illuminate the player’s ranking. See diagram
on page 13 for access. The LED Strips located in the target area are part of the dis-
play assemblies and cannot be replaced alone. See display location on the next
page.
