Maintenance
Conveyor Assembly Access

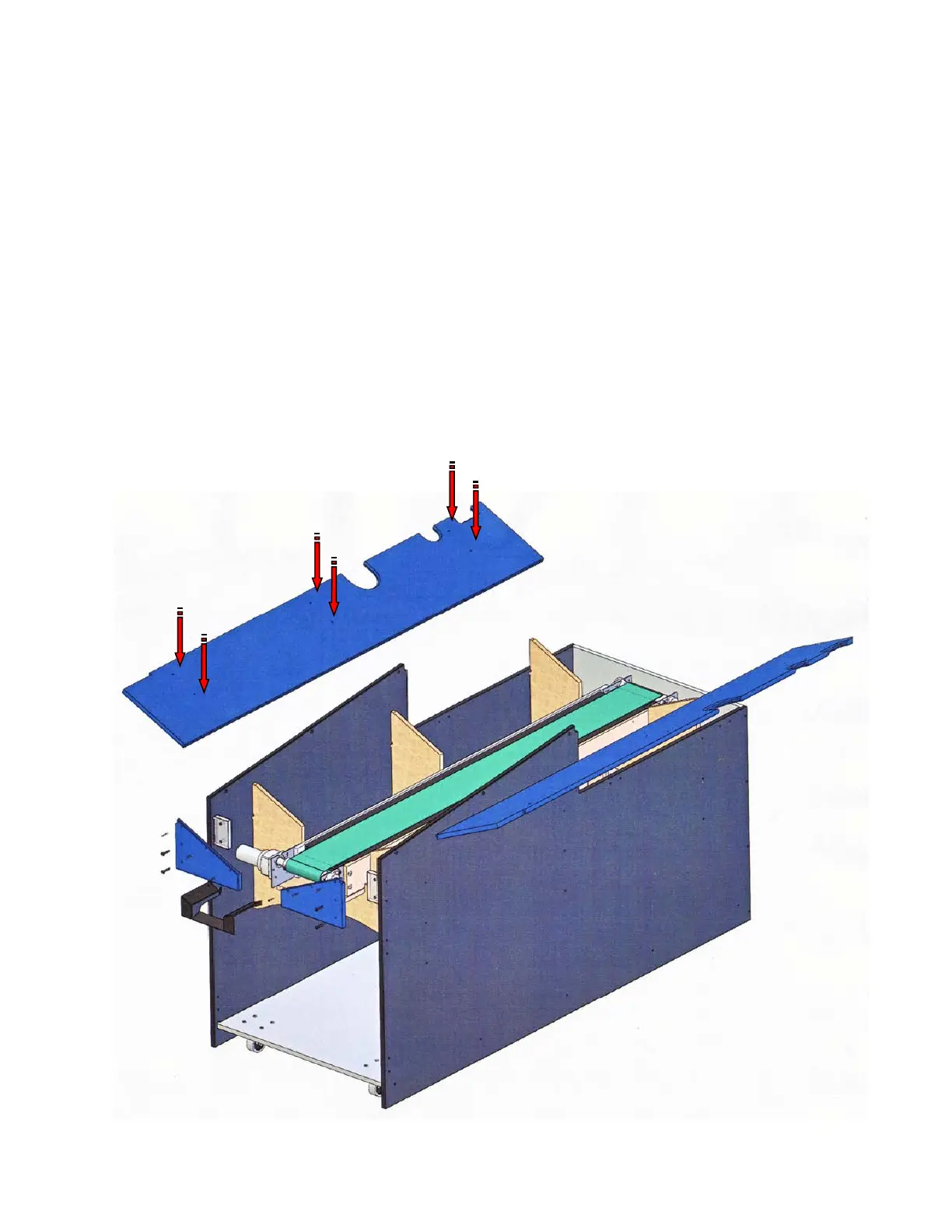

To access the conveyor assembly you will need to remove the side wall panels. It is
not necessary to remove the target covers in order to remove the side wall panels but
to ensure that they are not scratched it is recommended. Refer to page 15 on how to
remove target covers. Remove the five bolts holding the front cover plates first and
remove the finger guard as shown below. Now remove the six screws holding the side
wall panels. Slide the panel down and out if the target covers are still installed.
