ELECTRICAL CONNECTION VERSIONS F1345
F1345 has different electrical connection versions de-
pending on when the heat pump was manufactured. To
check which electrical connection applies to your F1345,
check the designation "2.0" visible above the right hand
side of the terminal block as illustrated.
LEK

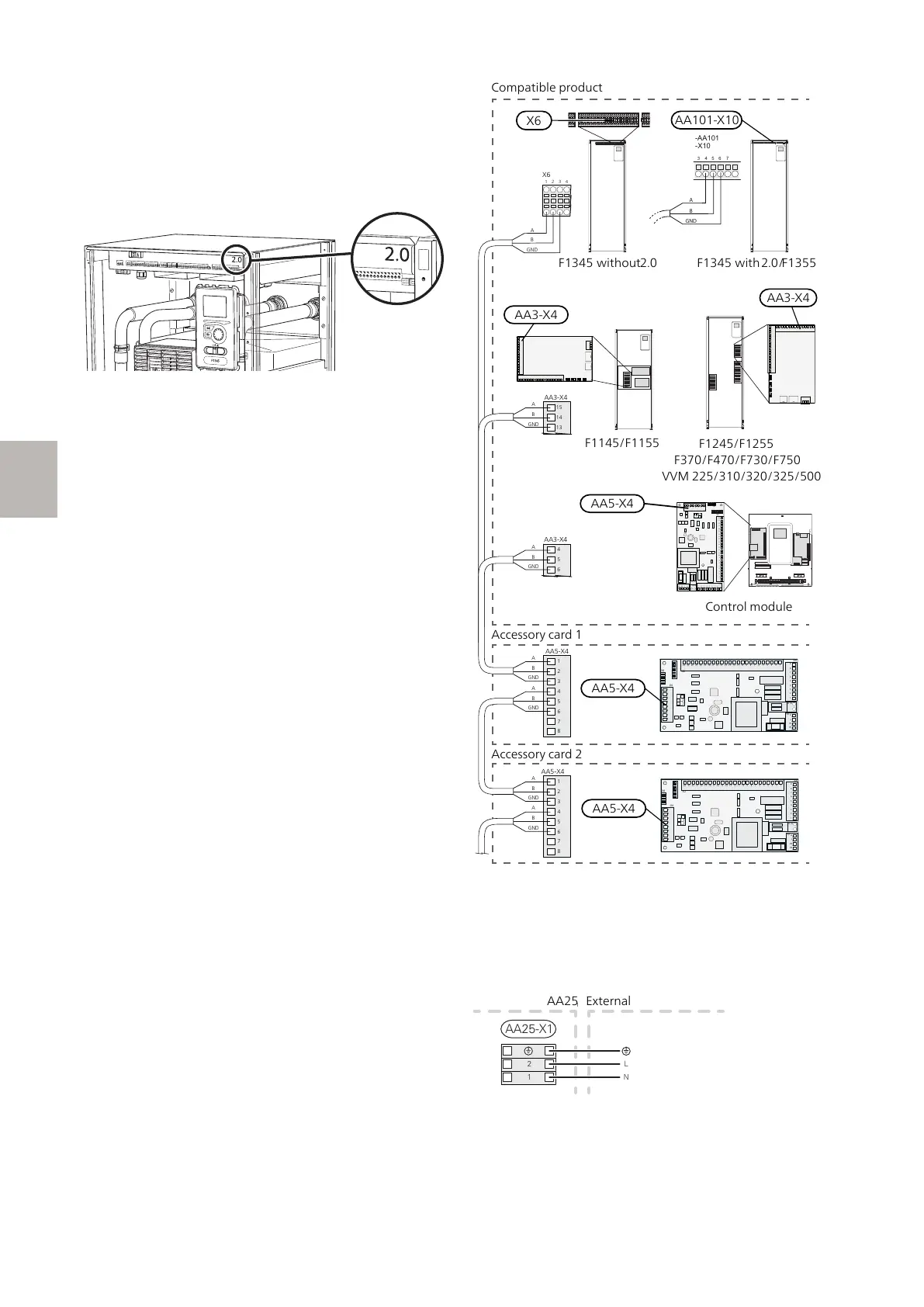

CONNECTING COMMUNICATION
ECS 40/ECS 41 contains an accessory board (AA5) that
connects directly to the main product’s input board
(terminal block AA3-X4).
For F1345 on terminal block X6 or on terminal block
AA101-X10 F1345 2.0/F1355.
If more accessories are to be connected, or are already
installed, the boards are connected in series.
Because there can be different connections for accessor-
ies with accessory board (AA5), you should always read
the instructions in the manual for the accessory that is
to be installed.
1
2
3
4
5
6
7
8
AA5-X4
15
A
B
GND
A
B
GND
A
B
GND
A
B
GND
A
B
GND
14
13
AA3-X4
1
2
3
4
5
6
7
8
AA5-X4
X6
1 2 3 4
A
B
GND
1
2
3
4
5
6
7
8
15
14
13
1
2
3
4
5
6
7
8
15
A
B
GND
14
13
AA3-X4
4
5
6
F1345 without2.0
X6
3
4
5
-X10
-AA101
6
7
A
B
GND
F1345 with2.0/F1355
AA101-X10
AA3-X4
F1245/F1255
F370/F470/F730/F750
VVM 225/310/320/325/500
AA3-X4
Control module
AA5-X4
LEK
ON
1 2 3 4 5 6 7 8
-X9
-X2
24
20
21
22
23
15
16
17
18
19
10
11
12
13
14
5
6
7
8
9
1
1
NL
PEPE
12345678
2 3 4
5 6 7
8 9
2
3
4
-X8
-X4
-X10
-X1
Compatible product
Accessory card 1
Accessory card 2
ON
1 2 3 4 5 6 7 8
-X9
-X2
24 20212223 1516171819 1011121314 56789 1
1
N
L
PE
PE
1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
9
234
-X8
-X4
-X10
-X1
AA5-X4
ON
1 2 3 4 5 6 7 8
-X9
-X2
24 20212223 1516171819 1011121314 56789 1
1
N
L
PE
PE
1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
9
234
-X8
-X4
-X10
-X1
AA5-X4
F1145/F1155
POWER CONNECTION
Connect the power supply cable to terminal block AA25-
X1 as illustrated.
Tightening torque for earth cable: 0.5–0.6 Nm.
AA25-X1
N
L
ExterntProduktNamn
2
1
AA25 External
ECS 40/ECS 41 F-series | GB32
