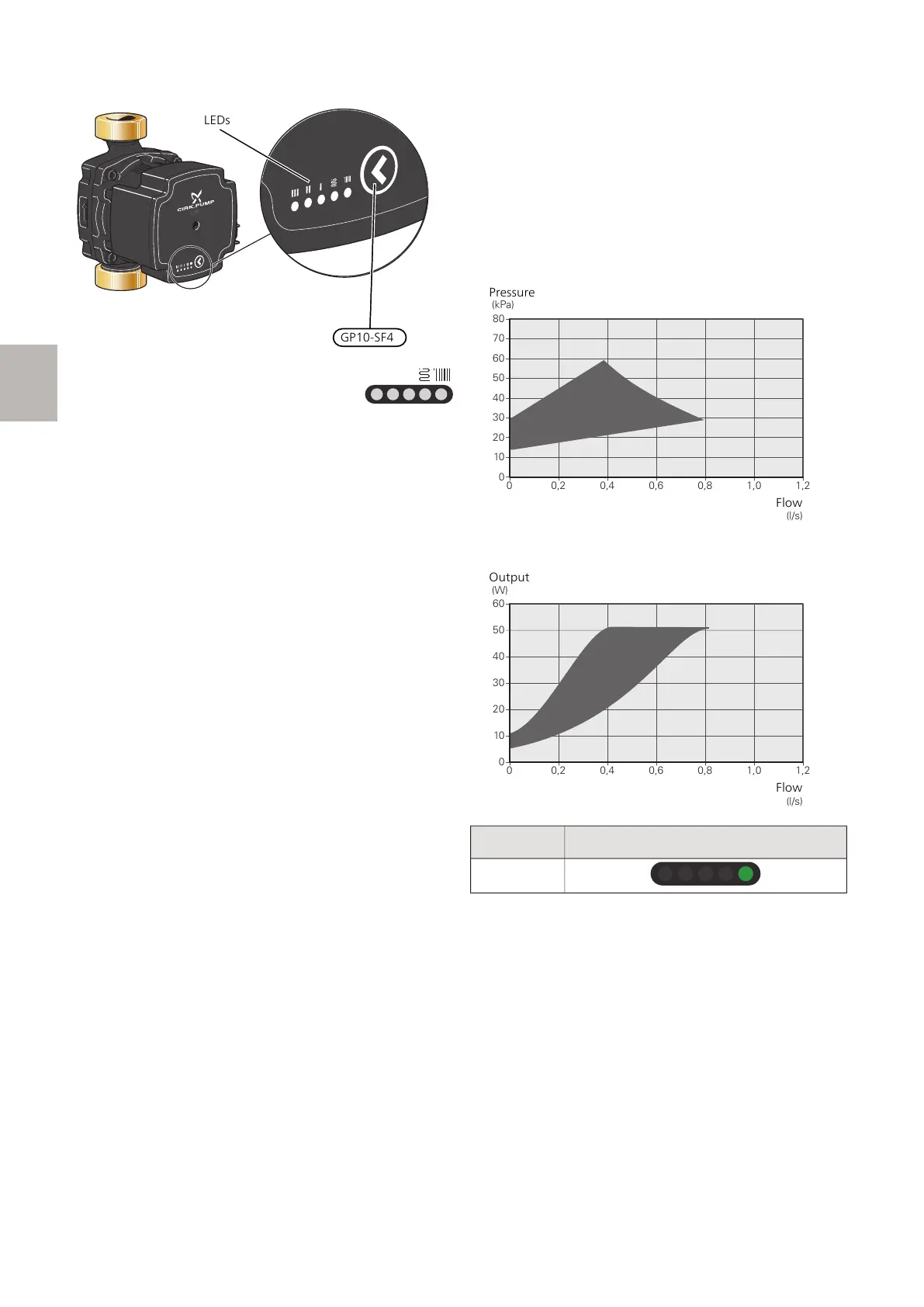

SETTING THE CIRCULATION PUMP
LEK
GP10-SF4
LEDs
I II III
The circulation pump (GP10) is equipped
with five LEDs. In normal mode, the
LEDs show the pump’s setting by light-
ing up in green and/or yellow. The LEDs can also indicate
an alarm, in which case they light up in red and yellow.
The circulation pump’s (GP10) various settings are se-
lected by pressing the switch (GP10-SF4).
Choose between 5 different settings on the circulation
pump.
• proportional pressure auto adapt (PPAA)
• constant pressure auto adapt (CPAA)
• proportional pressure (PP)
• constant pressure (CP)
• constant curve (CC).
The circulation pump’s factory setting is PP, speed 2.
PROPORTIONAL PRESSURE AUTO ADAPT
(PPAA)
The circulation pump continually regulates the flow
through the system with a great deal of freedom, to
ensure minimum pump power consumption.
The setting is intended for radiator systems. Due to
optimisation to low pumping capacity, the flow may be
insufficient in certain systems.
Capacity, circulation pump (PPAA)
0
0 0,2 0,4 0,6 0,8 1,0 1,2
10
20
80
50
40
70
60
30
Tryck
(kPa)
Flöde
(l/s)
Pressure
Flow
Power, circulation pump (PPAA)
0
0 0,2 0,4 0,6 0,8 1,0 1,2
10
20
60
50
40
30
Effekt
(W)
Flöde
(l/s)
Output
Flow
LED indicationSetting
PPAA
ECS 40/ECS 41 S-series | GB8
