Nibe F1155 Series - Technical Data; Dimensions and Setting-Out Coordinates

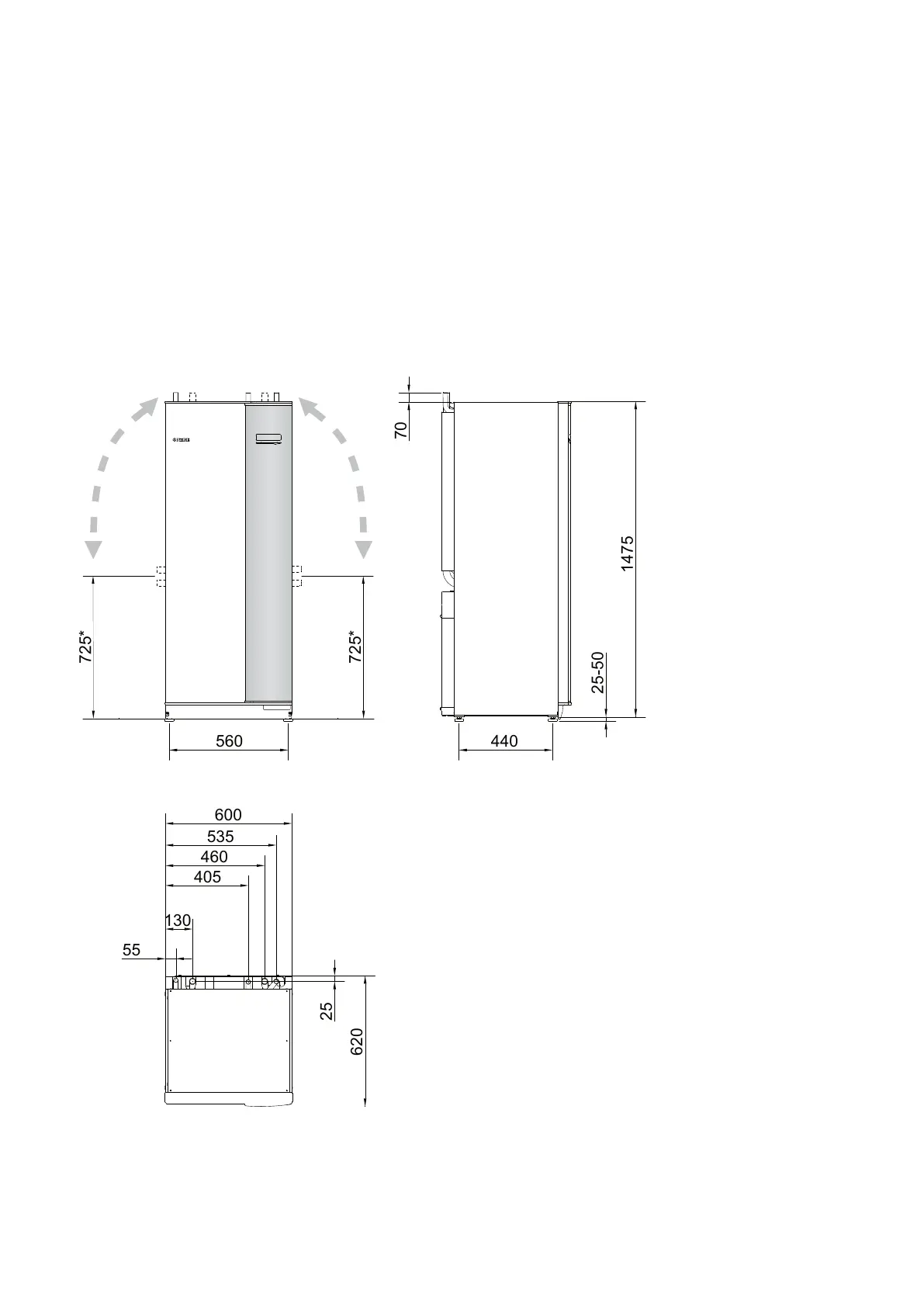

Dimensions and setting-out coordinates
620
600
560
70
1475
725* 725*
25-50
25
55
130
460
535
405
440
* This dimension applies at 90° angle on the brine pipes (side connection). The dimension can vary approx. ±100 mm vertically as the brine
pipes consist in part of flexible pipes.
