Removing parts of the
insulation

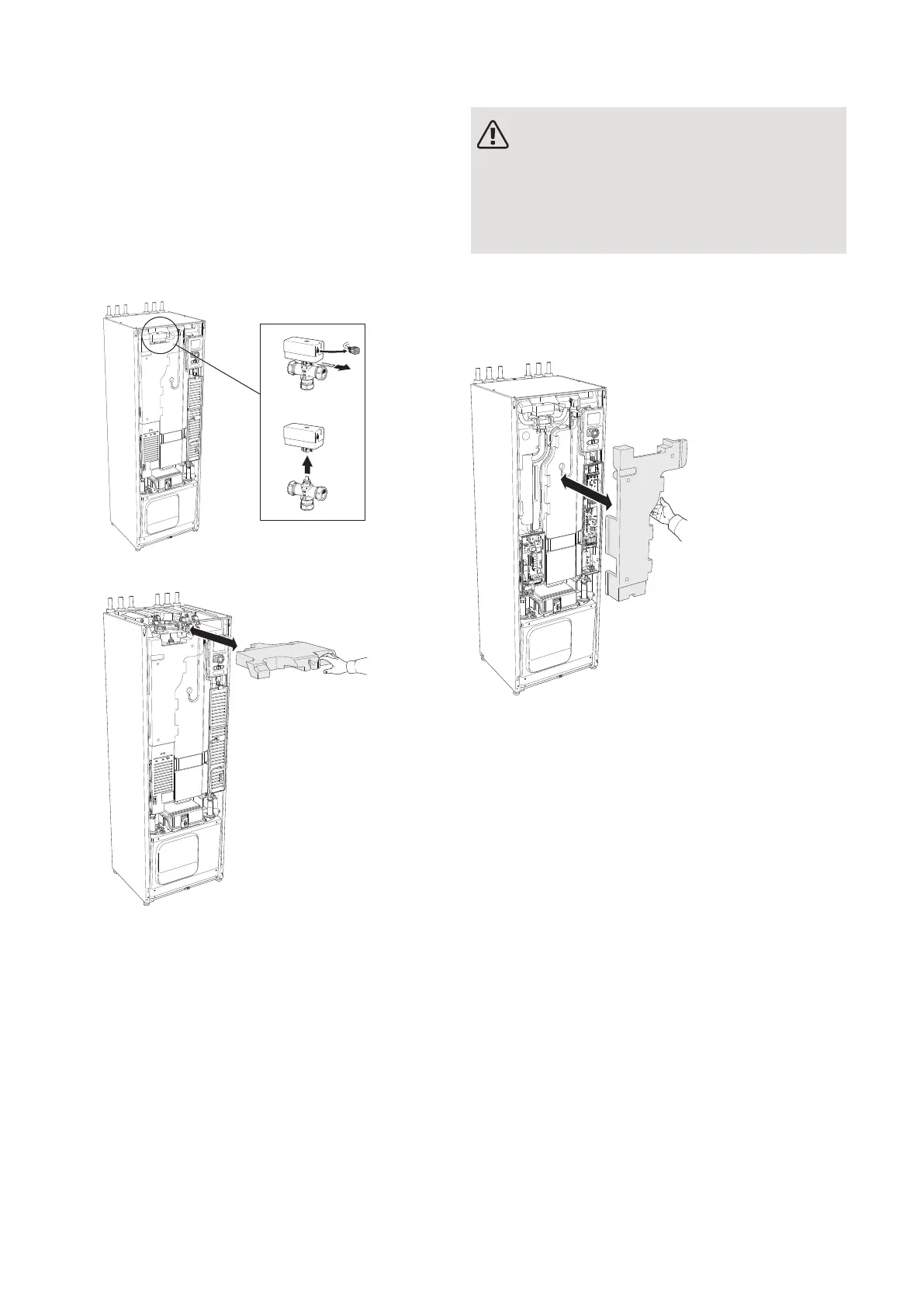

Parts of the insulation can be removed to facilitate the
installation.
INSULATION, TOP
1.
Disconnect the cable from the motor and remove
the motor from the shuttle valve as illustrated.
LEK
LEK
A
B
LEK
2.
Grip the handle and pull straight out as illustrated.
LEK
INSULATION, IMMERSION HEATER
NOTE
Electrical installation and service must be car-
ried out under the supervision of a qualified
electrician. Electrical installation and wiring
must be carried out in accordance with the
stipulations in force.
1.
Remove the cover for the junction box according to
the description on page 22.
2.
Grip the handle and pull the insulation carefully to-
wards you as illustrated.
LEK
