Nibe F1245 Service Instructions

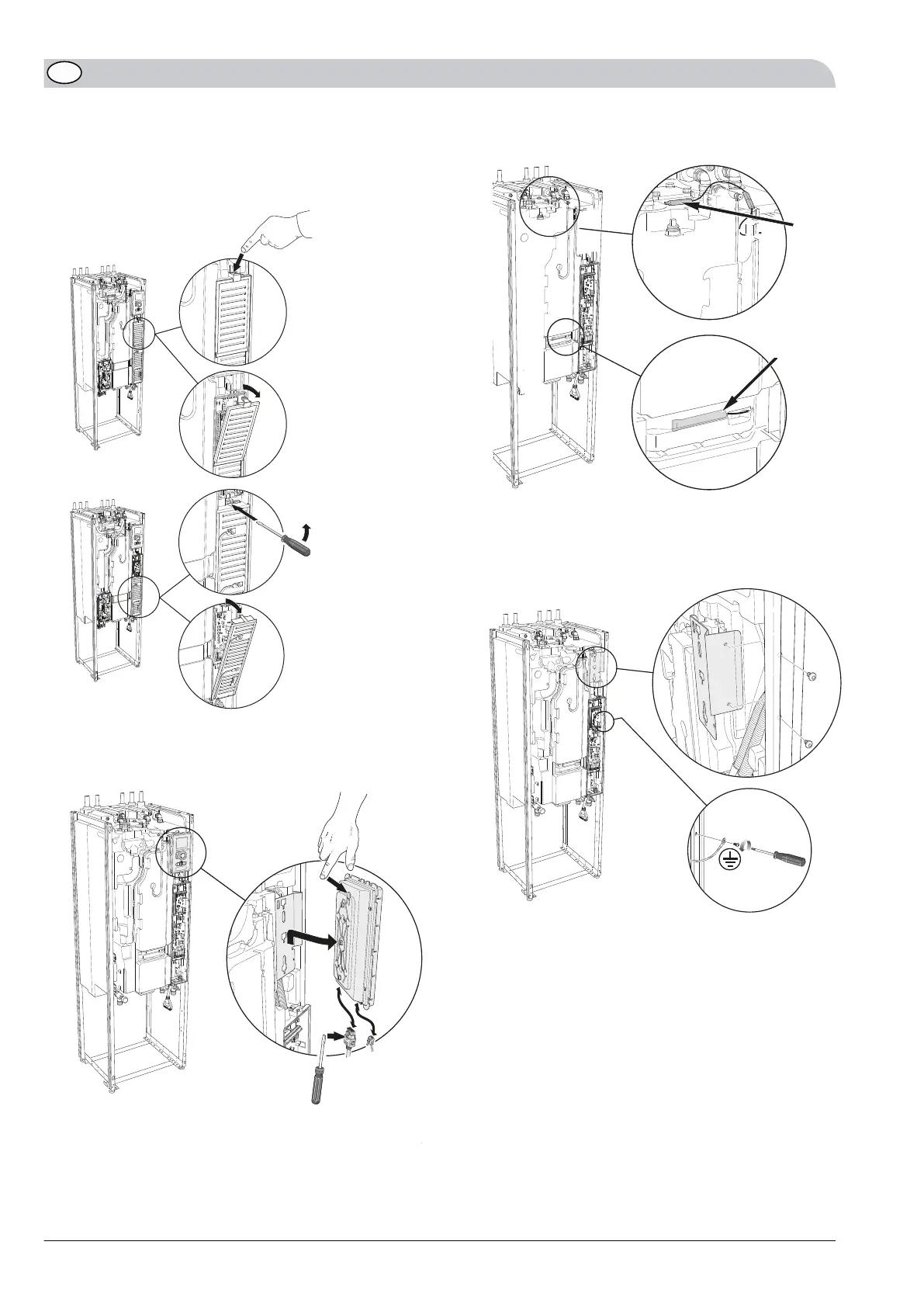

Right junction box, transferring
1.
Remove the protective cover of the junction box and
disconnect any external connections to the input card
(AA3).
LEK
1.
2.
LE
K
1.
A
B
2.
2.
Remove wiring connector(s) from the display.
3.
Disconnect/remove the display. Press the top catch
on the reverse side of the display and lift the display
slightly.
LEK
A
B
C
4.
Pull out the sensor (A, B) and release the wiring.
4.7?
4.??
A
B
5.
Remove the panel mounting for the display (two
screws in the stand frame).
6.
Disconnect/remove the junction box ground cable.
(Secured with a screw in the stand frame.)
LEK
NIBE F1245/F125518
GB

Nibe F1245 Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Dimensions (HxWxD)	1800 x 600 x 620 mm
Energy Efficiency Class Heating 35°C	A++
Energy Efficiency Class Heating 55°C	A++
Heating Capacity	5-12 kW
COP Heating	4.5
Integrated Hot Water Tank	180 liters
Power Input Heating	1.0 - 3.0 kW
