Nibe F1245 Service Instructions

12.

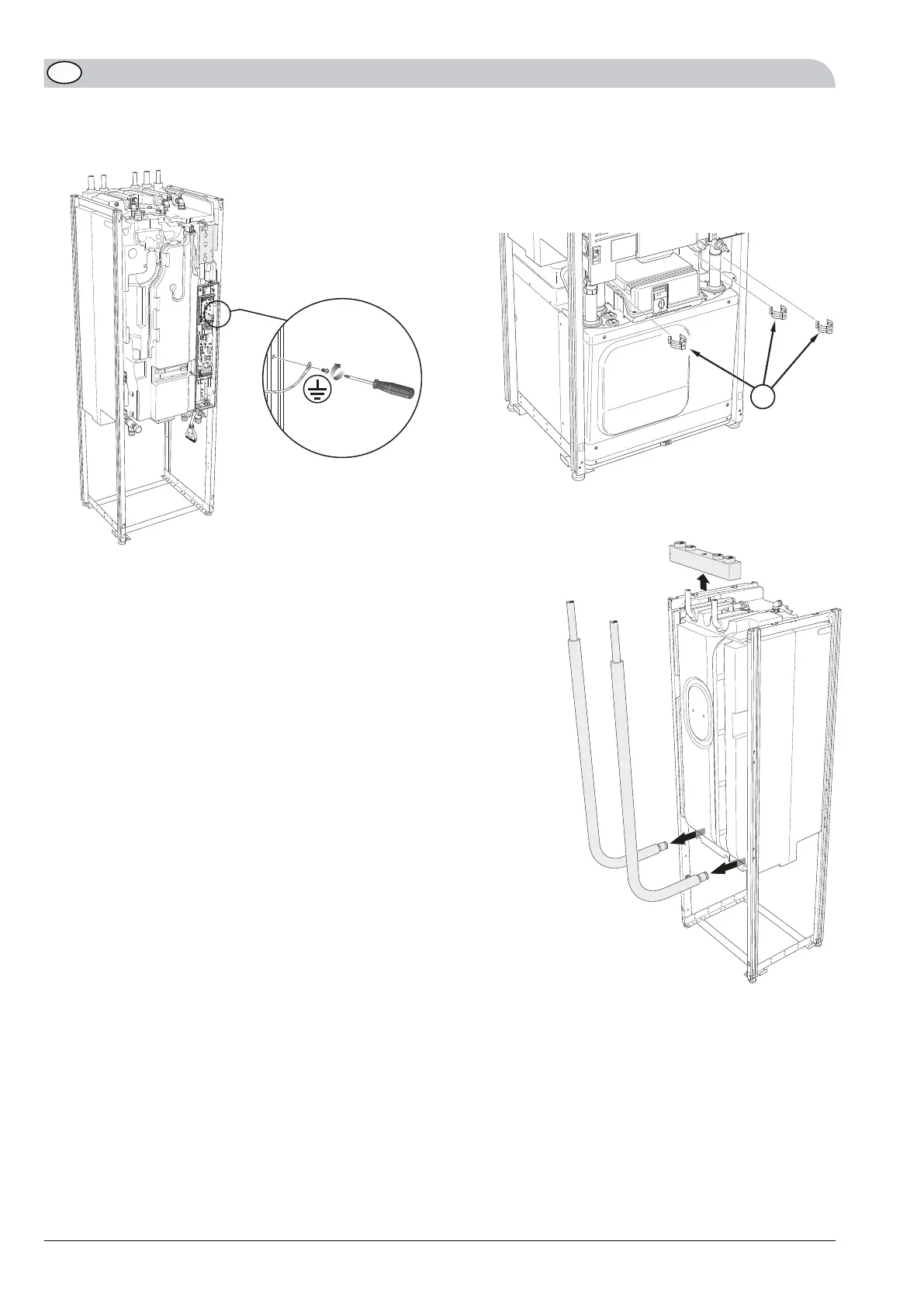

Secure the junction box in the quick release mountings
and the ground cable in the stand frame.
LE
K
13.
Install the panel mounting for the display (two screws)
on the new unit.
14.
Install the display and connect the wiring connector(s)
to the display.
Cooling module and heating/brine pipes,
transferring
1.
Remove the upper securing plate from the shut off
valves (QM32, QM33, QM34) and separate the connec-
tions.
LE
K
1
2.
Remove the brine pipes from behind and put them
aside.
L
E
K
NIBE F1245/F125520
GB

Nibe F1245 Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Dimensions (HxWxD)	1800 x 600 x 620 mm
Energy Efficiency Class Heating 35°C	A++
Energy Efficiency Class Heating 55°C	A++
Heating Capacity	5-12 kW
COP Heating	4.5
Integrated Hot Water Tank	180 liters
Power Input Heating	1.0 - 3.0 kW
