2.

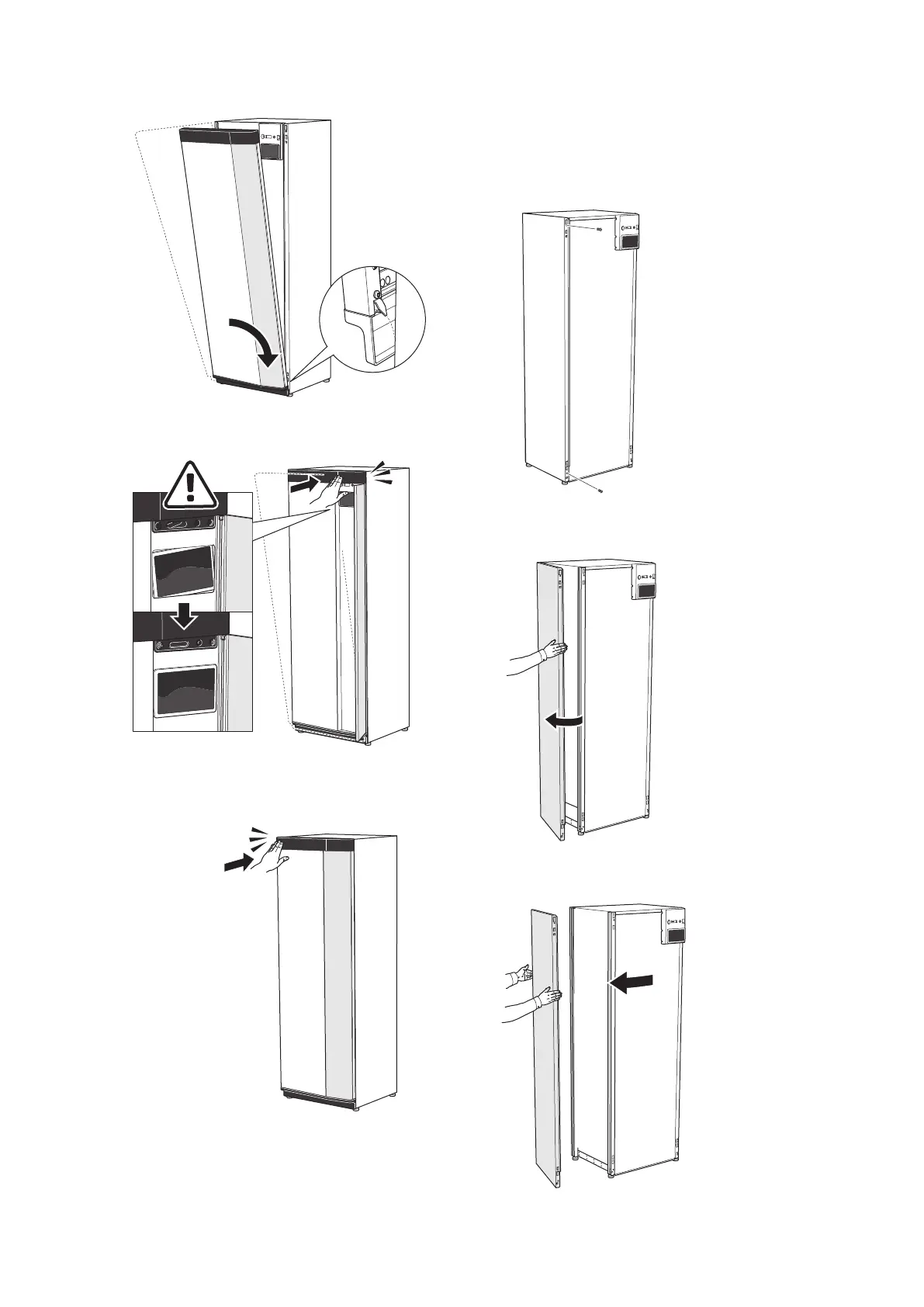

Hook the other corner in place.
3.
Check the display is straight. Adjust if necessary.
4.
Press the top of the front section against the frame
and screw it into place.
REMOVE SIDE PANEL
The side panels can be removed to facilitate the install-
ation.
1.
Remove the screws from the upper and lower
edges.
U
N
2.
Twist the panel slightly outwards.
UN
3.
Move the panel outwards and backwards.
UN
NIBE S1255Chapter 2 | Delivery and handling8

Nibe S1255-6 Specifications

General

Model	S1255-6
Output	6 kW
Power Input Heating	1.5 kW
Refrigerant	R410A
Dimensions (HxWxD)	1800x600x620 mm
Energy efficiency class heating 35°C	A+++
Type	Heat Pump
COP Heating	5.8 (at A7/W35 according to EN14511)
Integrated hot water tank	180 liters
Energy efficiency class	A++
