Nibe SPLIT ACVM270 - Page 23

Xylem, Laing and Lowara (2009 - 2014)

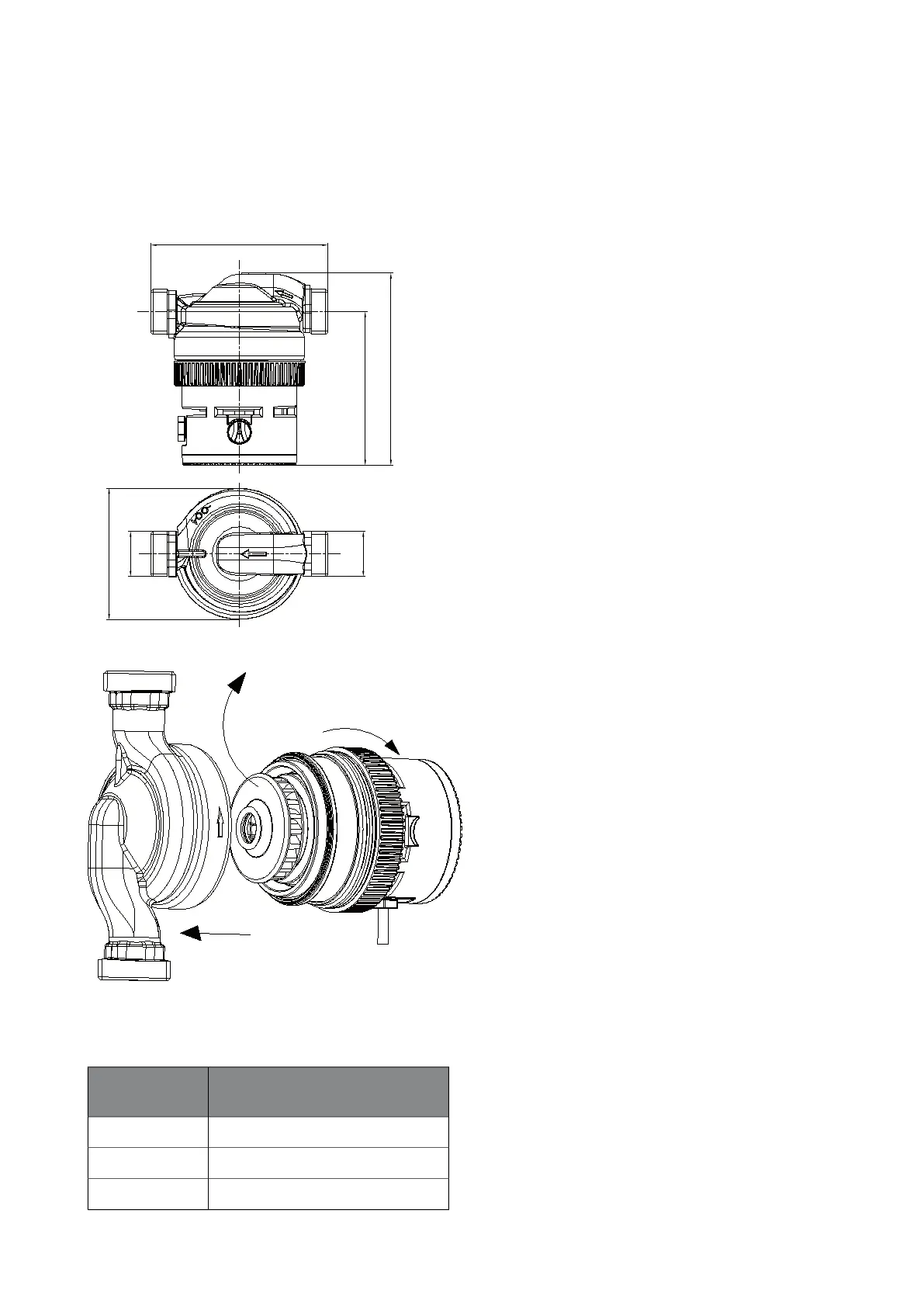

Dimensions
130
113
141
96
G1”
G1”
Disassembly



Control signal:
The control signal is a direct current voltage to the pump.
Depending on which instrument is used to measure the
voltage, there can be deviations from these values.
Voltage, control signal (direct cur-
rent) [V]
Capacity [%]
0 V DC100
5 V DC50
10 V DC1
23Chapter 4 | Component descriptionNIBE SPLIT ACVM270
