9VEDEX 3300
For the Installer
General information for the installer
LEK
98
E
C
B
F
D
A

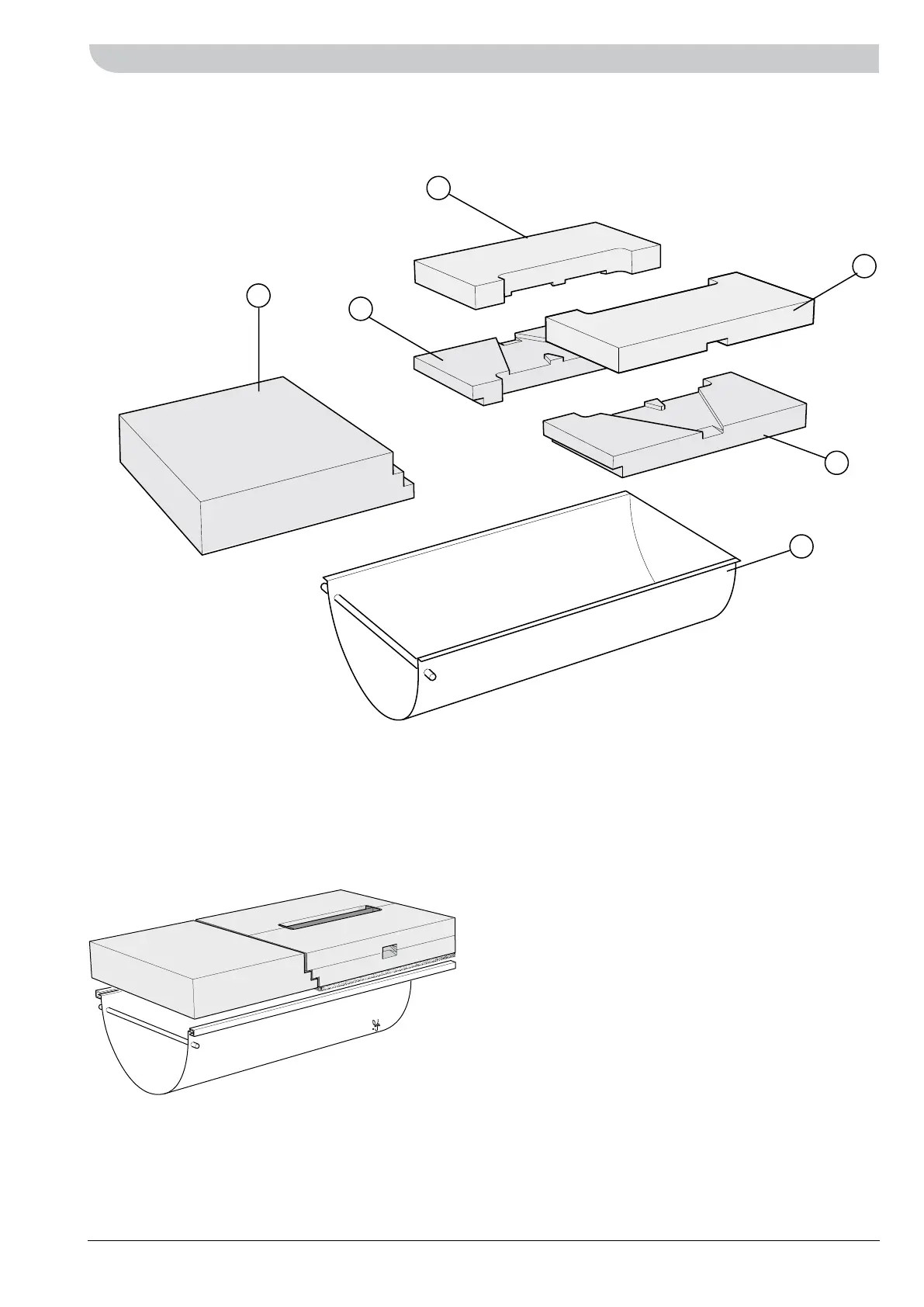

Installing ceramics
Pre-installed ceramic kit Ceramic grate
Place the ceramic inserts in through the filler door. First
position the front stone (B). Then position the rear stones
(C) and (D) followed by stones (E) and (F).
Flame trough
Open the combustion chamber door. Slide in the flame
trough (A) on its guides under the ceramic grate.
NOTE! The trough must be slid all the way into the cham-
ber.
