Nibe VVM 500 Service Manual

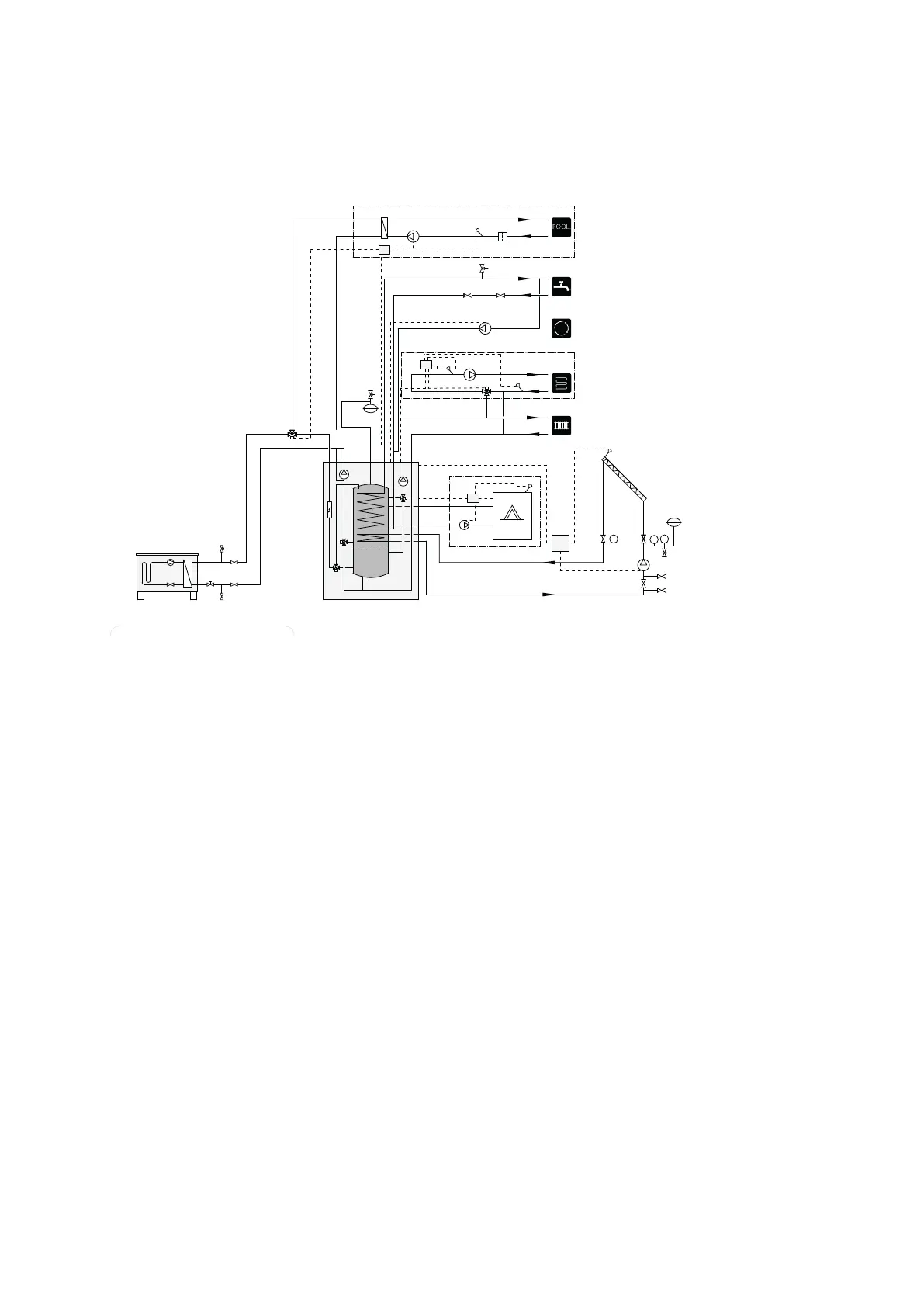

System diagram
-FL2
-CM1
-EB15
-EP30
-EP30-BT53
-EP8
-AA25
-CM5
-GP4
-QM45
-RM3
-QM43
-QM44
T P
-FL4
-RM4
T
-GP30
-FL1
-QM40-RM1
-GP20
-BT3
-BT2
-QN25
-EP21
-AA25
-GP9
-BT52
-EM1
-AA25
-EM1
-GP15
-EB101
-GP9
-BT51
-HQ4
-EP5
-AA25
-CL11
-CL11-QN19
Climate systemEP 21Accessory cardAA 5
Solar kit SCA 30EP 30Control unitAA 25
Safety valve, climate systemFL 2Temperature sensors, heating medium flowBT 2
Safety valve, solarFL 4Temperature sensors, heating medium returnBT 3
Circulation pump, solarGP 4Temperature sensor, poolBT 51
Circulation pump, poolGP 9Temperature sensor, boilerBT 52
Circulation pump, external heat sourceGP 15Temperature sensor, solar panelBT 53
Circulation pumpGP 20Pool kit POOL 500CL 11
Pump station SPS 10, SPS 20GP 30Expansion vessel, heating mediumCM 1
Particle filterHQ 4Expansion vessel, solarCM 5
Shut-off valveQM 4XVVM 500EB 15
Shunt valveQN 11F20XX/F2300EB 100
Three way valve, poolQN 19Oil, gas, or electric boilerEM 1
Non-return valveRM XExchanger, poolEP 5
Solar panelEP 8
NIBE™ VVM 500Chapter 3 | System description8

Nibe VVM 500 Specifications

General

Type	Indoor module
Volume	500 liters
Integrated immersion heater	Yes
Energy efficiency class, DHW preparation	A
Compatible with	NIBE air/water heat pumps
Refrigerant	Not applicable
Cooling Capacity	Matches the heat pump it is connected to.
