Nibe VVM 500 Service Manual

Basic

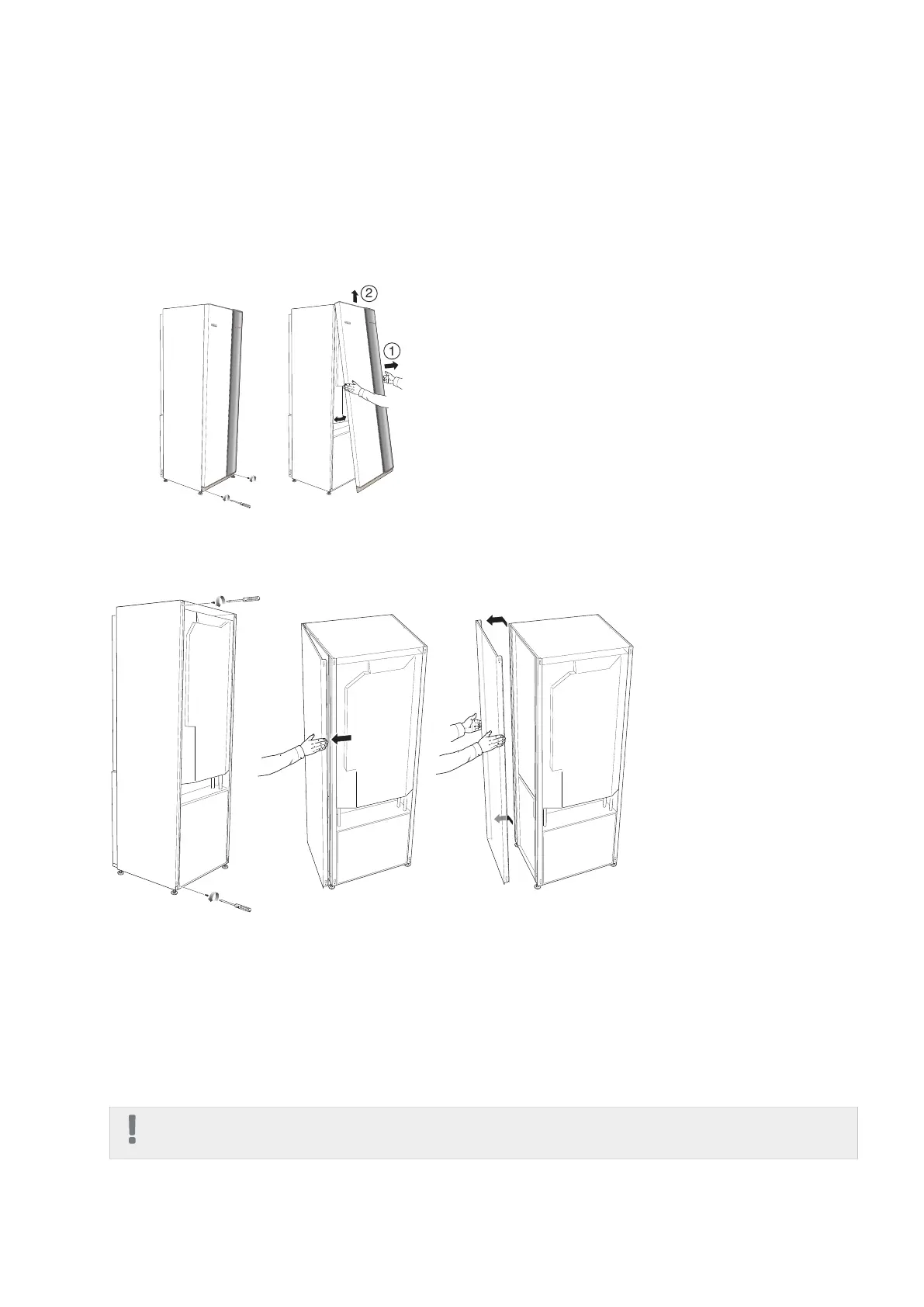

Removing the covers
Front cover
1
2
LEK
LEK
LEK
LEK
LEK
1.
Remove the screws from the lower edge of the front cover.
2.
Lift the cover out at the bottom edge and up.
Side covers
LEK
LEK
LEK
The side covers can be removed to facilitate the installation.
1.
Remove the screws from the upper and lower edges.
2.
Twist the cover slightly outward.
3.
Move the hatch backwards and slightly to the side.
4.
Pull the cover to one side.
5.
Pull the hatch forwards.
Accessibility, electrical connection
The plastic cap of the electrical boxes is opened using a screwdriver.
NOTE
The cover for the input card is opened without a tool.
NIBE™ VVM 500Chapter 7 | Component replacement30
7 Component replacement

Nibe VVM 500 Specifications

General

Type	Indoor module
Volume	500 liters
Integrated immersion heater	Yes
Energy efficiency class, DHW preparation	A
Compatible with	NIBE air/water heat pumps
Refrigerant	Not applicable
Cooling Capacity	Matches the heat pump it is connected to.
