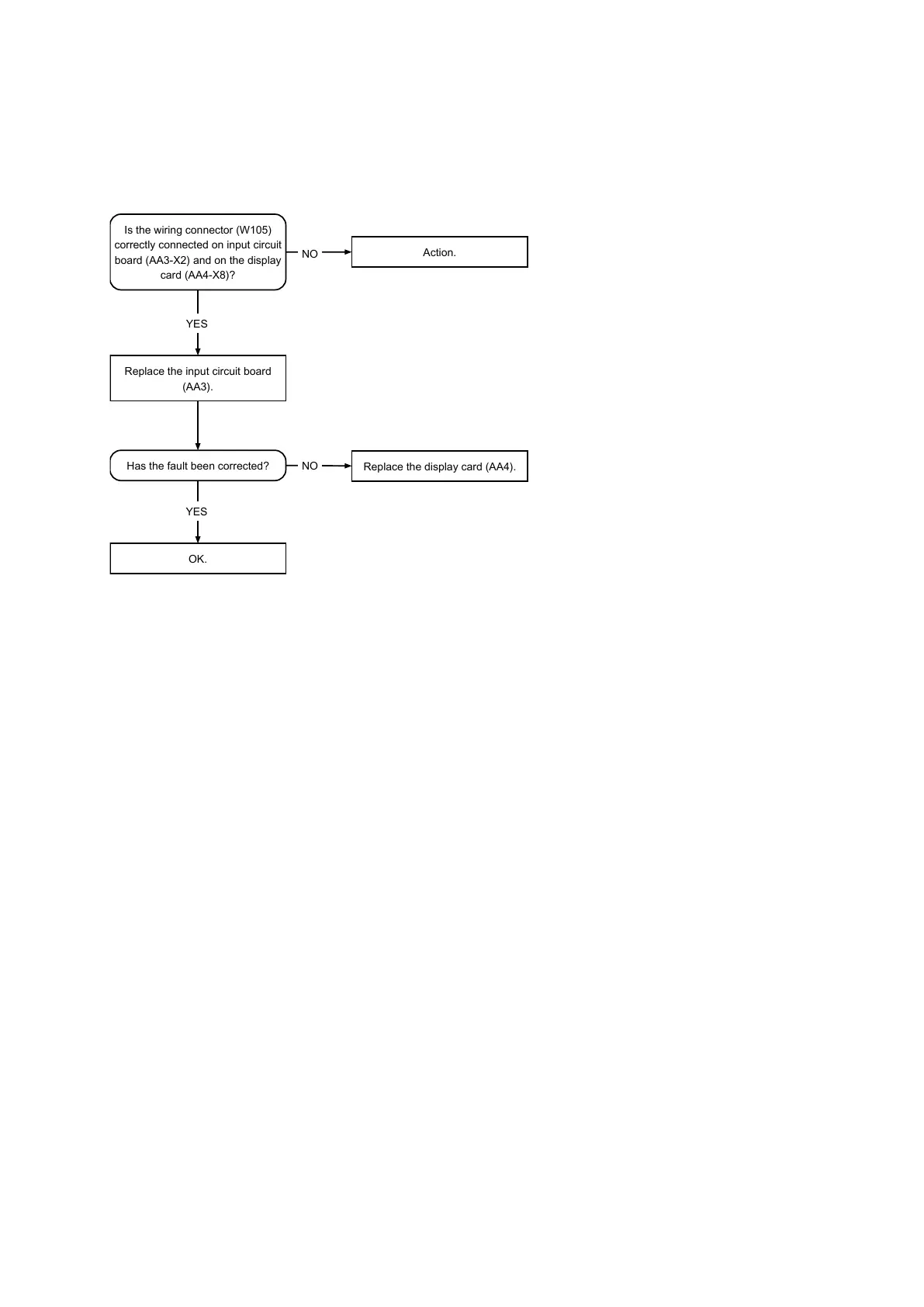

Alarm
70
-
perm.
com.error
input
card
Is
the
wiring
connector
(W105)
correctly
connected
on
input
circuit
board
(AA3-X2)
and
on
the
display
card
(AA4-X8)?
YES
YES
Has
the
fault
been
corrected?
Replace
the
input
circuit
board
(AA3).
Replace
the
display
card
(AA4).
NO
Action.
NO
OK.
NIBE™
VVM
500
Chapter
6
|
T
roubleshooting
26
