Nice Apollo 1550ETL–1K User Manual

11

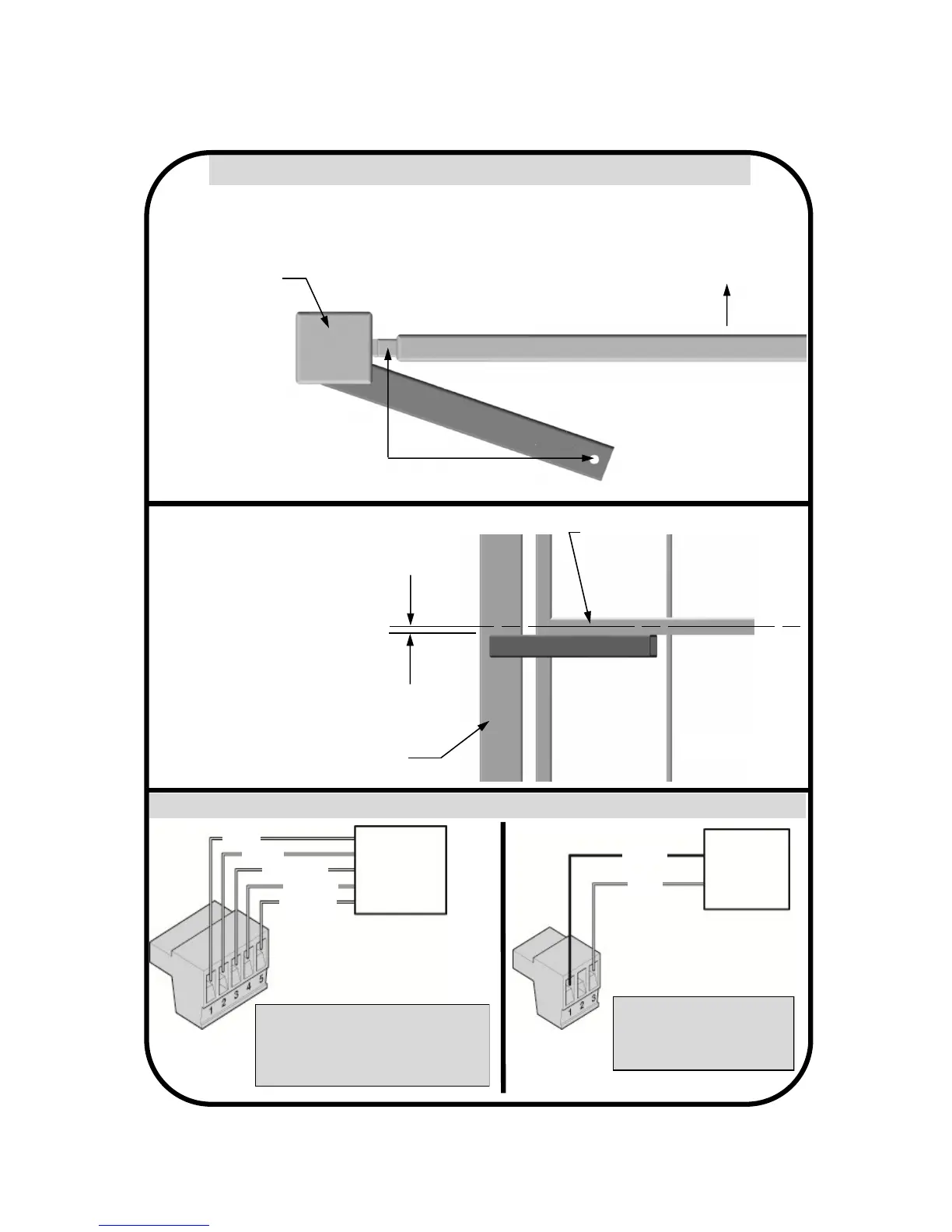

PUSH TO OPEN INSTALLATION
Both measurements are
taken from the center of the
hinge.
11”
6”
Direction of opening
Gate (closed)
Hinge post
Top View
Vertical position of
pivot arm (s)
Pivot arm must be
level
1/2”
Hinge
Center Line of attachment
point for gate bracket
Front View
Location of pivot point
2.1 - PIVOT ARM(s) INSTALLATION
2.2 - REWIRING ACTUATOR TO PUSH OPEN
Apollo
816-1K
Red and Black
motor power
Note - If gate moves in opposite
direction from what is expected,
reverse the motor power lead wir-
ing. (Red to pin 3, Black to pin 1)
Red
black
Apollo
816-1K
operator
green
orange
white
yellow
blue
white: close limit switch
orange: open limit switch
green: limit switch and motor encoder common
yellow: motor encoder signal
blue: motor encoder power (+12VDC)
Figure 11: Pivot Arm Top View
Figure 12: Pivot Arm Front View
Figure 13: Limit Switch and Sensor Wire
Figure 14: Motor Wiring
