Apollo 816 LA Linear Actuator
Installation Reference Manual
1616

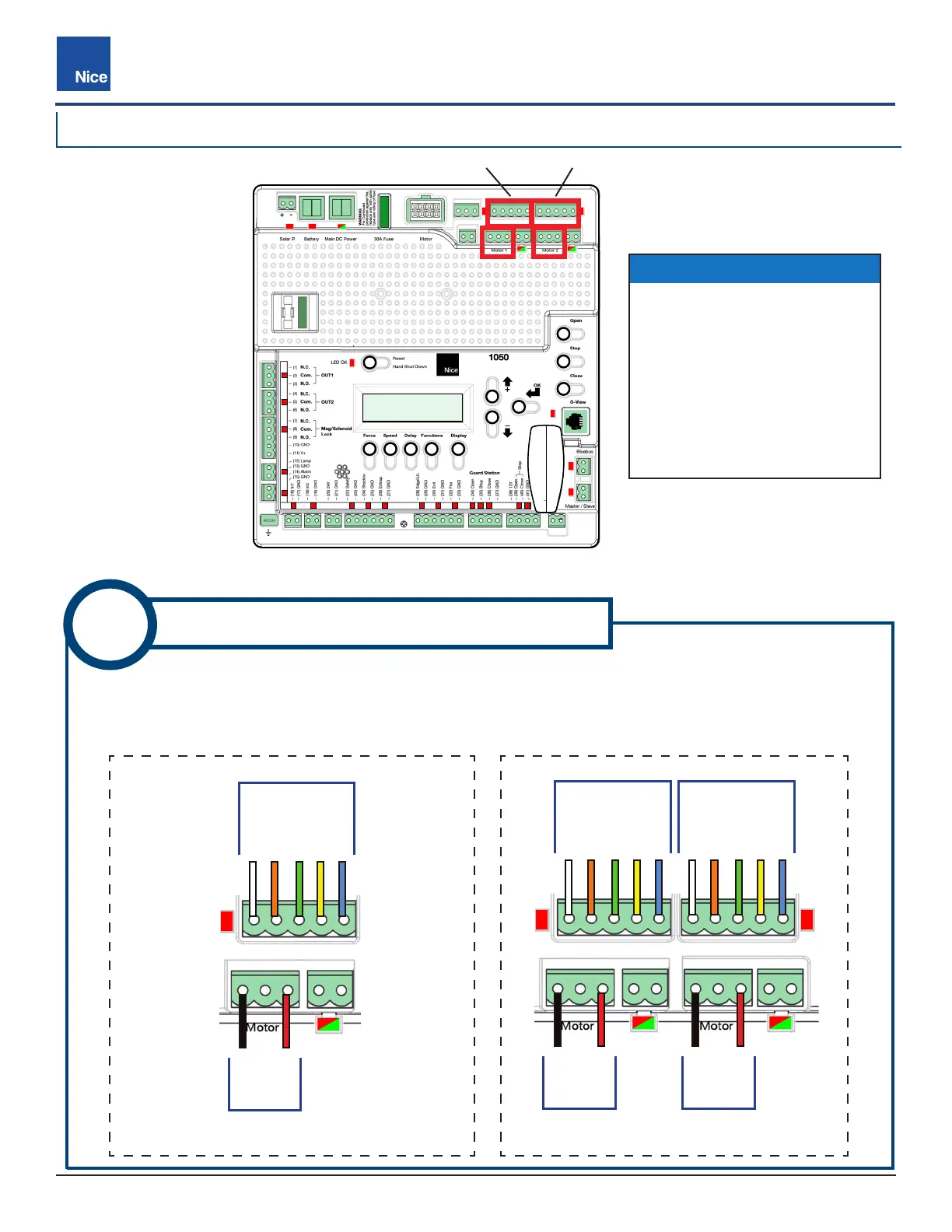

1050: PULL-TO-OPEN (SINGLE) 1050: PULL-TO-OPEN (DUAL)
9A
1050 WIRING: PULL-TO-OPEN
5.2 1050 WIRING
Fig-9: 1050 MOTOR CONNECTOR LOCATIONS
MOTOR 2
MOTOR 1
1. Locate MOTOR 1 and MOTOR 2 connectors on 1050 board per IMAGE 9.
2. If single gate, wire MOTOR 1 as shown.
3. If dual gate, wire MOTOR 1 and MOTOR 2 as shown.
MOTOR 1
MOTOR 1
YELLOW GREEN
BLUE ORANGE
WHITE
BLACK
RED
MOTOR 2 MOTOR 2
BLACK BLACK
RED RED
YELLOW YELLOW GREEN GREEN
BLUE BLUE ORANGE ORANGE
WHITE WHITE
MOTOR 1 MOTOR 2
NOTICE
If a gate moves in opposite
direction from what is
expected, reverse the motor
power lead wiring (red & black
wires) for that motor.
In dual gate systems, the
longer actuator cable is usually
connoted to MOTOR 2.
