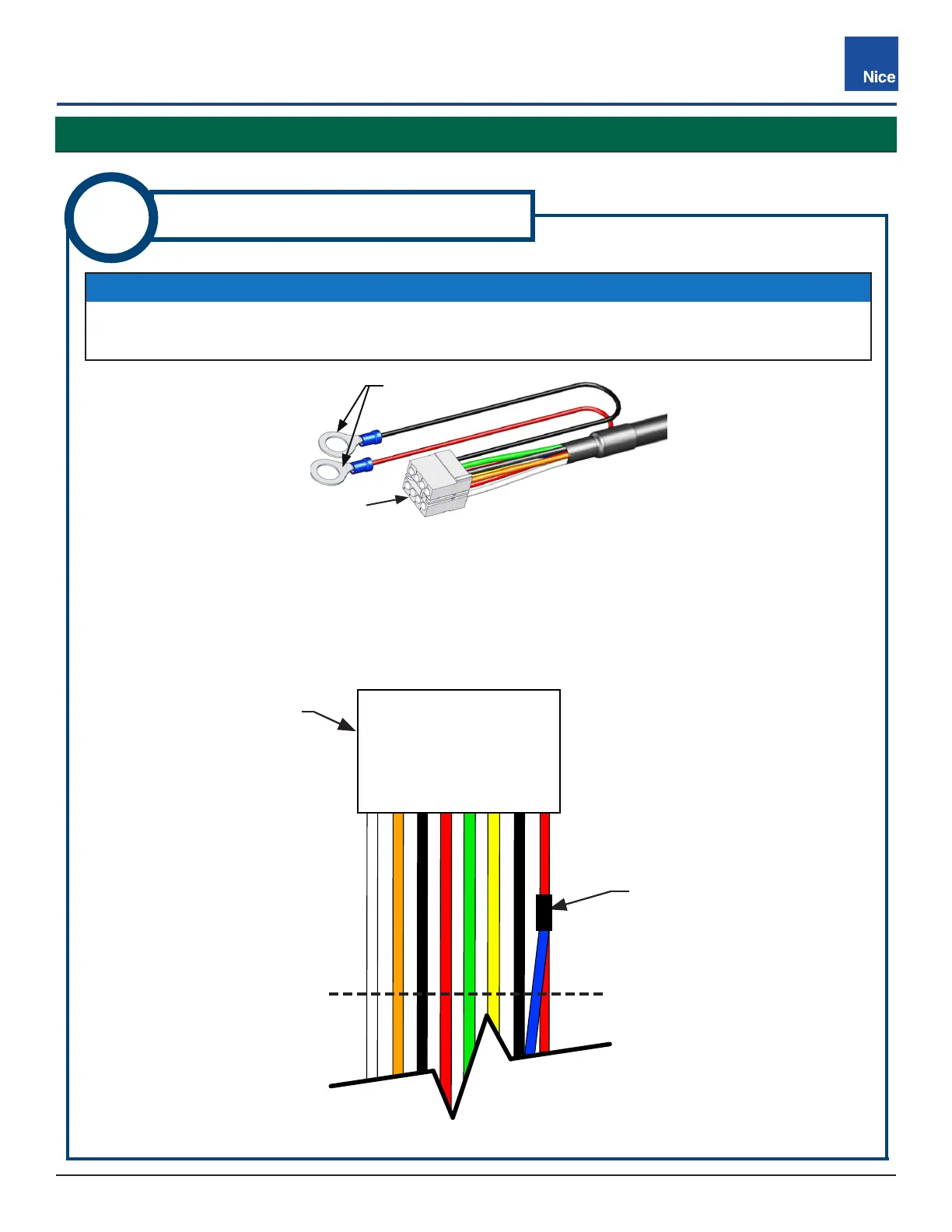

Fig-7A: 816 Existing Connector & Battery Leads
ACTUATOR CONNECTOR
BATTERY LUGS
REMOVE CONNECTOR
1. Cut o󰀨 the connector per Fig-7B.
2. Discard the connector and the red and black battery wires (with lugs).
CUT OFF HERE
8-PIN CONNECTOR
EXISTING SPLICE
SECTION 5: 816
-
CONTROLLER WIRING
8 - RED
7 - BLACK
2 - ORANGE
1 - WHITE
6 - N/C
5 - GREEN 4 - RED 3 - BLACK
Fig-7B: Existing Connector & Battery Leads
7
NOTICE
The actuator cable comes with a connector and battery lugs (Fig-7A), which must be cut o󰀨 before
wiring to the controller.
