DELTA PARAMETER SET-UP FOR 3 WIRE CONTROL (V1.00 14.6.19)

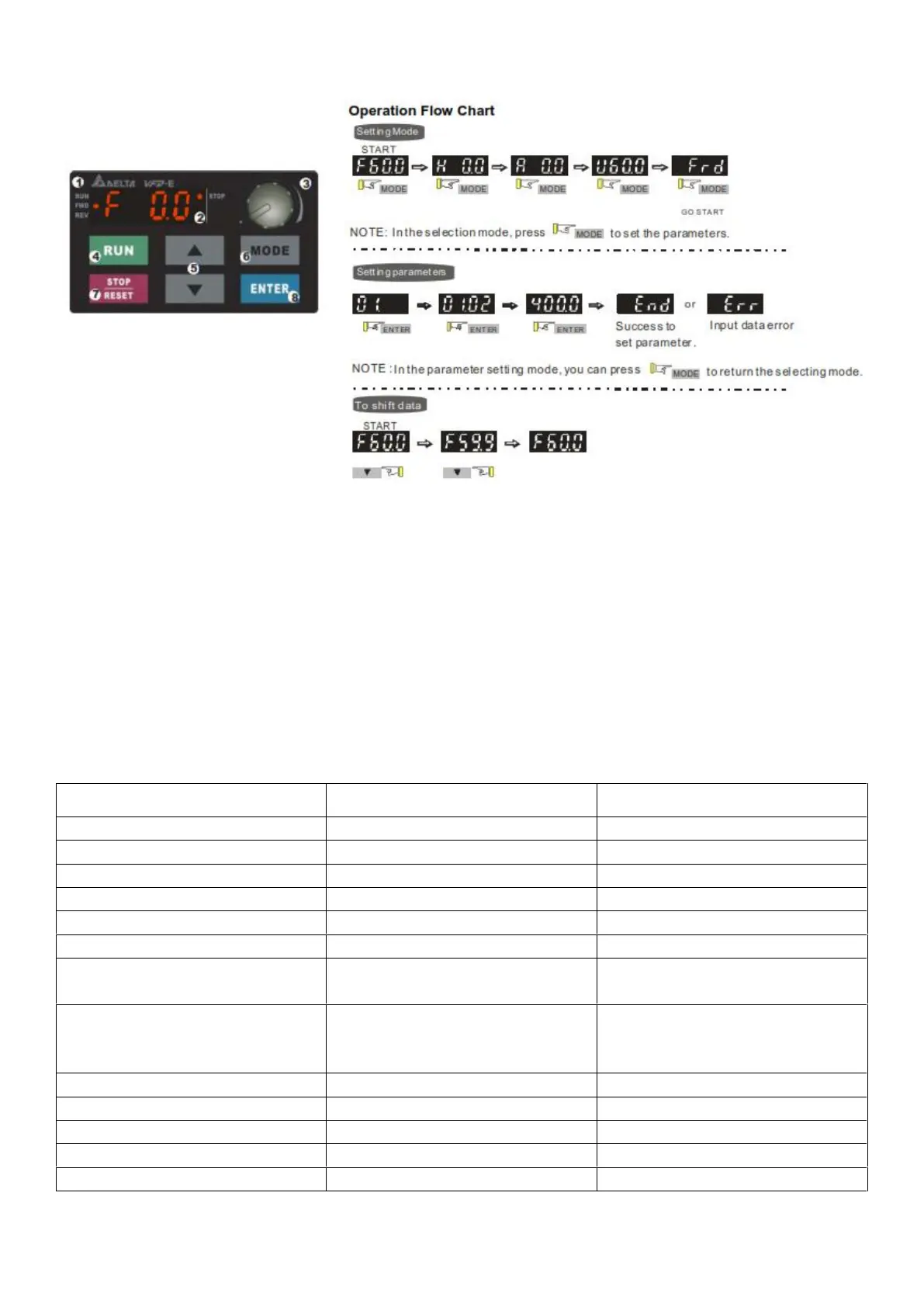

Press mode button to get to setting mode, so go to “U”.
Press enter to get into parameters, scroll to select parameter group required, press enter to select, then scroll
up to get to required parameter number. Press enter to select.
Scroll up or down to select new value, then press enter to enter new value.
Once finished, press mode to get back to main frequency screen.
Terminal MI1 Forward (open) command input
Terminal MI2 Reverse (close) command input *linked to MI3 for speed setting
Terminal MI3 Closing Speed (Multi Step speed) command input
Terminal DCM command output terminal used for common
PARAMETER NUMBER
PARAMETER DESCRIPTION
SETTING VALUE
01.00
MAX upper Frequency Hz
70.00
01.01
Supply Frequency Hz
50.00
01.02
Max output voltage
240
01.07
Output Limit %
100
01.09
Accel time
5.0
01.10
Decel time
2.5
02.00
Source of first master frequency
command (0 to +10v)
0
02.01
Source of first operation
command
(Terminals)
1
03.08
Fan Control (only when running)
2
04.05
Multi step speed command (MI3)
1
05.00
Closing speed (Multi step)
GDS450 =40hz - GDS630=30Hz
Main running frequency screen
Open speed Hz
Swing=50 - Slide=60Hz
