Nice ROX600

4 – English
3
INSTALLATION
Important! Before installing the product, refer to chapters 2 and 12 (technical specications).

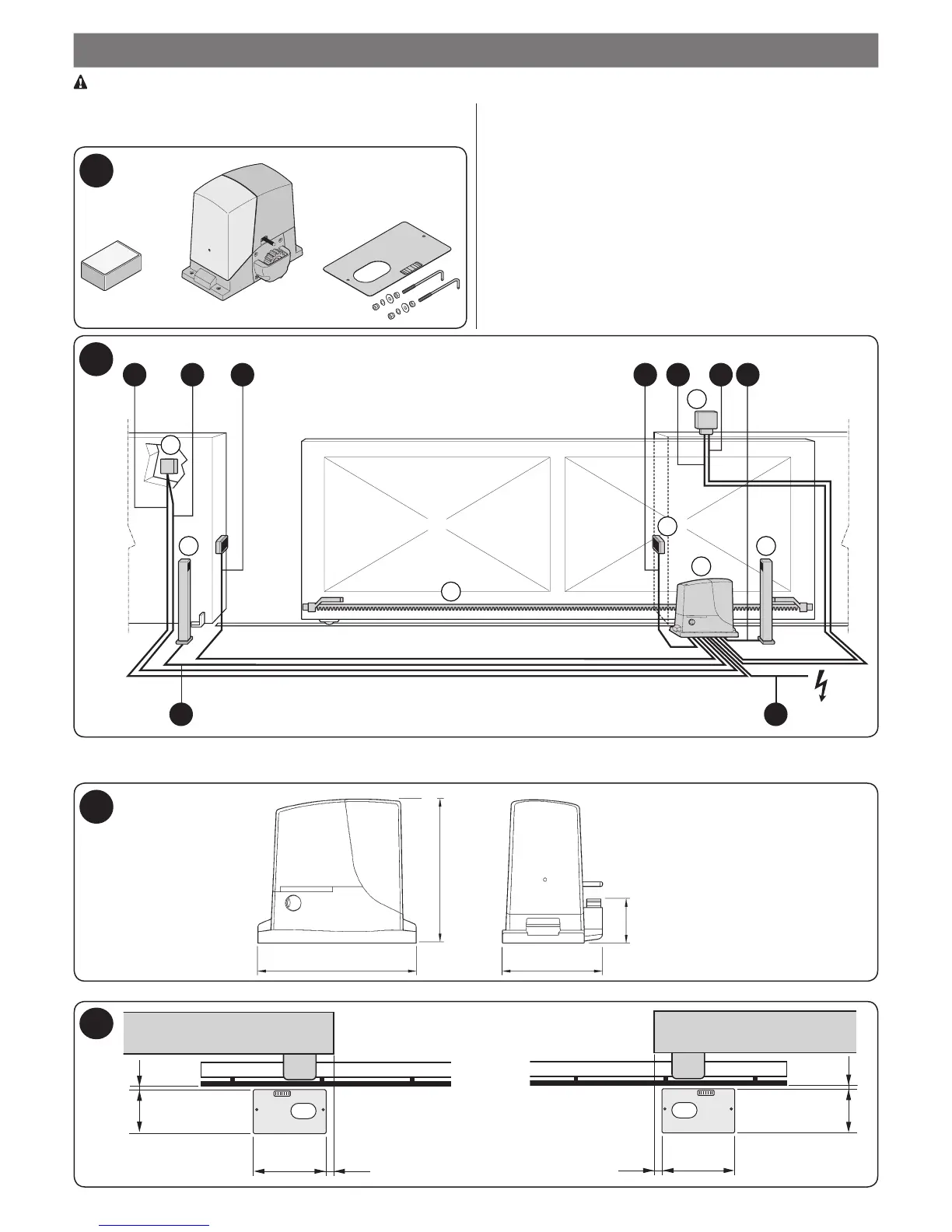

Fig. 1 shows the contents of the package: check that everything is
present and correct.
Fig. 2 shows the location of the components of a typical installation
using Nice accessories:
a - ROX gearmotor
b - photocells
c - posts for photocells
d - Key switch / digital keypad
e - asher
f - rack
1
E
a
b
f
e
c c
d
F D D
B
C D
AD
2
Before installing the system, check the gearmotor’s clearance (g. 3) and installation dimensions (g. 4):
3
330 mm
303 mm
92 mm
210 mm
4
192 mm
330 mm
0 ÷ 10
mm
0 ÷ 50 mm
192 mm
330 mm
0 ÷ 10
mm
0 ÷ 50 mm
