4.2) Install the mechanical components
After completing the preliminary installation tasks (such as digging
the routes for the electric cables or laying external ducting; possible
embedding of pipelines and other preparation work), assembly and
installation procedures can be started.
complete with all mechanical and electrical components of the Soon
gearmotor. Proceed in the order specified below.

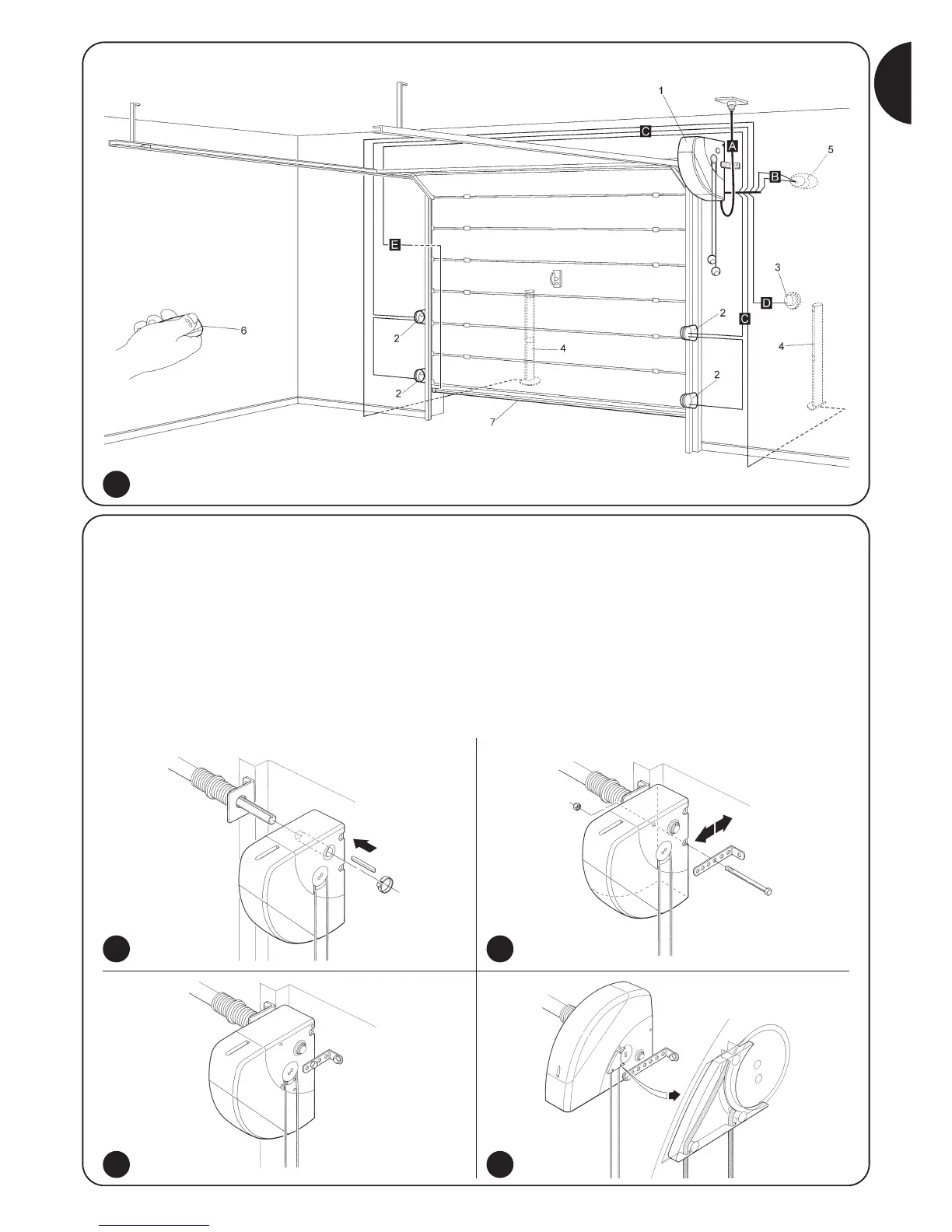

Mounting the Soon gearmotor (see Fig. 4)
1. (Fig. 4-a) Insert the Soon outlet shaft in the sectional door drive
shaft, coupling them using the keys provided in the pack.
Perform this operation with the door CLOSED.
2. (Fig. 4-b) Secure the bracket to the Soon gearmotor by means
of the screw, nut and washer supplied.
3. (Fig. 4-c) Fix the bracket to the wall by means of a plug (not sup-
plied) suited to the wall material.
4. (Fig. 4-d) The Soon gearmotor can be installed horizontally using
the special gear (supplied) which should be fixed by means of
the three screws (supplied) in the position shown in the figure,
taking care to position the release mechanism cable outlets cor-
rectly.
4a 4b
4c 4d
3
